IGN SW, Headlamp SW, DRL Module, PK Brake IND SW & Seat Belt SW
IGN SW, Headlamp SW, DRL Module, PK Brake IND SW & Seat Belt SW

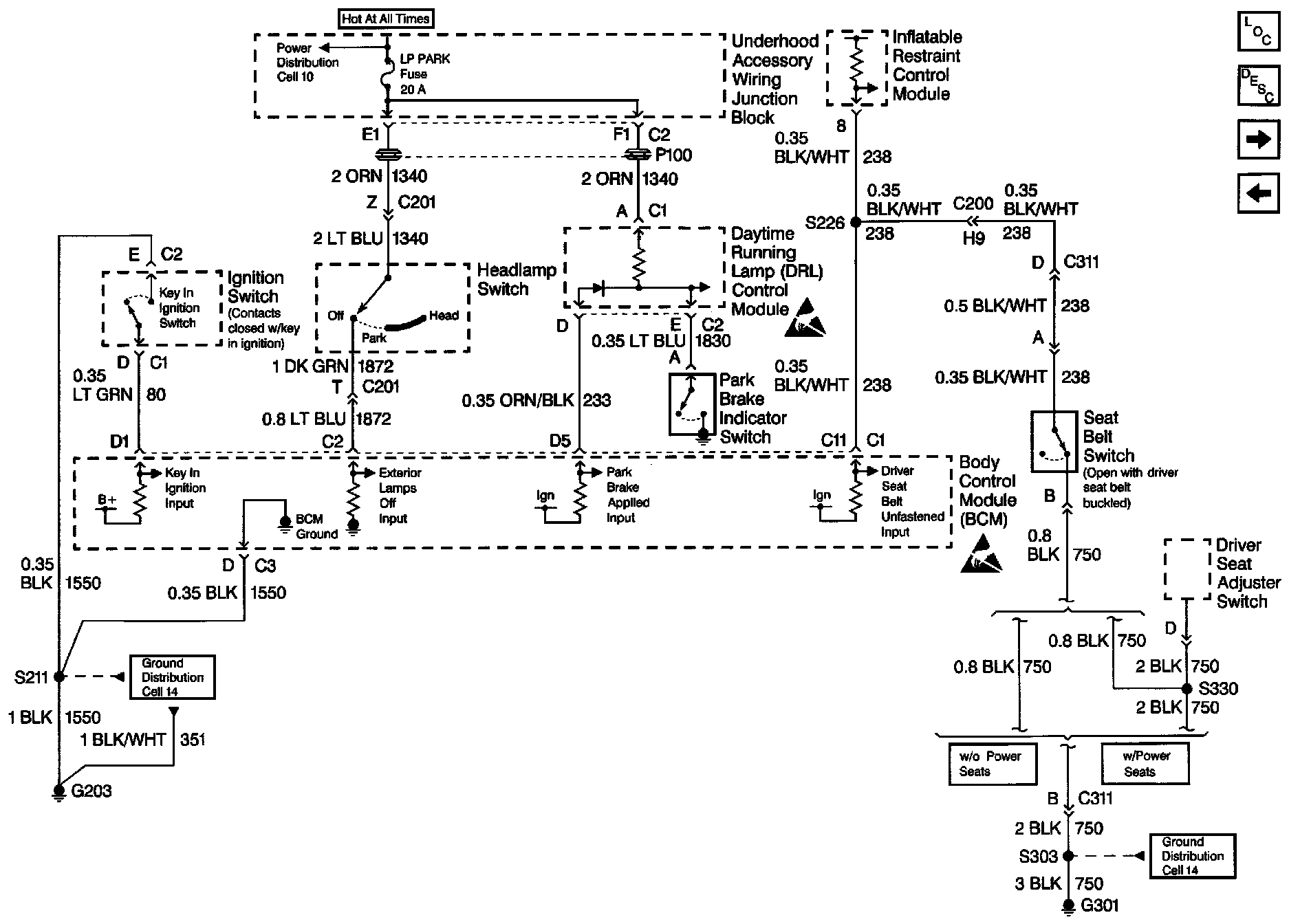

Audible Warning Schematics: Ignition Switch, Headlamp Switch, DRL Module, Park Brake Indicator Switch And Seat Belt Switch:
