Air Delivery System

HVAC Air Delivery Schematics:

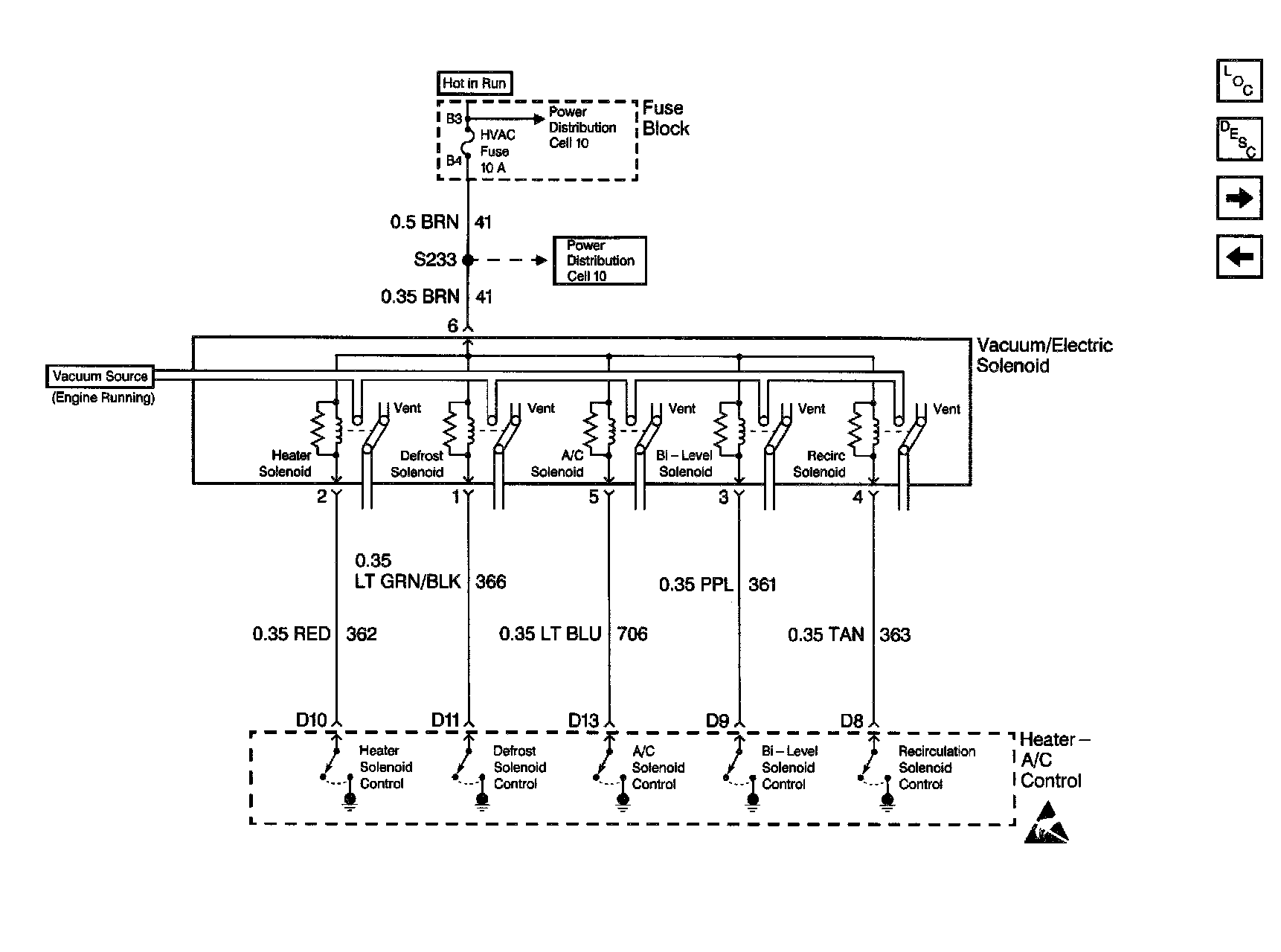

HVAC Air Delivery Schematics: Power Distribution, Heater A/C Control And Vacuum/Electric Solenoid:

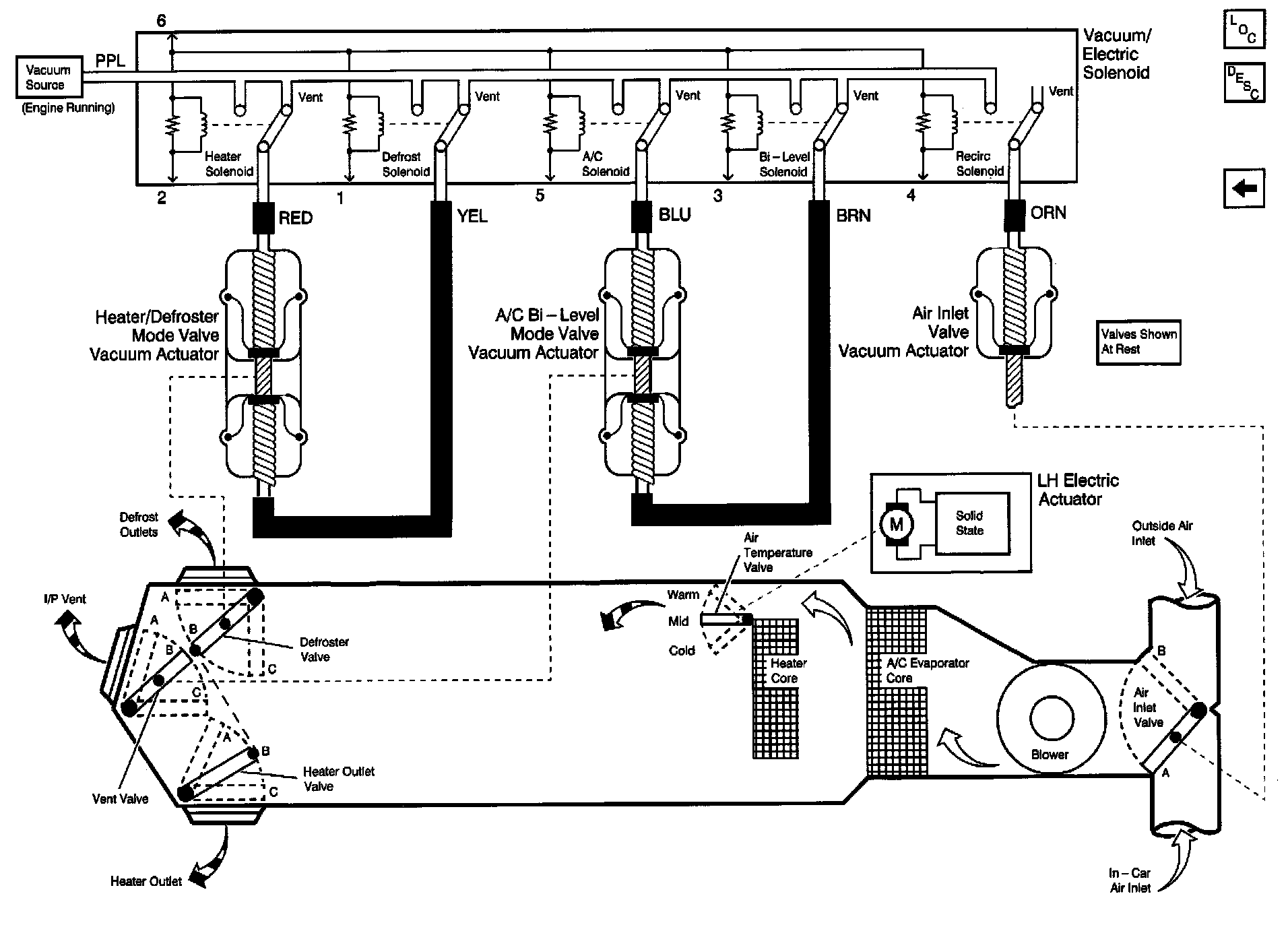

HVAC Air Delivery Schematics: Power Distribution, Heater A/C Control And Vacuum/Electric Solenoid:
