HVAC System - Automatic
>>
HVAC Air Delivery Schematics
>>
PWR & GRD Distribution, HTR-A/C CNTRL, Serial Data & SEN Inputs
PWR & GRD Distribution, HTR-A/C CNTRL, Serial Data & SEN Inputs

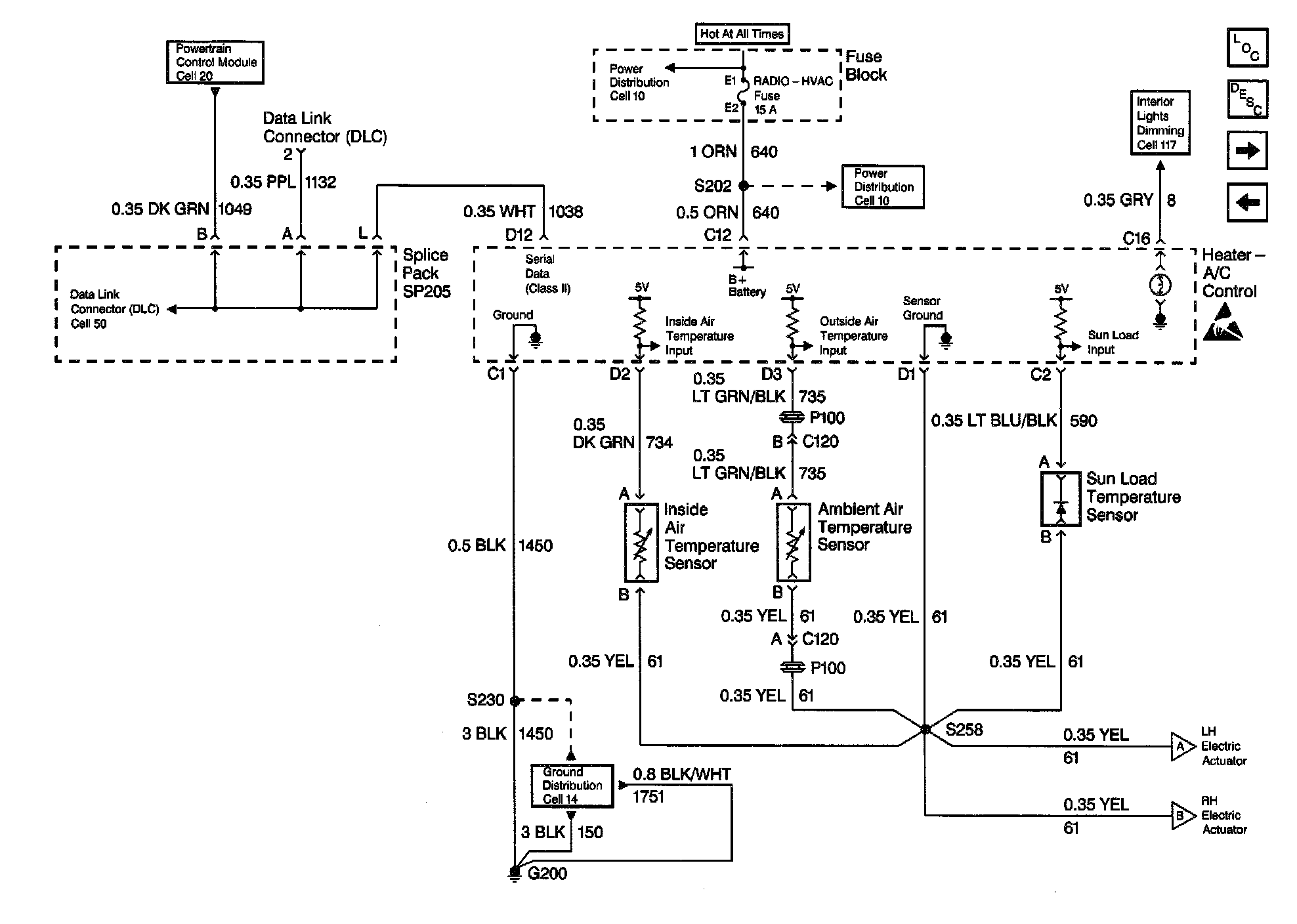

HVAC Air Delivery Schematics: Power Distribution, Ground Distribution, Heater-A/C Control, Serial Data And Sensor Inputs:
