Cruise Control
>>
Power, Ground, Steering Wheel Control and Stop Lamp Switch
Power, Ground, Steering Wheel Control and Stop Lamp Switch

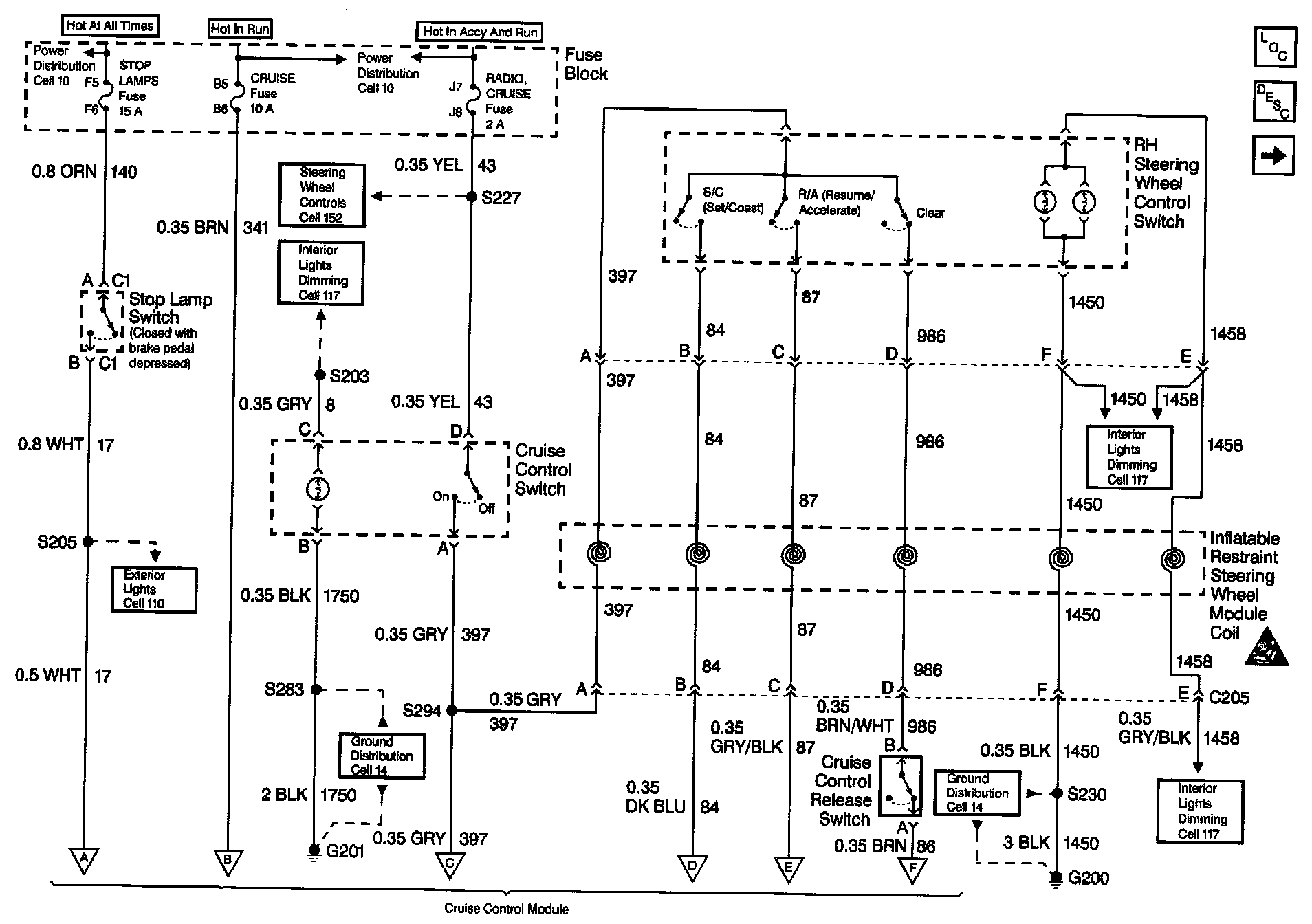

Cruise Control Schematics: Power, Ground, Steering Wheel Control And Stop Lamp Switch:
