C450

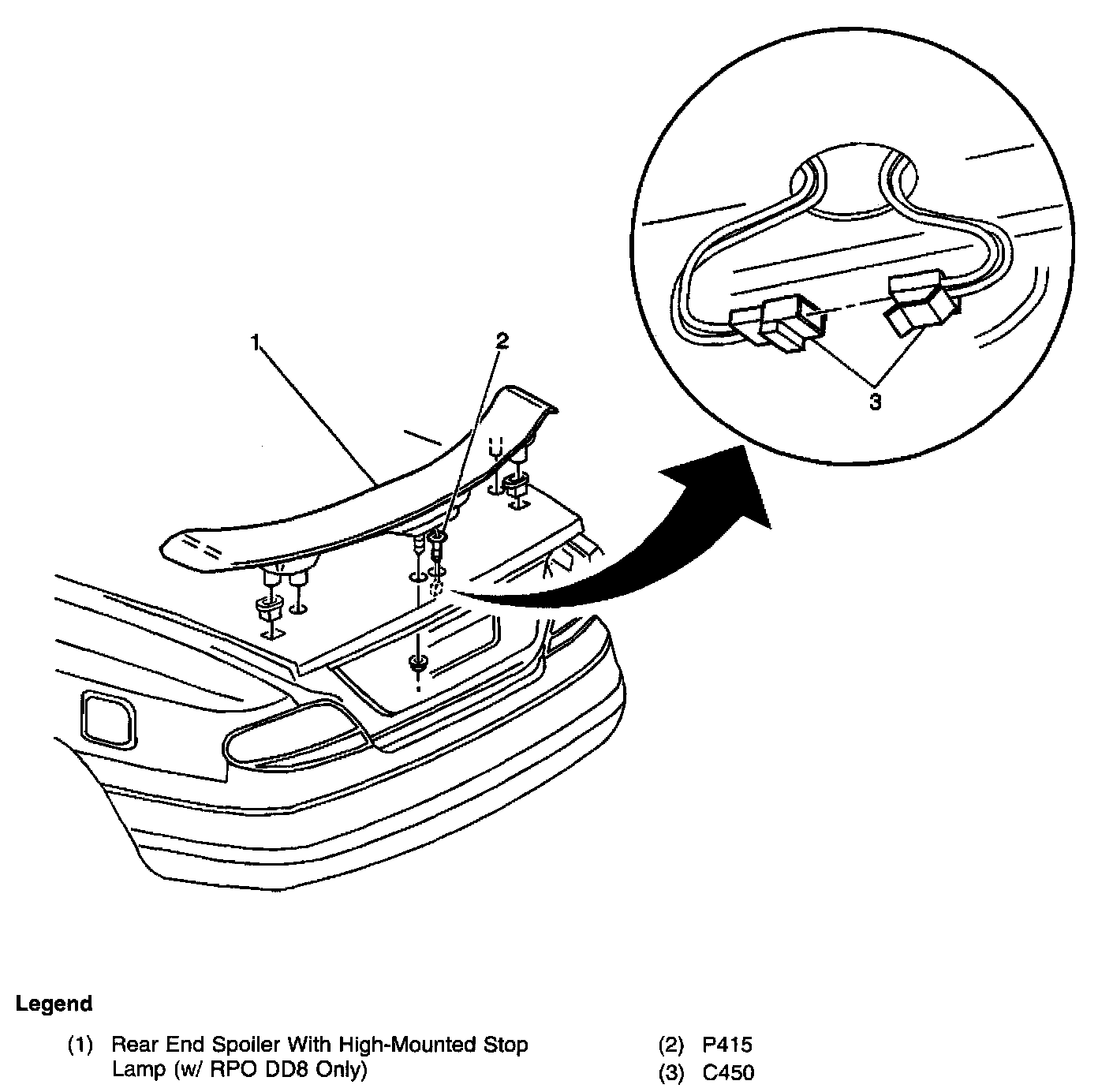

C450 - Rear Of Vehicle:




C450 - Rear Of Vehicle:





Rear compartment lid wiring harness to spoiler-mounted center high-mounted stop lamp (CHMSL) (W/ RPO D81 Only)
