Home >> Oldsmobile >> 1999 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors By Number >> C400 - C499 >> C401 (In-Line to LH Tail Lamp)

C401 (In-Line to LH Tail Lamp)

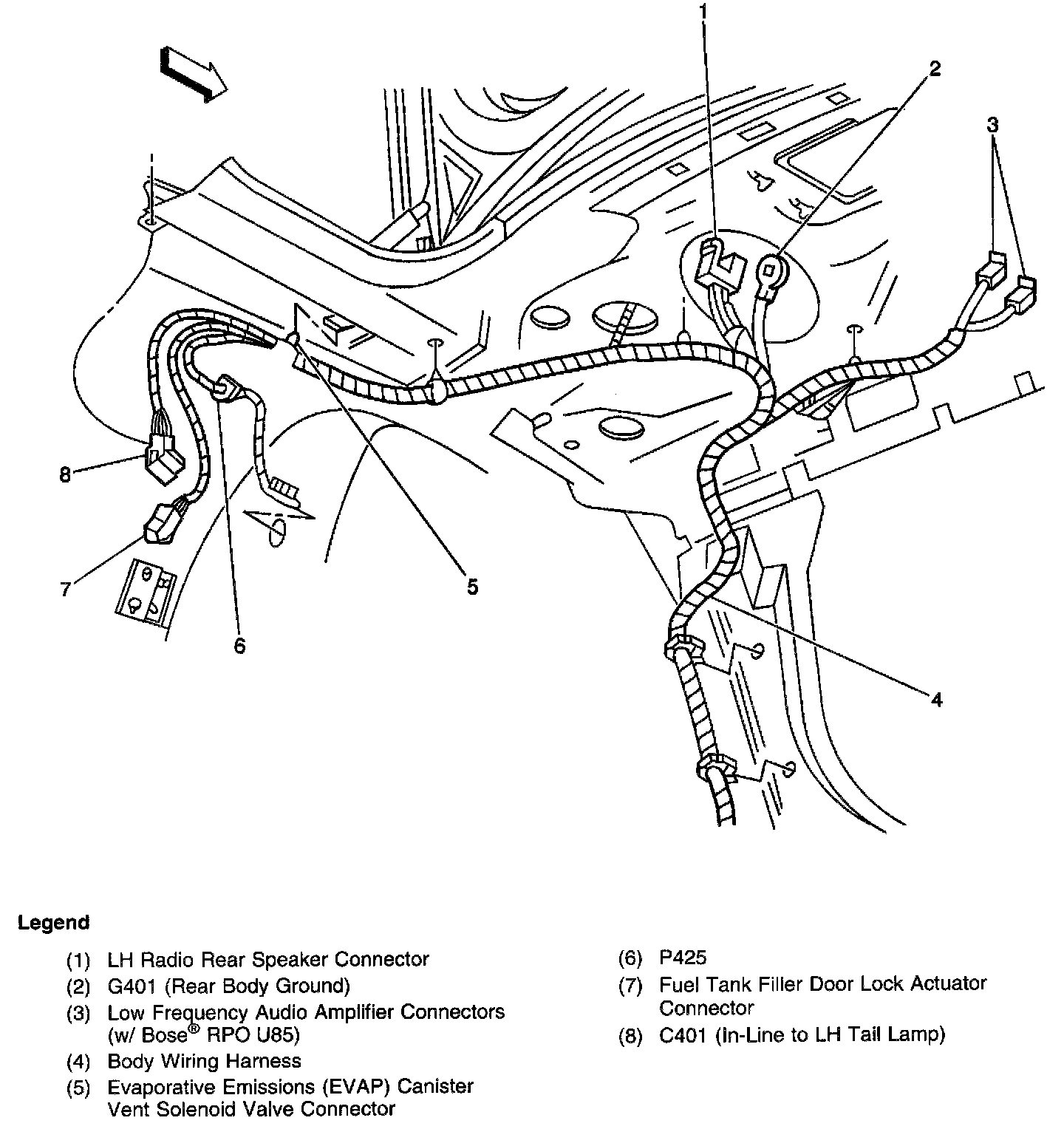

C401, G410 - LH Side Of Rear Compartment:
