Home >> Oldsmobile >> 1999 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Locks >> System Diagram >> Front >> Door Lock, Right Front, C2 (Actuator Motor)

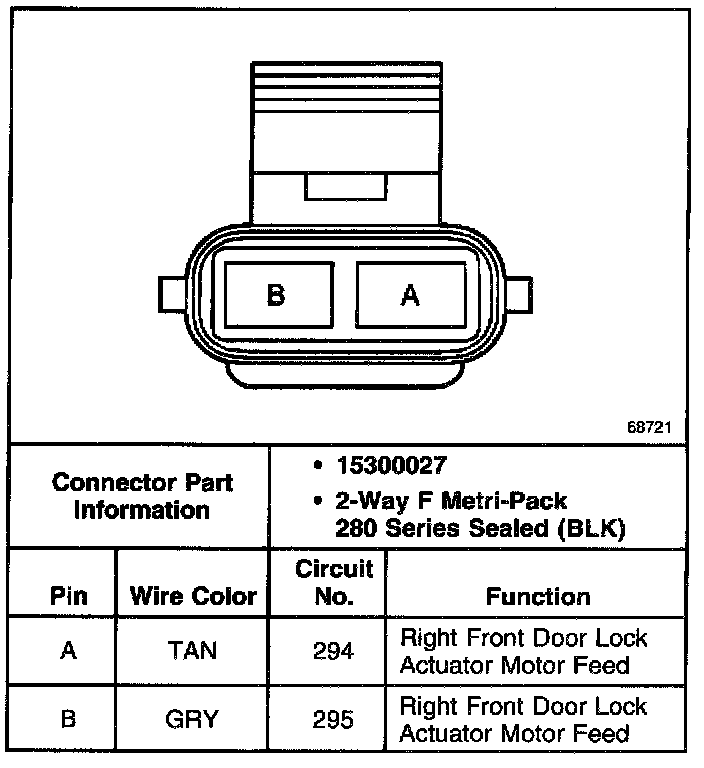

Door Lock, Right Front, C2 (Actuator Motor)

Door Lock, Right Front, C2 (Actuator Motor):
