Oil Level Switch/Sensor 1
Oil Level Switch/Sensor 1

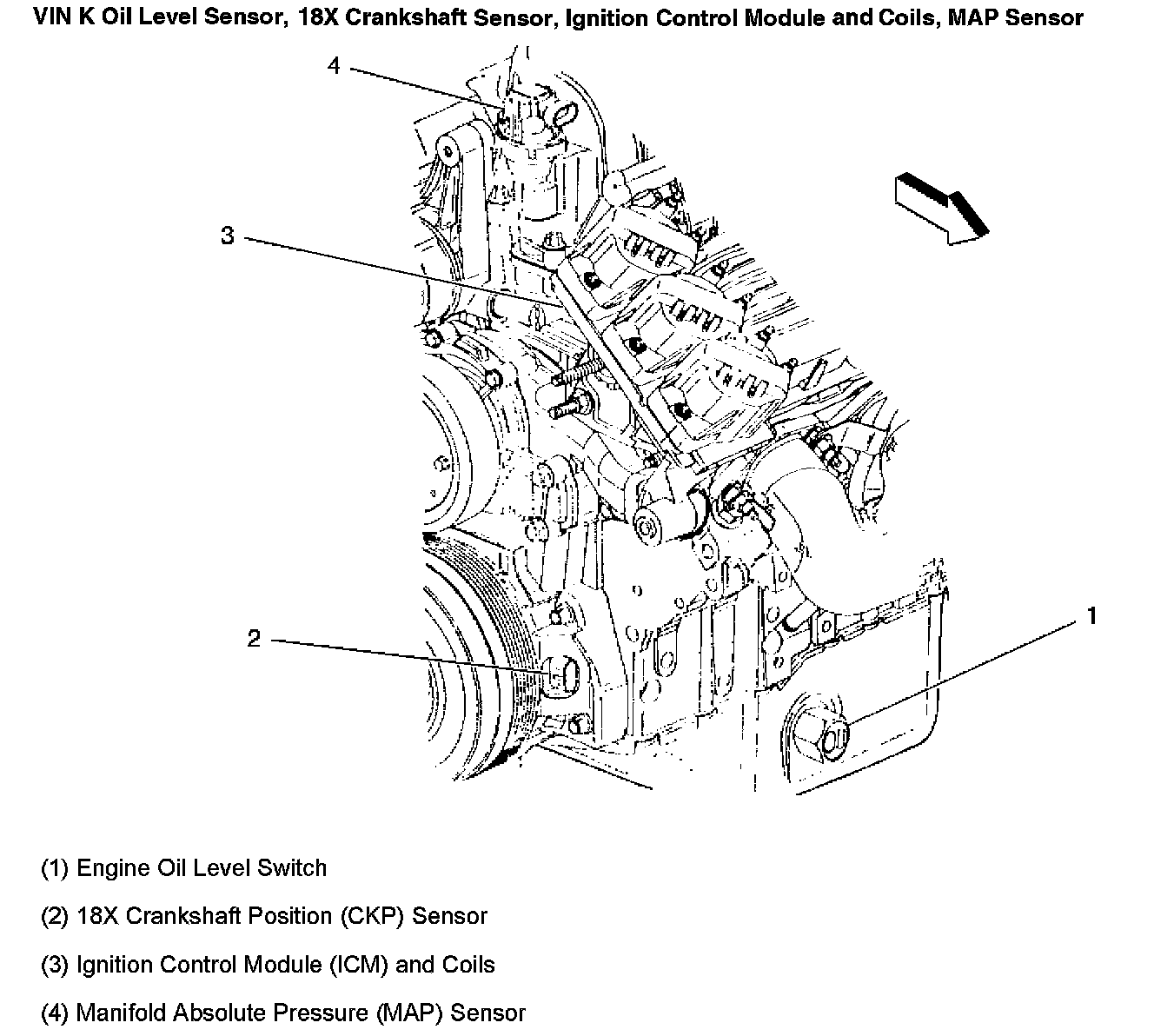

Oil Level Sensor, 18X Crankshaft Sensor, Ignition Control Module And Coils, MAP Sensor:
