Home >> Oldsmobile >> 1999 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Components >> Sensors >> Knock Sensor (Bank 1)

Knock Sensor (Bank 1)

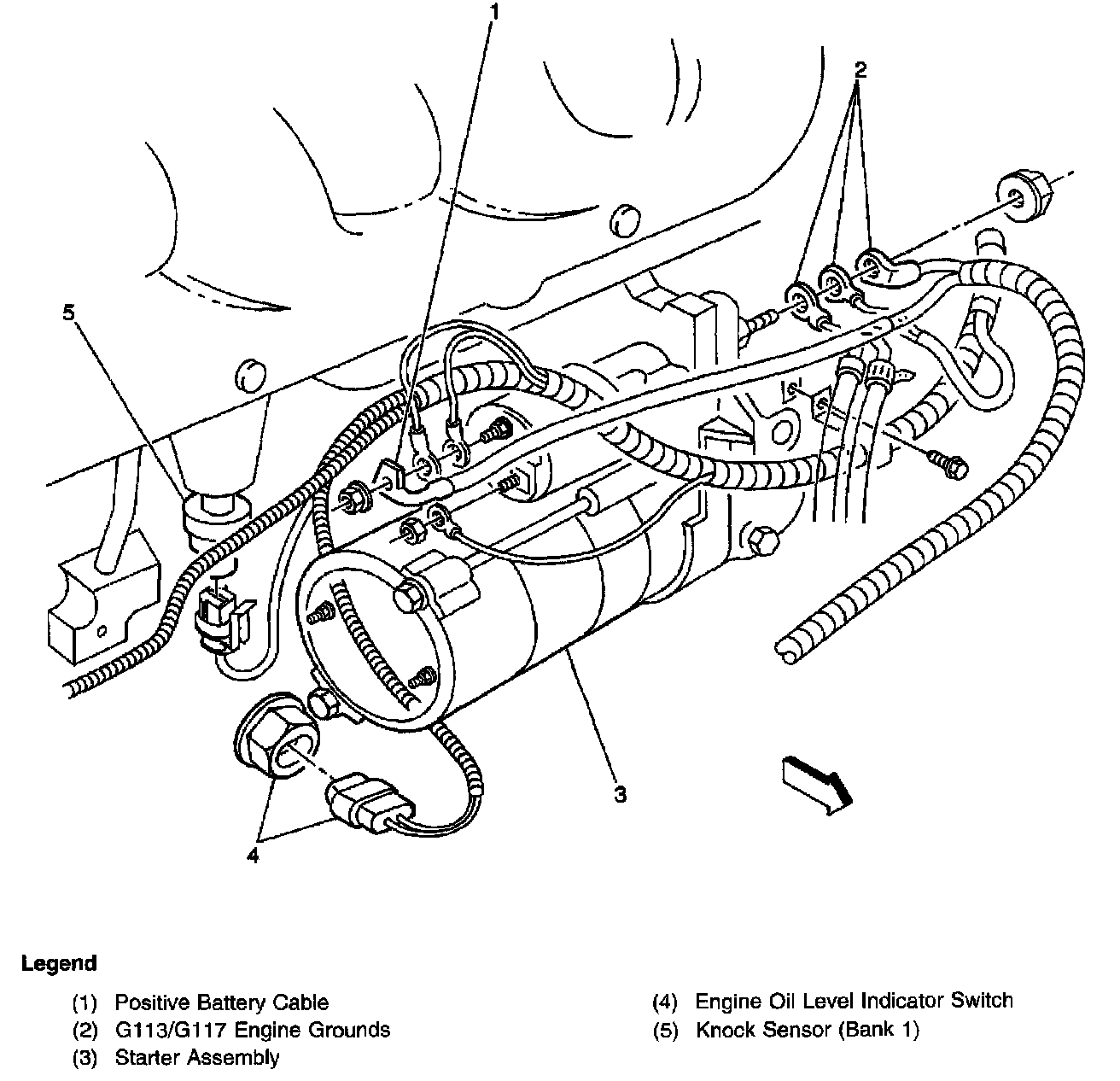

Component View (VIN K, 1):
