Home >> Oldsmobile >> 1999 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Heater-A/C Module

Heater-A/C Module

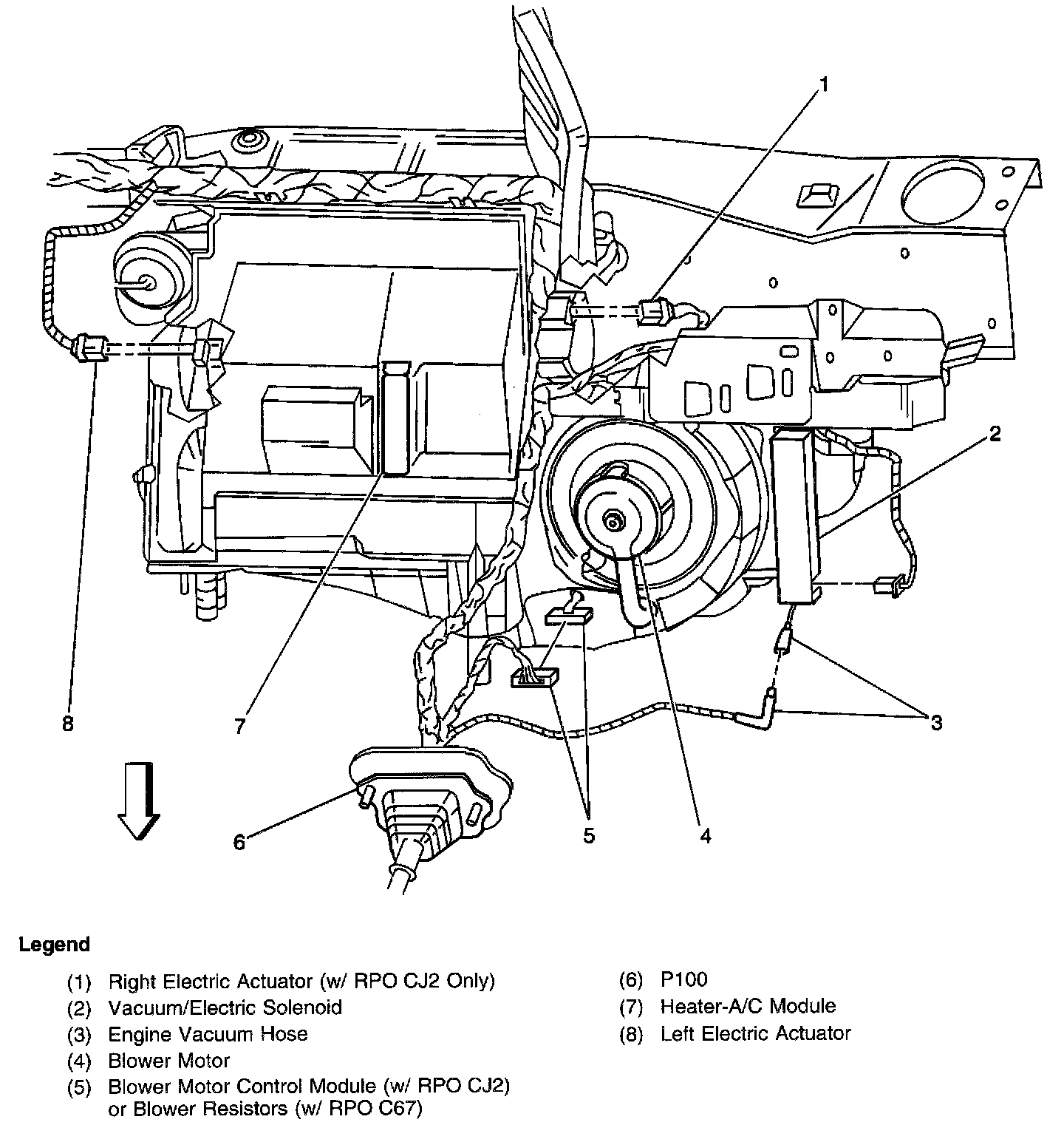

HVAC - Behind Center Of Instrument Panel (CJ2 Shown, C67 Similar):
