Home >> Oldsmobile >> 1999 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Cruise Control Module (CCM)

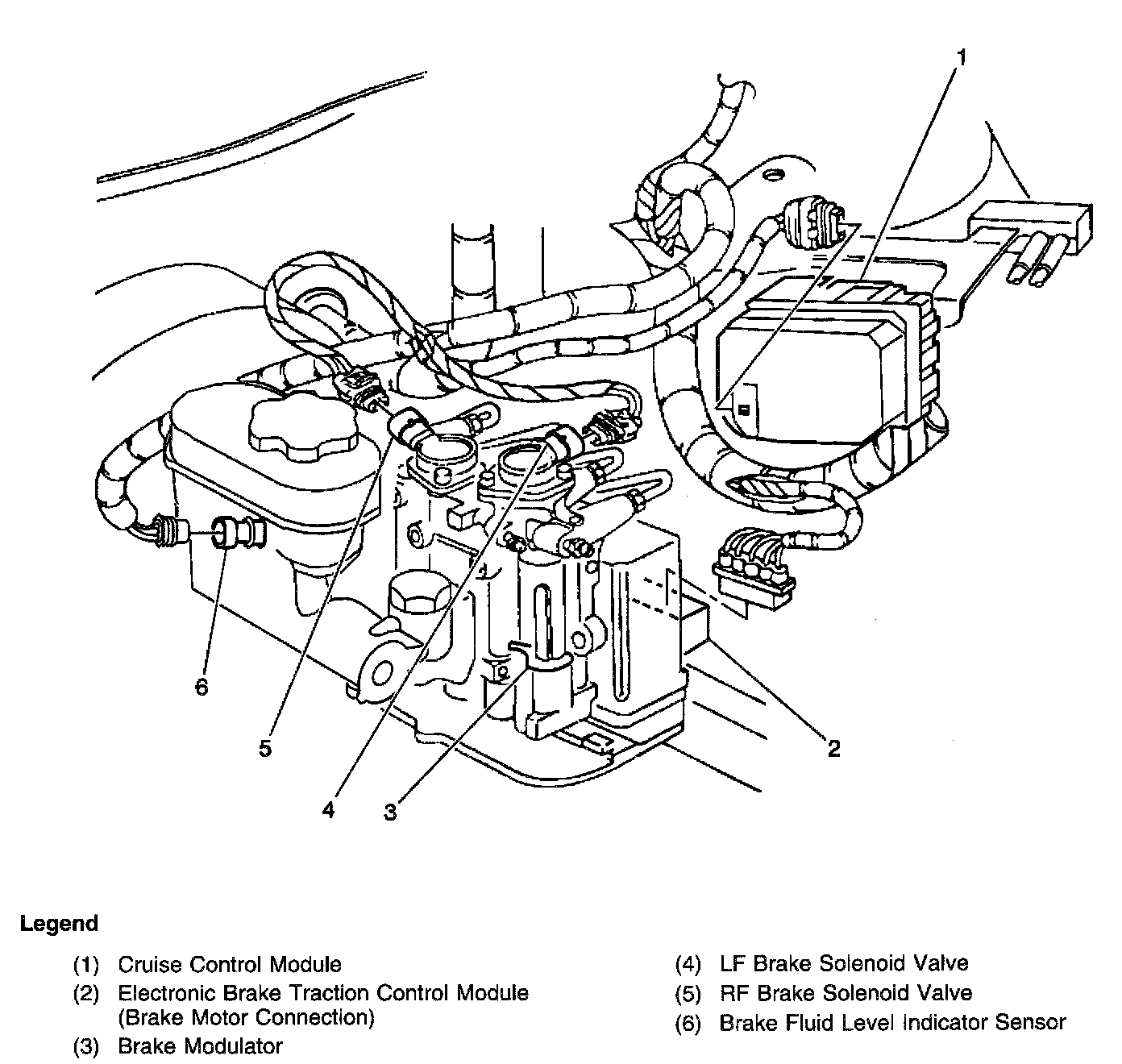

Cruise Control Module (CCM)

Brake Modulator, Brake Motor, Brake Solenoid Valves, Cruise Control Module (L36):






Left side of the engine compartment, mounted to the strut tower
