Home >> Oldsmobile >> 1999 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Windshield Washer Pump

Windshield Washer Pump

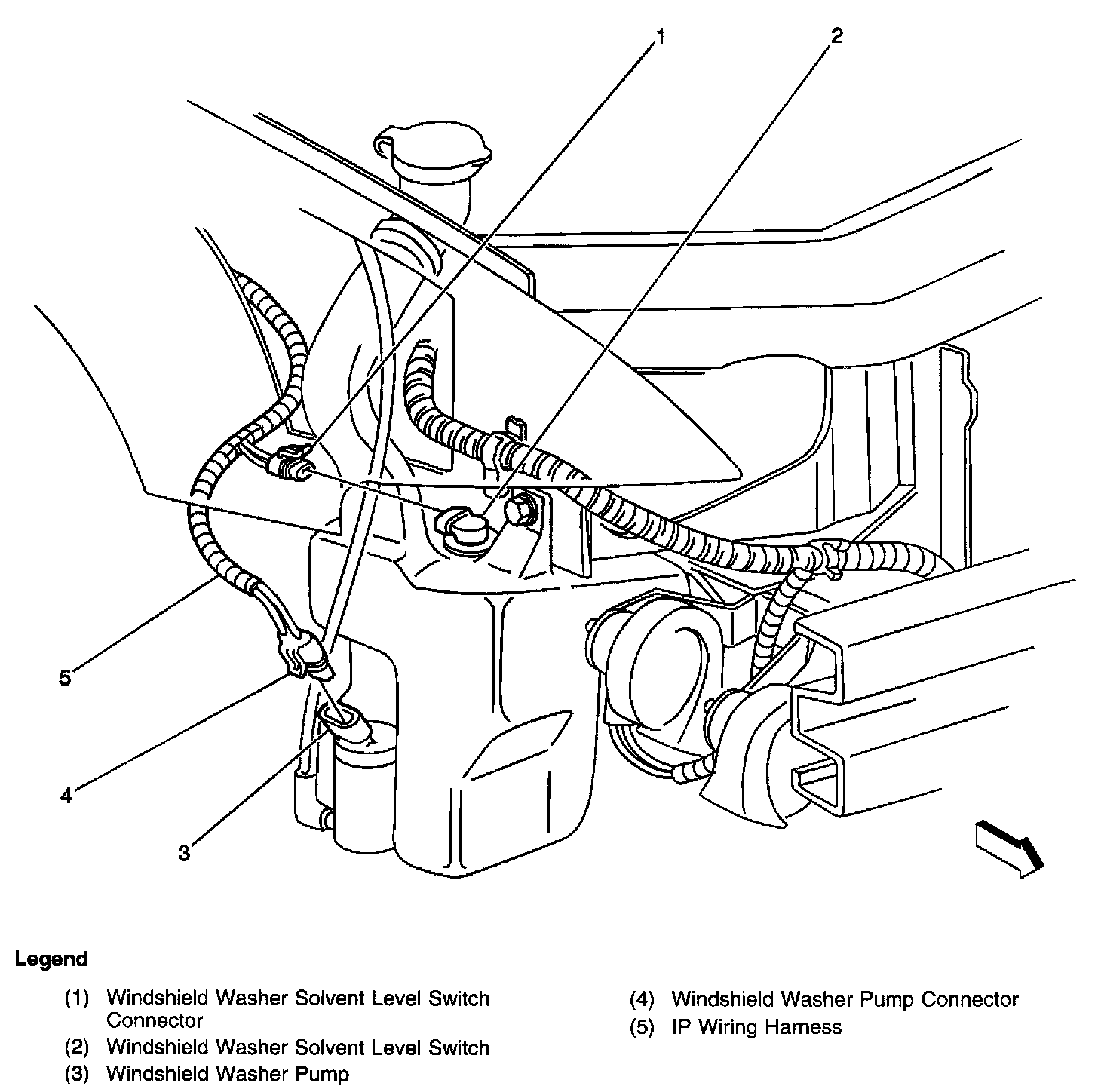

Wiper/Washer System Components - Inside RF Fender Liner:





Right side of the engine compartment, in the washer fluid container
