Ignition Control Module (ICM) Wiring Harness
Ignition Control Module (ICM) Wiring Harness

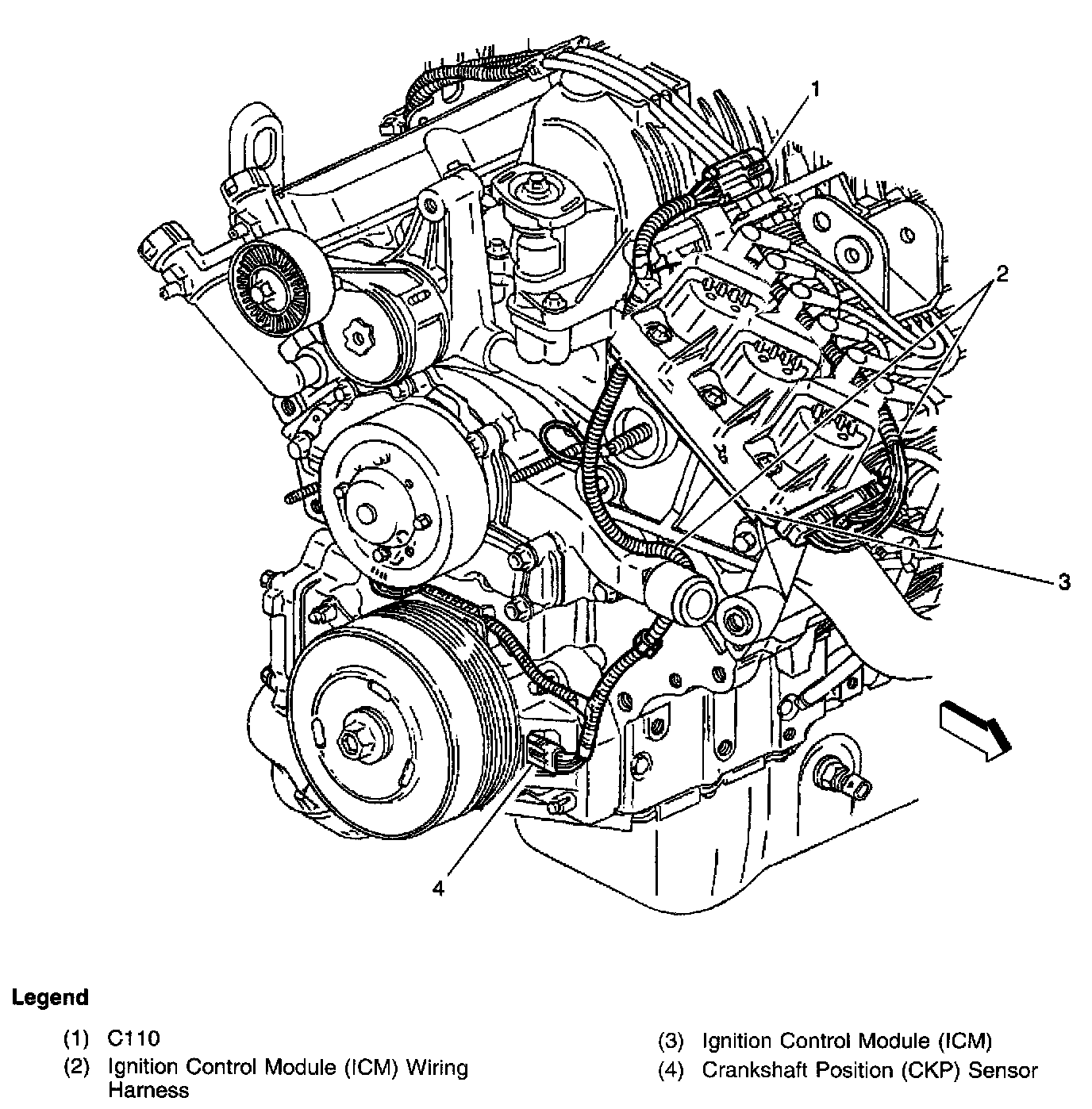

ICM, CKP Sensor And C110 - RH Side Of Engine:

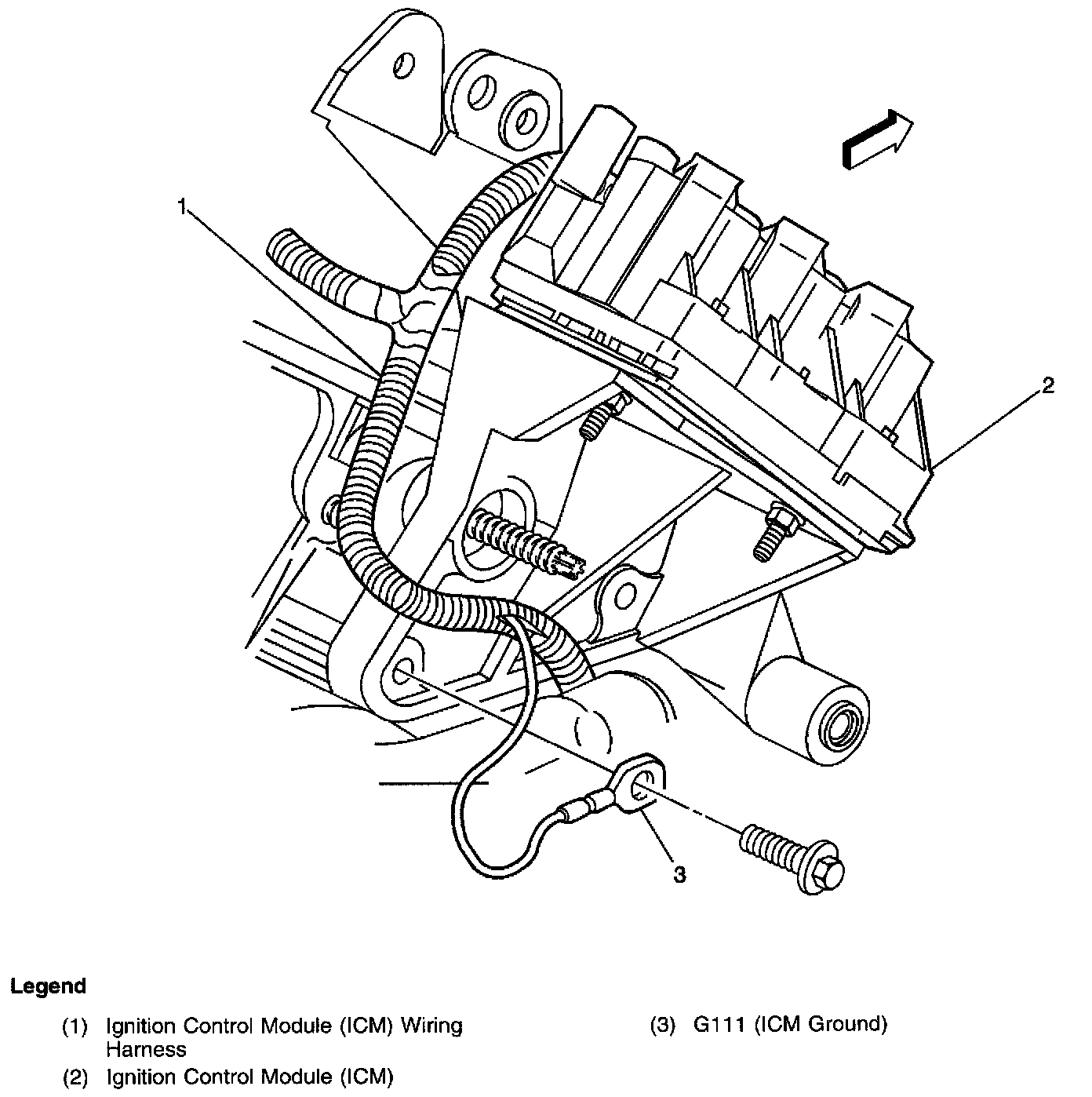

Ignition Control Module - RH Side Of Engine:

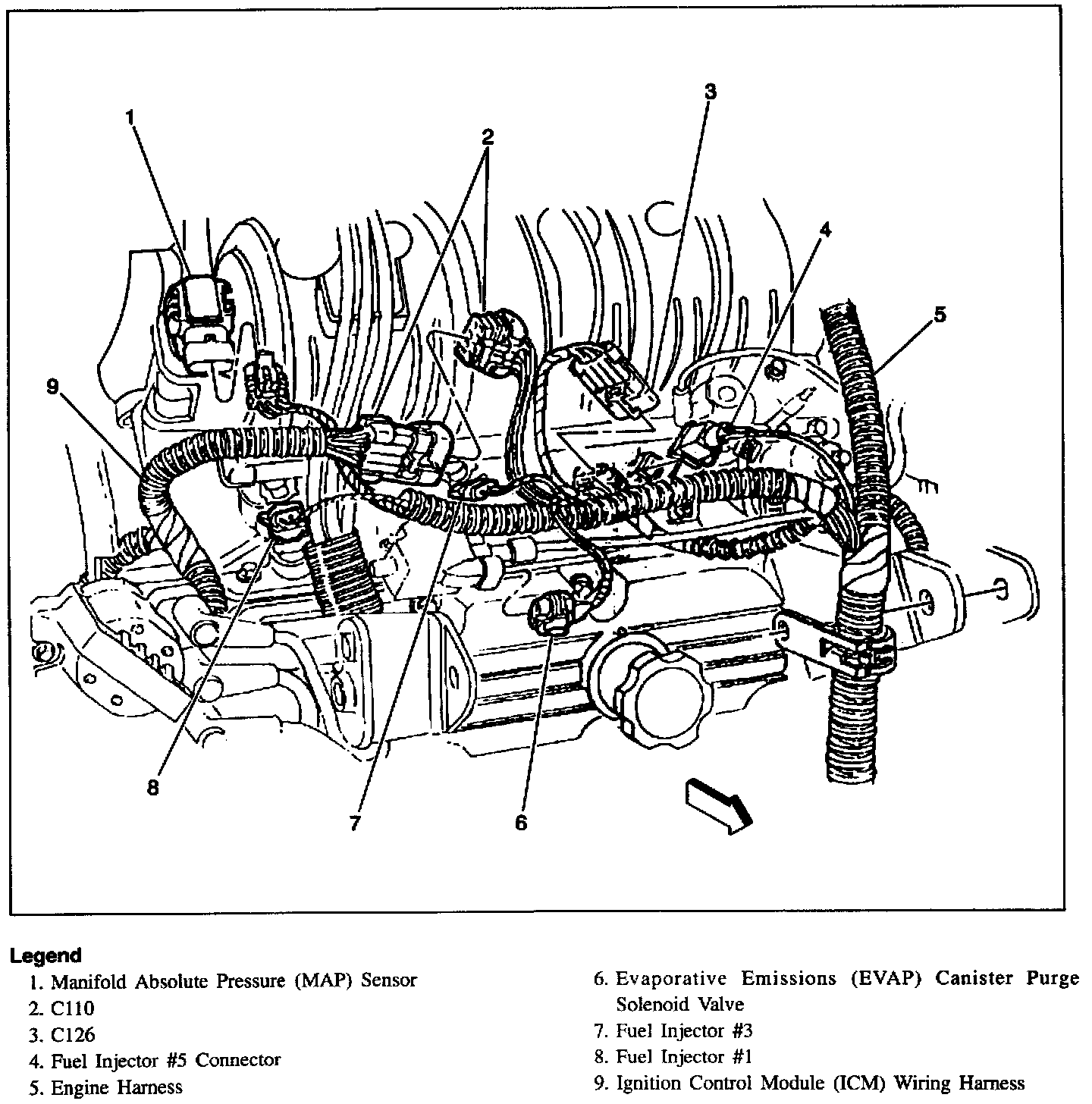

Top Front Of Engine:
