Fuel Tank Filler Door Lock Actuator

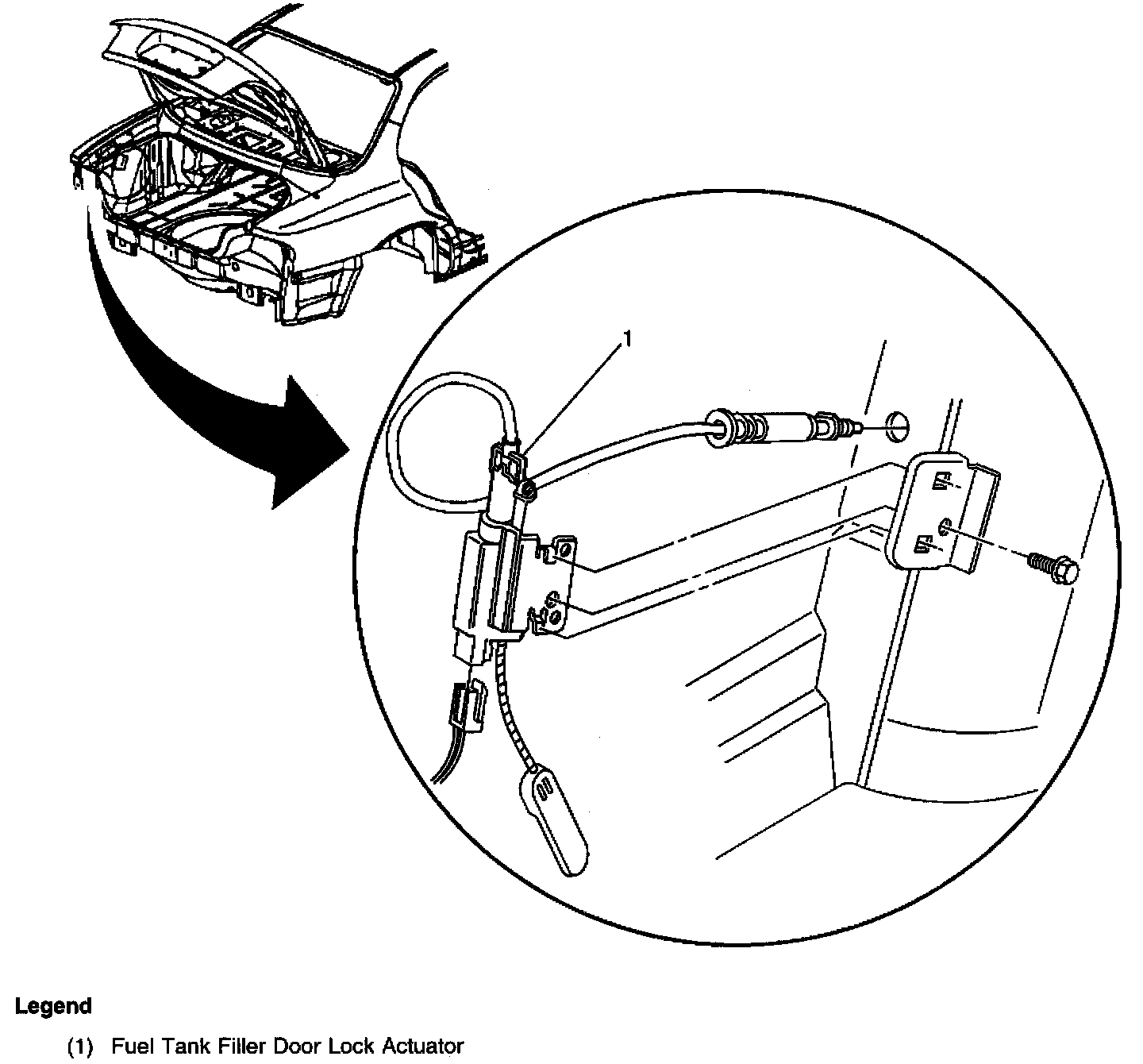

Fuel Tank Filler Door Lock Actuator - LH Side Of Rear Compartment:





Left side of the rear compartment, mounted behind the left rear wheelhouse
