Intrigue V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Cross Car Beam (Underside)
Cross Car Beam (Underside)

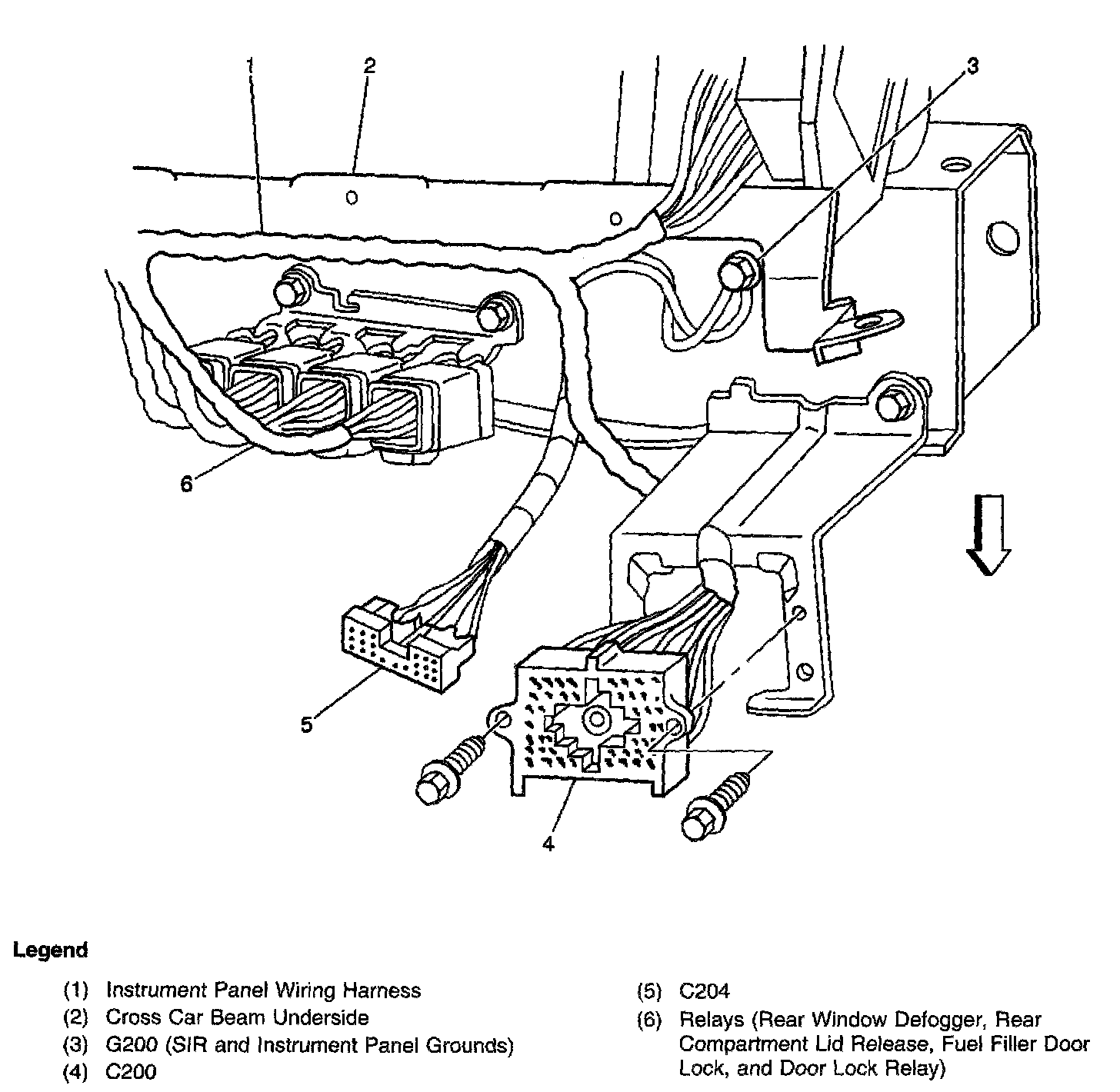

C200, C204 And Relays - Behind RH Side Of I/P:
C200, C204, And Relays - Behind RH Side Of I/P:
