Weatherstrip Replacement - Front Door Opening

REMOVAL PROCEDURE




1. Open the front door.
2. Remove the carpet retainers.
3. Remove the center pillar lower trim panel.

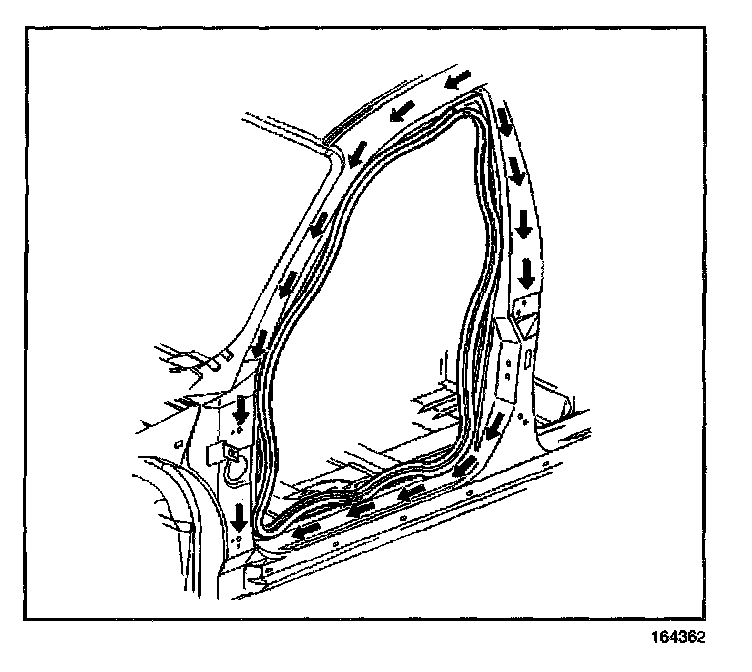

4. Remove the front door weatherstrip by pulling the weatherstrip from the pinchweld flange.

INSTALLATION PROCEDURE

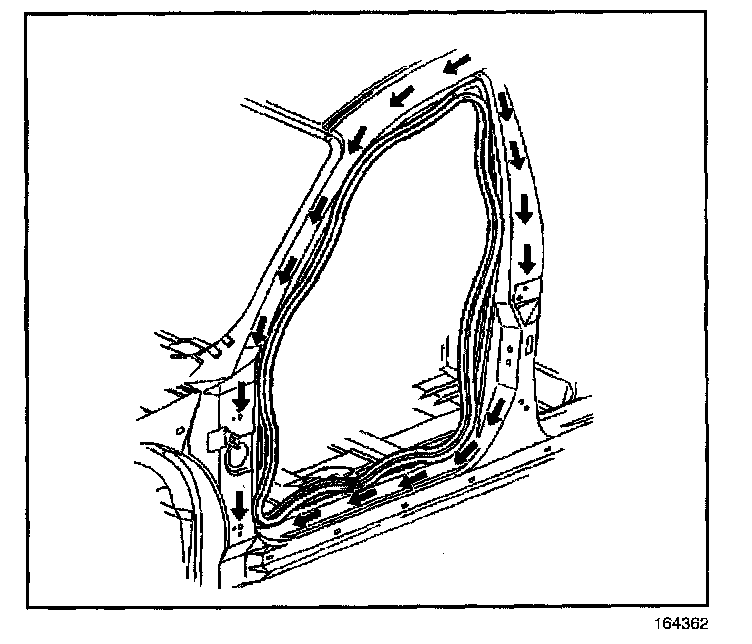

1. Install the weatherstrip to the pinchweld flange.
2. Install the center pillar lower trim panel.
3. Install the carpet retainers.
4. Close the front door.
