Sunroof / Moonroof Switch: Service and Repair

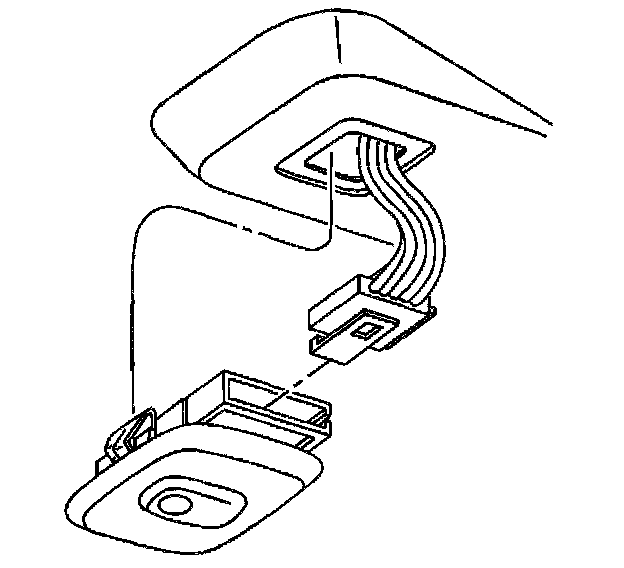

REMOVAL PROCEDURE
1. Grasp the switch on the left and right sides.
2. Use a small flat-bladed tool in order to disengage the clips which are located at the front and rear of the switch. Hold the flat-bladed tool parallel to the root and push straight in.
3. Rotate the switch toward the left side to disengage it from the mounting bracket and pull down.
4. Disconnect the electrical connector from the switch.
5. Remove the switch from the vehicle.

INSTALLATION PROCEDURE
1. Connect the electrical connector to the power sunroof switch.
2. Install the power sunroof switch to the vehicle.
3. Firmly push the power sunroof switch into the headliner until fully seated.
