Drain Channel Inspection And Cleaning

Drain Channel Inspection And Cleaning:

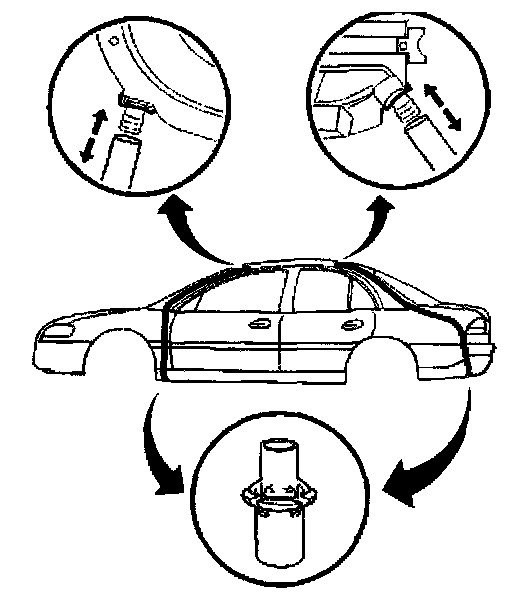

The drain hoses are pushed on NOT clamped or cemented on. Use caution when cleaning the channel to ensure that the hoses do not come off.
1. Slide the sunscreen all the way rearward.
2. Place the glass panel to the fully open position so that the front drain channels are in full view.
3. Front and rear, right and left drain channels can be checked and cleaned.
