Component Tests and General Diagnostics

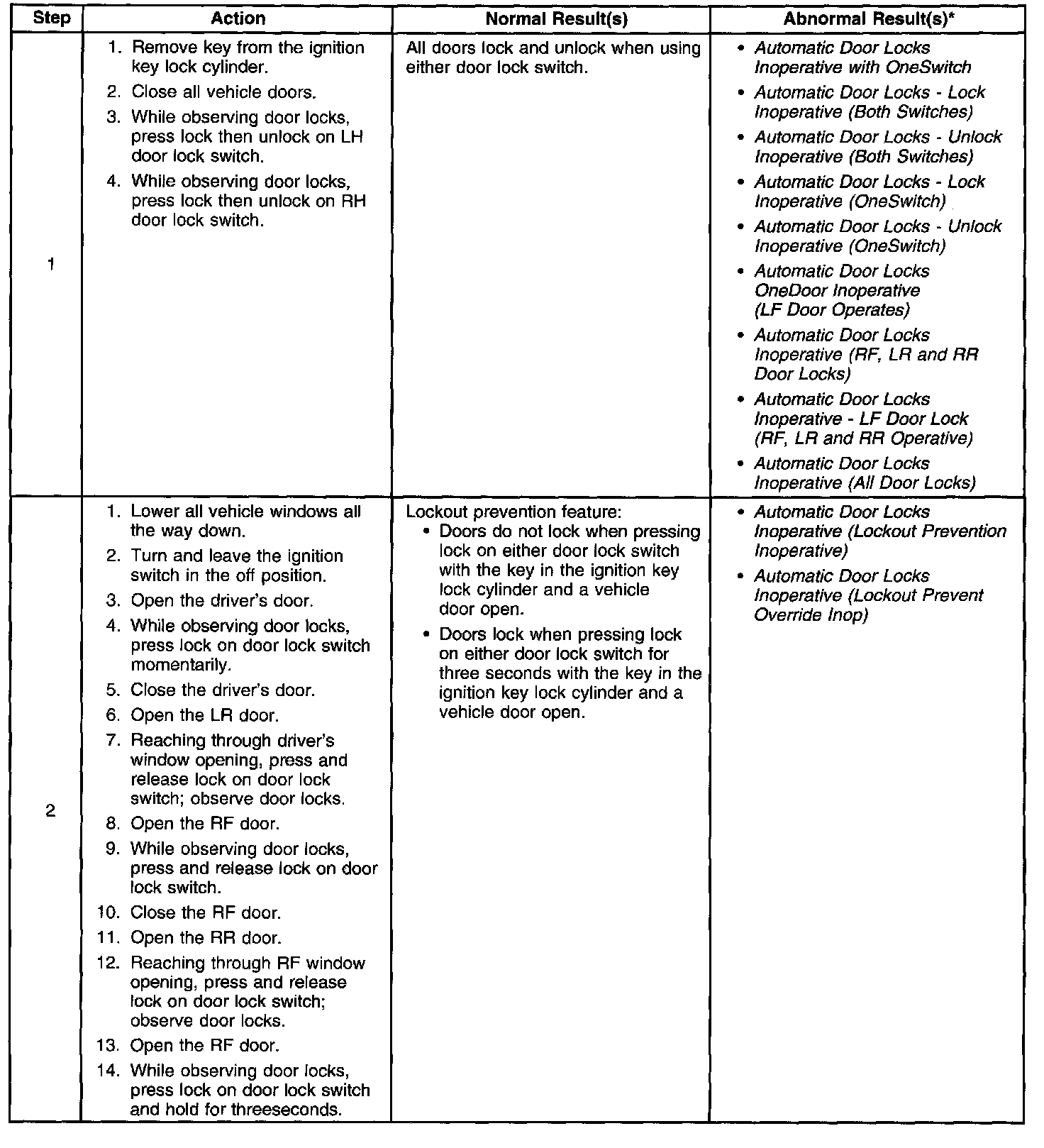

Automatic Door Locks System Check (Part 1 Of 2):

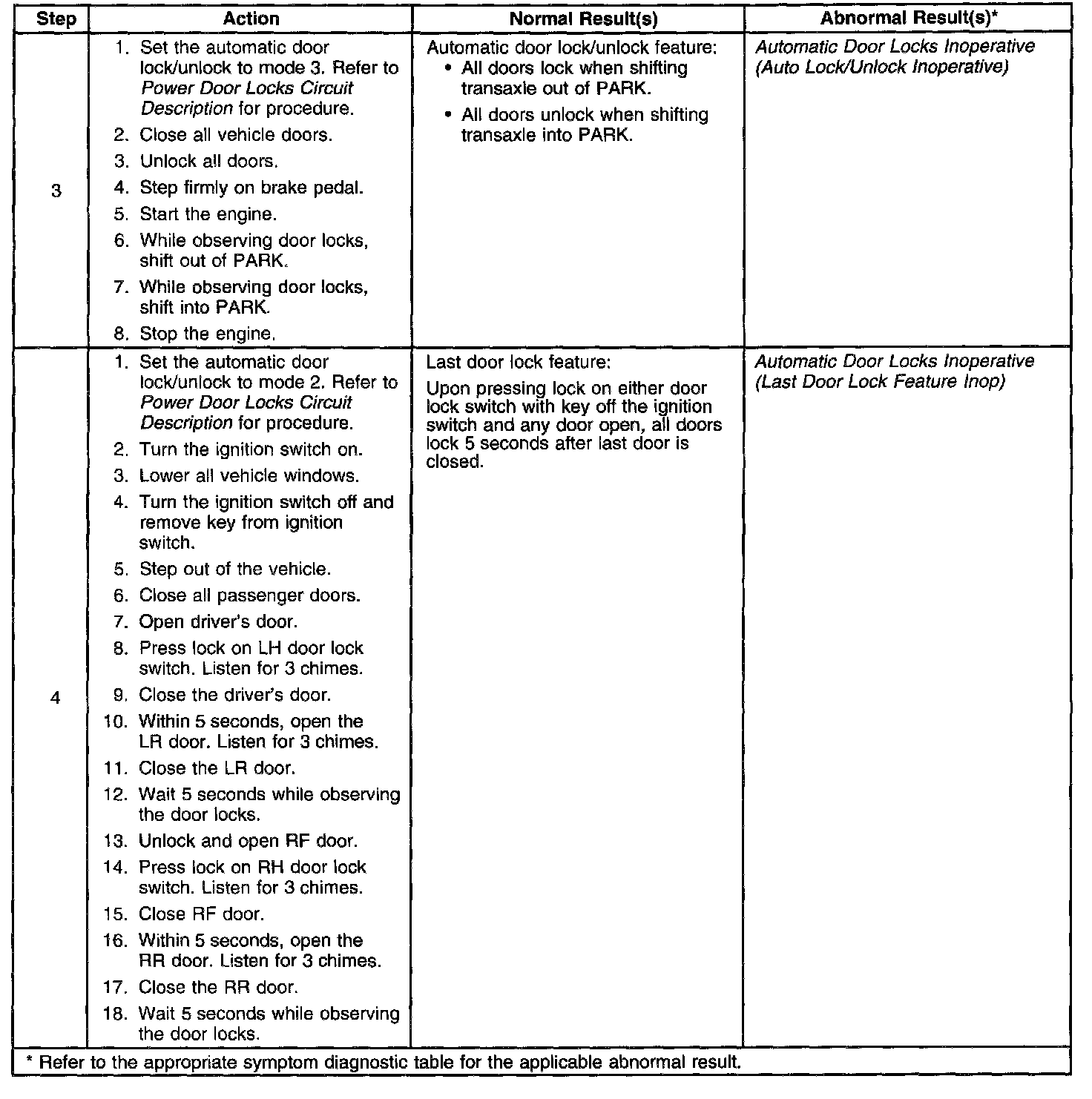

Automatic Door Locks System Check (Part 2 Of 2):

The Automatic Door Locks System Check tests the Body Control Module (BCM) for the operation of the automatic door locks. For more information regarding other BCM-controlled Systems, refer to Body Control System Description in Body Control System. Description and Operation
