Lock Cylinder Replacement - Door

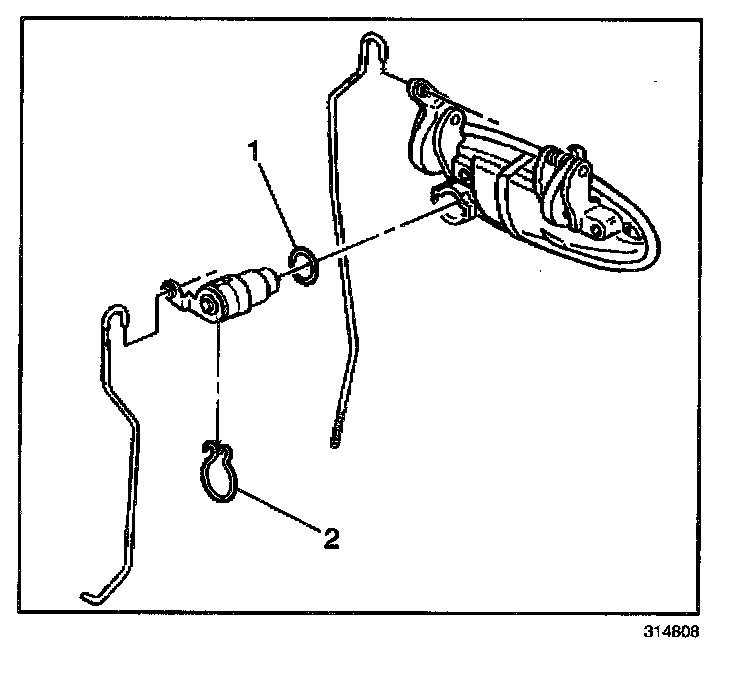

REMOVAL PROCEDURE




1. Remove the front door outside door handle.
2. Remove the lock cylinder retainer clip (2).
3. Remove the lock cylinder from the outside door handle.

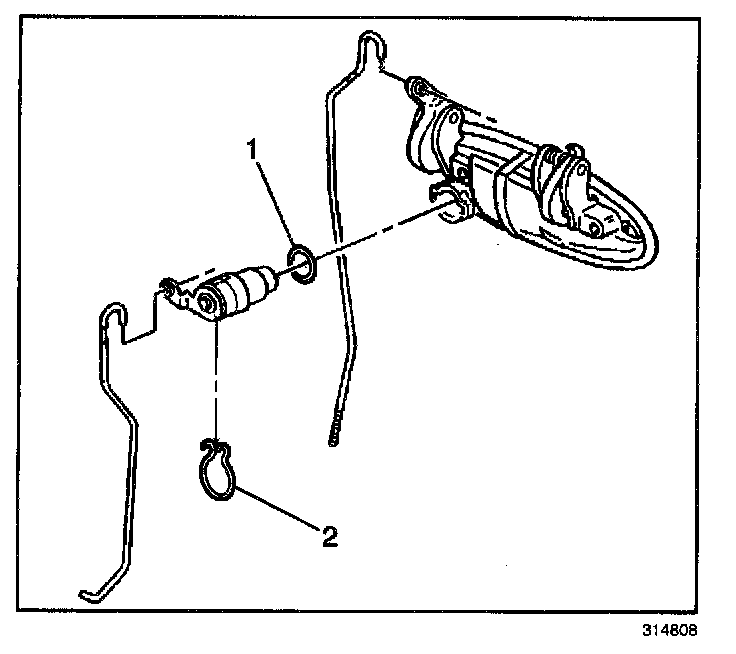

INSTALLATION PROCEDURE




1. Install the lock cylinder to the door handle.
2. Install the lock cylinder retainer clip (2).
3. Install the outside door handle.
