Instrument Panel (IP) - Accessory Trim Plate Replacement

REMOVAL PROCEDURE
1. Remove the front floor console trim plate.

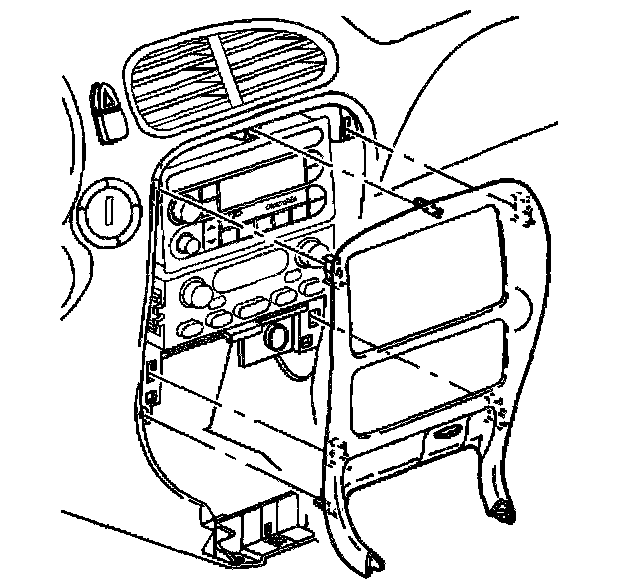

2. Remove the instrument panel accessory trim plate from the instrument panel by releasing the retainers.

INSTALLATION PROCEDURE
1. Align the instrument panel accessory trim plate retainers to the slots in the instrument panel.
2. Install the instrument panel accessory trim plate retainers into slots until fully seated.
3. Install the front floor console trim plate.
