Trim Plate Replacement - Front Floor Console

REMOVAL PROCEDURE
1. Remove the traction control switch.
2. Remove the IP accessory Trim Plate.
3. Open the front floor console compartment.

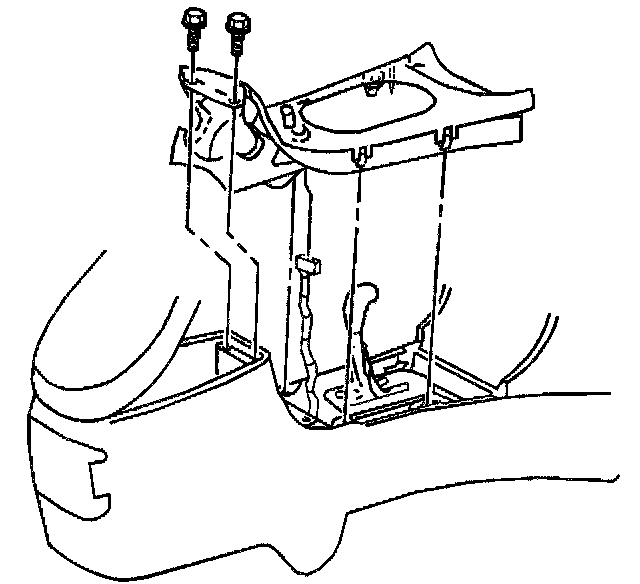

4. Remove the bolts/screws from the front floor console trim plate.
5. Pull up on the front floor console trim plate to release the retainer clips.
6. Lift the front floor console trim plate up and over the transaxle shift lever.
7. Remove the front floor console trim plate from the front floor console.

INSTALLATION PROCEDURE
1. Align the front floor console trim plate to the front floor console.
2. Install the traction control switch.
3. Position the front floor console trim plate over transaxle shift lever.
4. Install the front floor console trim plate to the front floor console and snap into place.

NOTE: Refer to Fastener Notice in Cautions and Notices.

5. Install the bolts/screws to front floor console trim plate.

Tighten
Tighten the front floor console trim plate bolts/screws to 2 N.m (18 lb in).

6. Close the front floor console compartment.
7. Install the IP accessory Trim Plate.
