Armrest Pull Cup Replacement

REMOVAL PROCEDURE

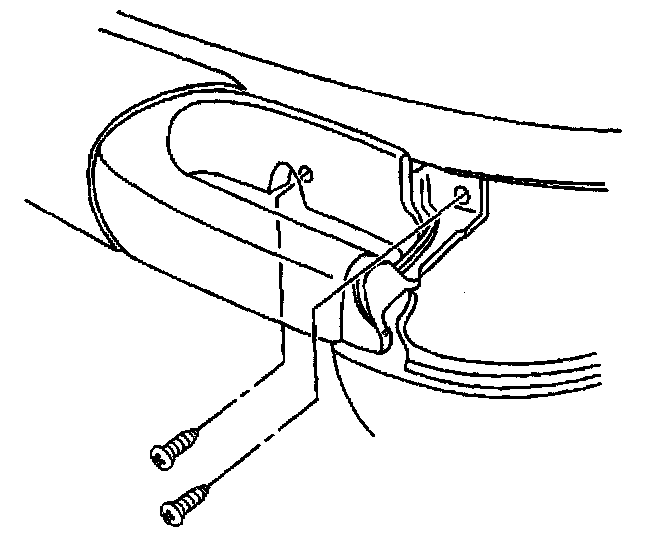

1. Remove the screws from the pull handle.
2. Remove the pull handle from the door inner trim panel.

INSTALLATION PROCEDURE
1. Install the pull handle to the door trim panel.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the screws to the pull handle.

Tighten
Tighten the pull handle screws to 2 N.m (18 lb in).
