Armrest Bracket Replacement

REMOVAL PROCEDURE
1. Remove the door inner trim panel.
2. Remove the door water deflector.

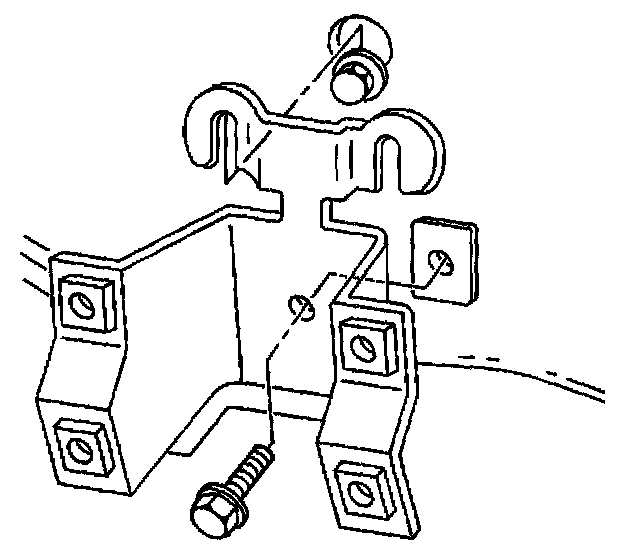

3. Loosen the upper armrest bracket bolt.
4. Remove the lower armrest bracket bolt.
5. Remove the armrest bracket lifting the bracket upwards off the door.

INSTALLATION PROCEDURE
1. Hook the upper portion of the armrest bracket over the upper bolt.
2. Install the lower armrest bracket bolt.

NOTE: Refer to Fastener Notice in Cautions and Notices.

3. Tighten the armrest bracket bolts.

Tighten
Tighten the armrest bracket bolts to 10 N.m (89 lb in).

4. Install the door water deflector.
5. Install the door inner trim panel.
