Rubber Conduit Replacement - Front Door

REMOVAL PROCEDURE

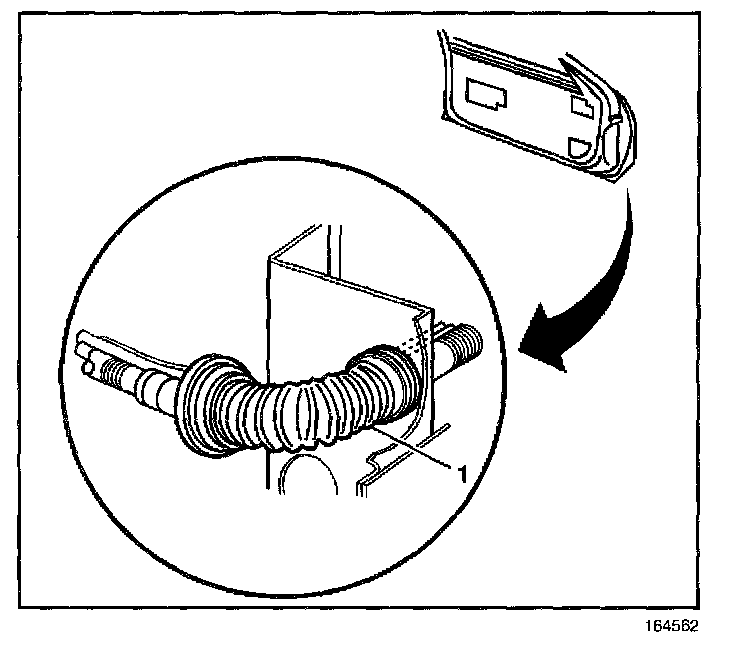

1. Remove the conduit from the A-pillar.
2. Disconnect the front door wiring harness electrical connectors.
3. Remove the conduit from the front door.
4. Remove the conduit from the wiring harness.

INSTALLATION PROCEDURE

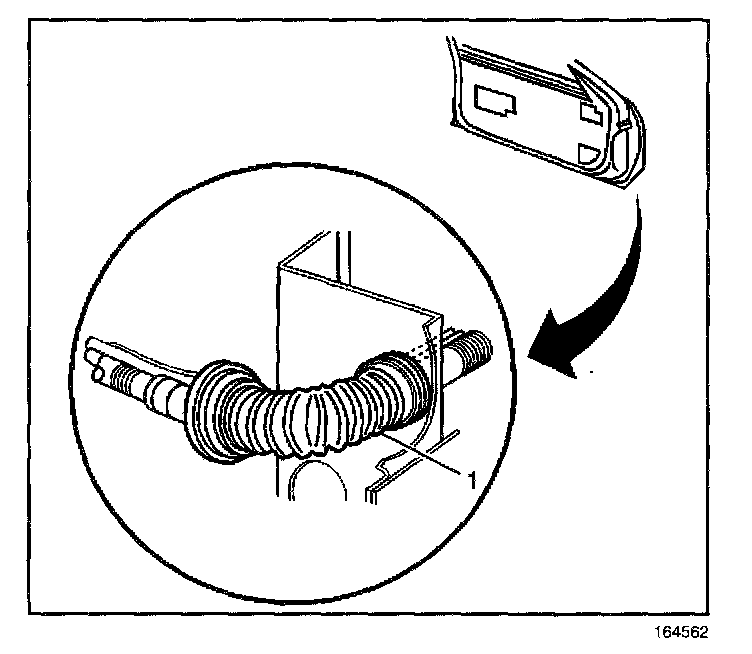

1. Install the wiring harness into the conduit.
2. Install the conduit to the front door.
3. Connect the front door wiring harness electrical connectors.
4. Install the conduit to the A-pillar.
