P1676

Circuit Description

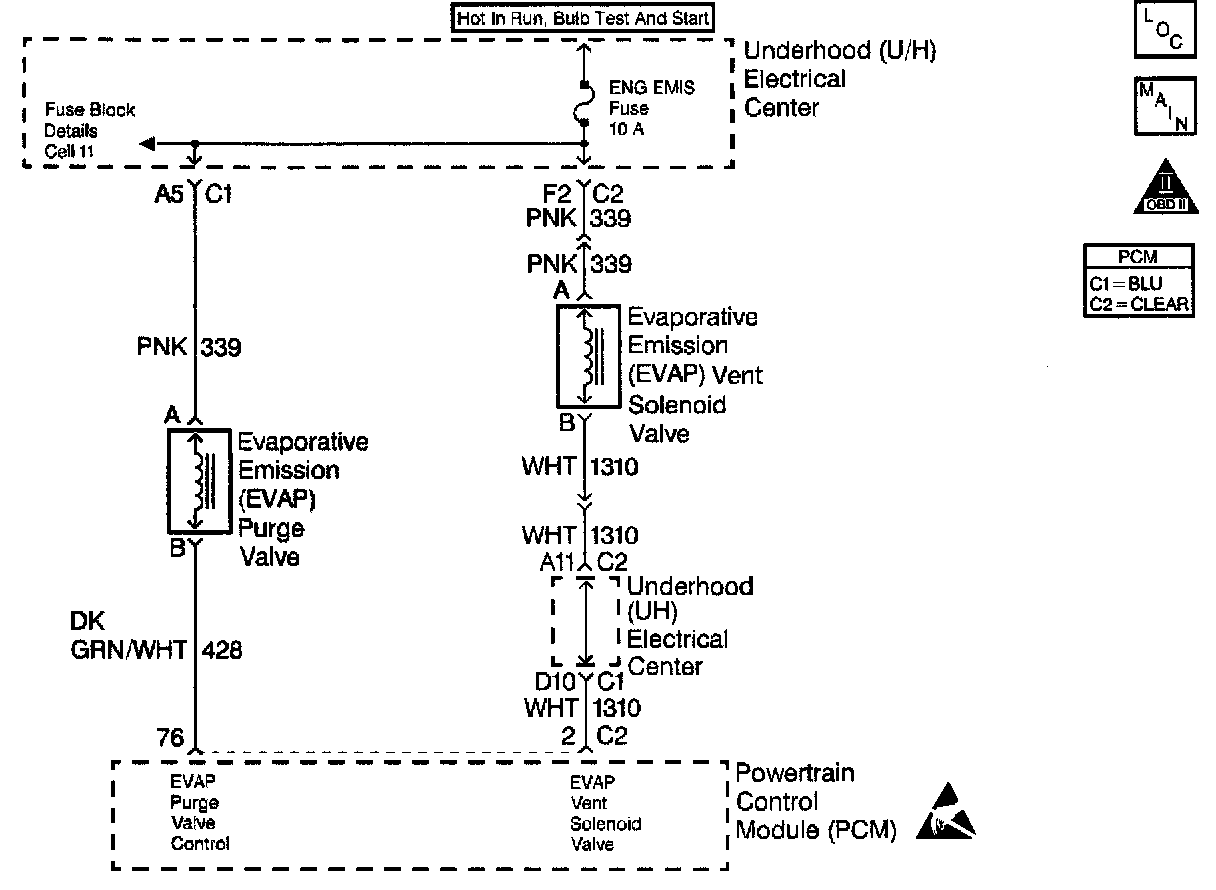

Output driver modules (ODMs) are used by the powertrain control module (PCM) to turn on many of the current-driven devices that are needed to control various engine and transmission functions. Each ODM is capable of controlling up to 7 separate outputs by applying ground to the device which the PCM is commanding on. Unlike the quad driver modules (QDMs) used in prior model years, ODMs have the capability of diagnosing each output circuit individually. A DTC P0449 set indicates an improper voltage level has been detected on the output circuit which controls the EVAP canister vent solenoid valve.

Conditions for Running the DTC
The ignition is on.

Conditions for Setting the DTC
^ An improper voltage level has been detected on the output circuit which controls the EVAP canister vent solenoid valve.
^ The above condition is present for at least 30 seconds.

Action Taken When the DTC Sets
^ The PCM illuminates the malfunction indicator lamp (MIL) during the second consecutive trip in which the diagnostic test has been run and failed.
^ The PCM stores the conditions which were present when the DTC set as Freeze Frame and Fail Records data.

Conditions for Clearing the MIL/DTC
^ The PCM turns the MIL off during the third consecutive trip in which the diagnostic has been run and passed.
^ The history DTC clears after 40 consecutive warm-up cycles have occurred without a malfunction.
^ The DTC can be cleared using the scan tool Clear Info function or by disconnecting the PCM battery feed.

Diagnostic Aids
Inspect for the following conditions:
^ A faulty connection at the PCM. Inspect the harness connectors for backed out terminals, improper mating, broken locks, improperly formed or damaged terminals, and faulty terminal to wire connections.
^ Inspect the wiring harness for damage. If the harness appears to be OK, disconnect the PCM, turn the ignition on, and observe a voltmeter connected between the solenoid control circuit and ground at the PCM harness connector while moving the connectors and the wiring harnesses related to the solenoid. A change in voltage indicates the location of the malfunction.
Review the Fail Records vehicle mileage since the diagnostic test last failed. This may help determine how often the condition that caused the DTC to be set occurs.

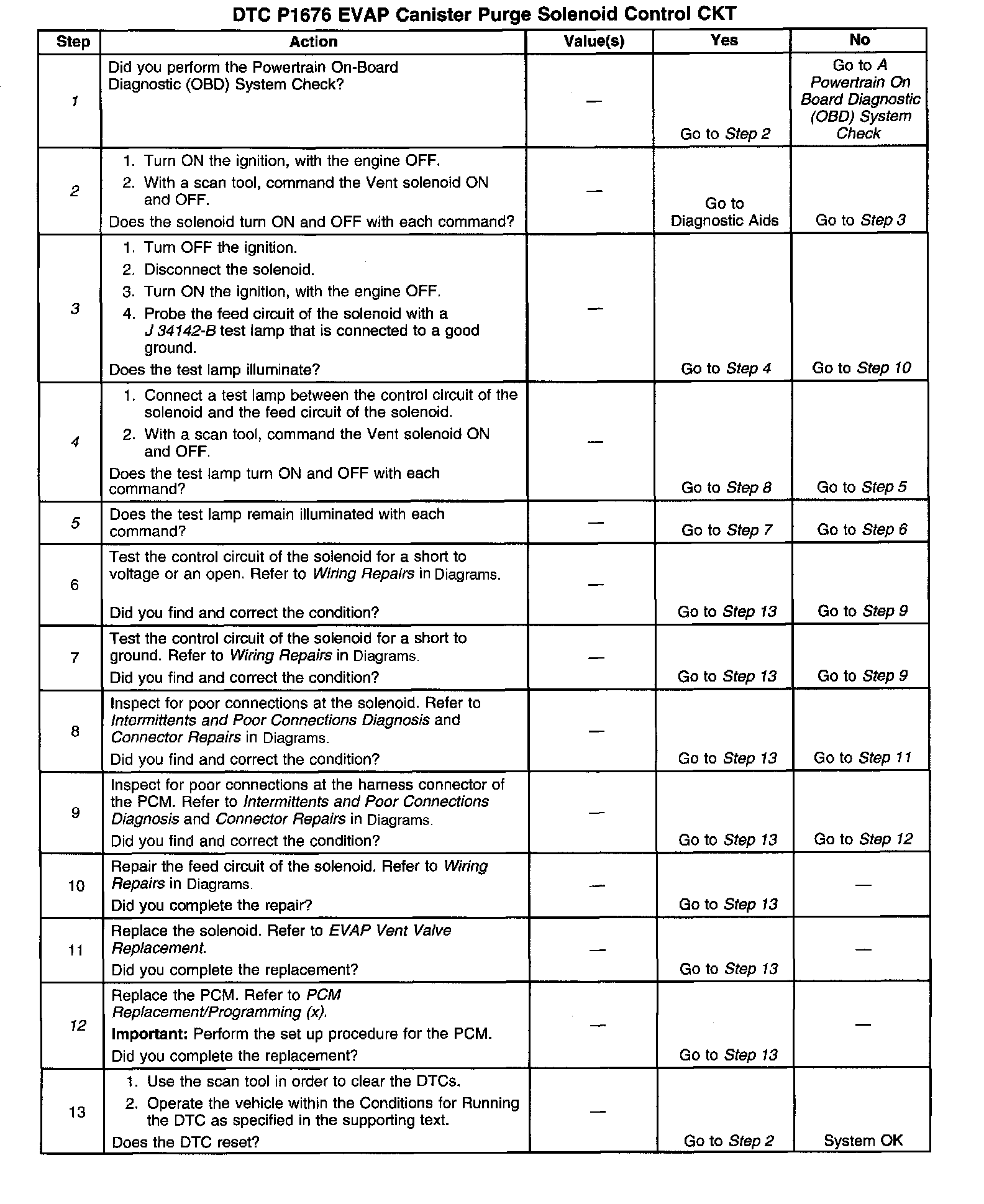

Test Description
The number(s) below refer to the step number(s) on the diagnostic table.
1. The Diagnostic system check prompts you to complete some basic checks and store the freeze frame and failure records data on the scan tool.
2. Listen for an audible click when the Vent solenoid operates. Command both the ON and OFF states. Repeat the commands as necessary.
3. Tests for voltage at the teed side of the solenoid.
4. Verifies that the PCM is providing ground to the solenoid.
5. Tests if ground is constantly being applied to the solenoid.
12. The PCM utilizes Electrically Erasable Programmable Read Only Memory (EEPROM). When the PCM is replaced, the new PCM must be programmed.
