P0507

Circuit Description

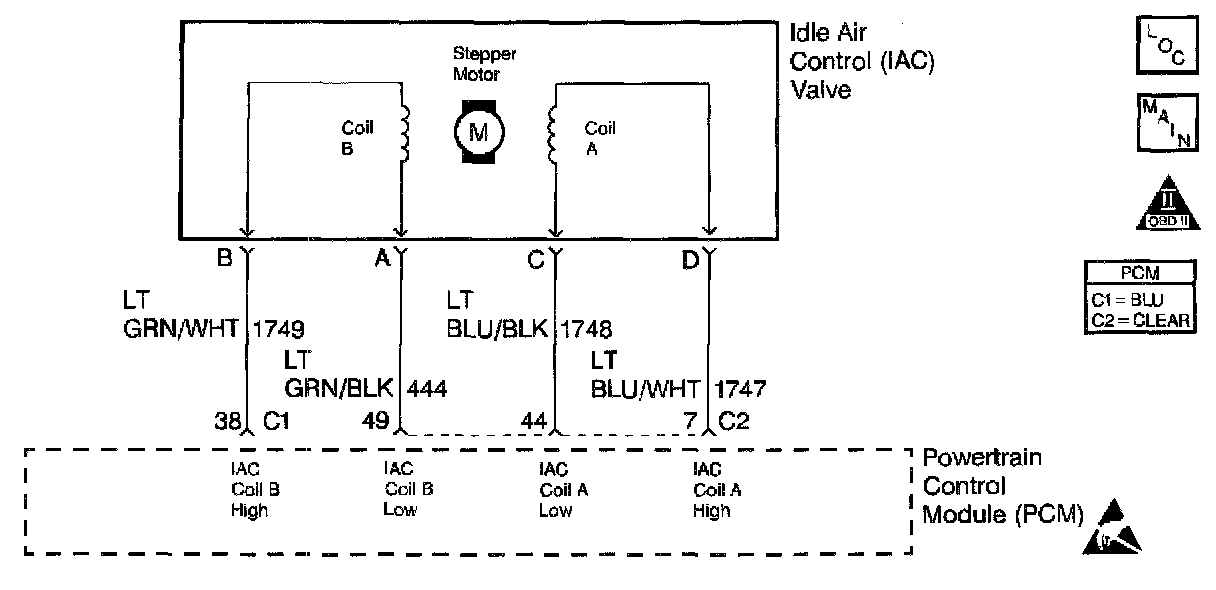

The PCM controls engine idle speed by adjusting the position of the Idle Air Control (IAC) motor pintle. The IAC is a bi-directional motor driven by two coils. The PCM sends pulses (steps) to the IAC to extend or retract the IAC pintle into a passage in the Throttle body to decrease or increase air flow. The commanded IAC position (displayed in counts) can be monitored on the scan tool; a lower number of counts indicates less commanded airflow (pintle extended). This method allows highly accurate control of idle speed and quick response to changes in engine load. If the PCM detects a condition where too high of an idle speed is present and the PCM is unable to adjust idle speed by decreasing the IAC counts, DTC P0507 will set indicating a problem with the idle control system.

Conditions for Running the DTC
1. No VSS, TP sensor, EVAP system, misfire, IAT sensor, MAP sensor, fuel trim, fuel injector, EGR pintle position, ECT sensor, CKP sensor, or MAF sensor DTCs set.
2. BARO is greater than 65 kPa.
3. Engine has been running for at least 60 seconds.
4. System voltage is between 9 and 16 volts.
5. Engine Coolant Temperature is greater than 70°C (158°F).
6. Vehicle Speed is less than 3 MPH.
7. Intake Air Temperature is greater than -18°C (0°F).
8. The Throttle is closed.

Conditions for Setting the DTC
^ Engine Speed is more than 175 RPM higher than Desired Idle (positive idle speed error greater than 175 RPM).
^ Above conditions for longer than 15 seconds.

Action Taken When the DTC Sets
^ The PCM will illuminate the MIL during the second consecutive trip in which the diagnostic test has been run and failed.
^ The PCM will store conditions which were present when the DTC set as Freeze Frame and Fail Records data.

Conditions for Clearing the MIL/DTC
^ The PCM will turn the MIL OFF during the third consecutive trip in which the diagnostic has been run and passed.
^ The history DTC will clear after 40 consecutive warm-up cycles have occurred without a malfunction.
^ The DTC can be cleared by using the scan tool Clear Info function or by disconnecting the PCM battery feed.

Diagnostic Aids
Check for the following conditions:
^ Poor connection at PCM or IAC motor. Inspect harness connectors for backed out terminals, improper mating, broken locks, improperly formed or damaged terminals, and poor terminal to wire connection.
^ Damaged harness. Inspect the wiring harness for damage.
^ Vacuum leak. Check for a condition that causes a vacuum leak, such as disconnected or damaged hoses, leaks at EGR valve and EGR pipe to intake manifold, leaks at Throttle body, malfunctioning or incorrectly installed PCV valve, leaks at intake manifold, etc.
^ Throttle body. Check for a sticking Throttle plate. Also inspect the IAC passage for deposits or objects which will not allow the IAC pintle to fully extend.
Reviewing the Fail Records vehicle mileage since the diagnostic test last failed may help determine how often the condition that caused the DTC to be set occurs. This may assist in diagnosing the condition.

Test Description

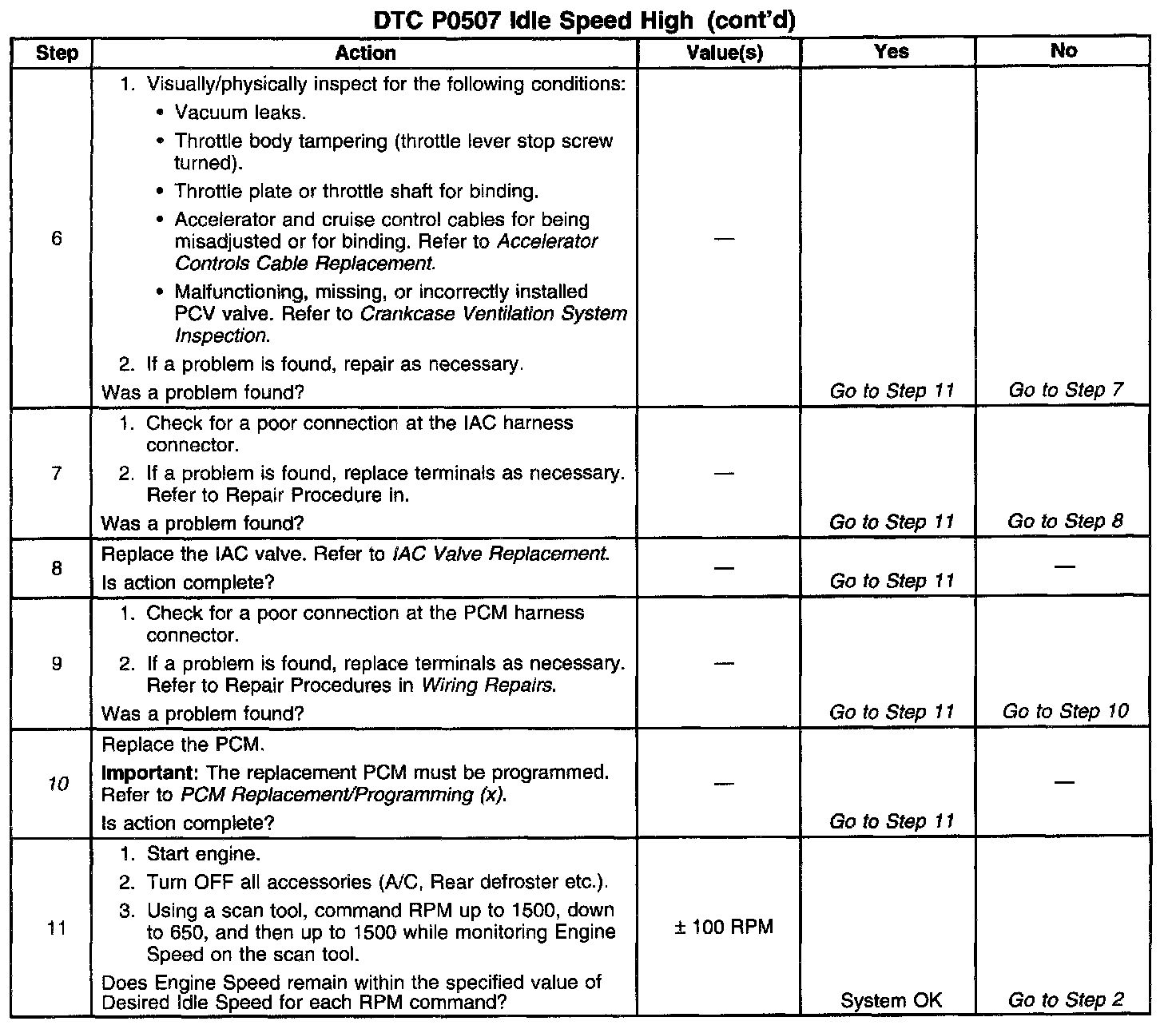

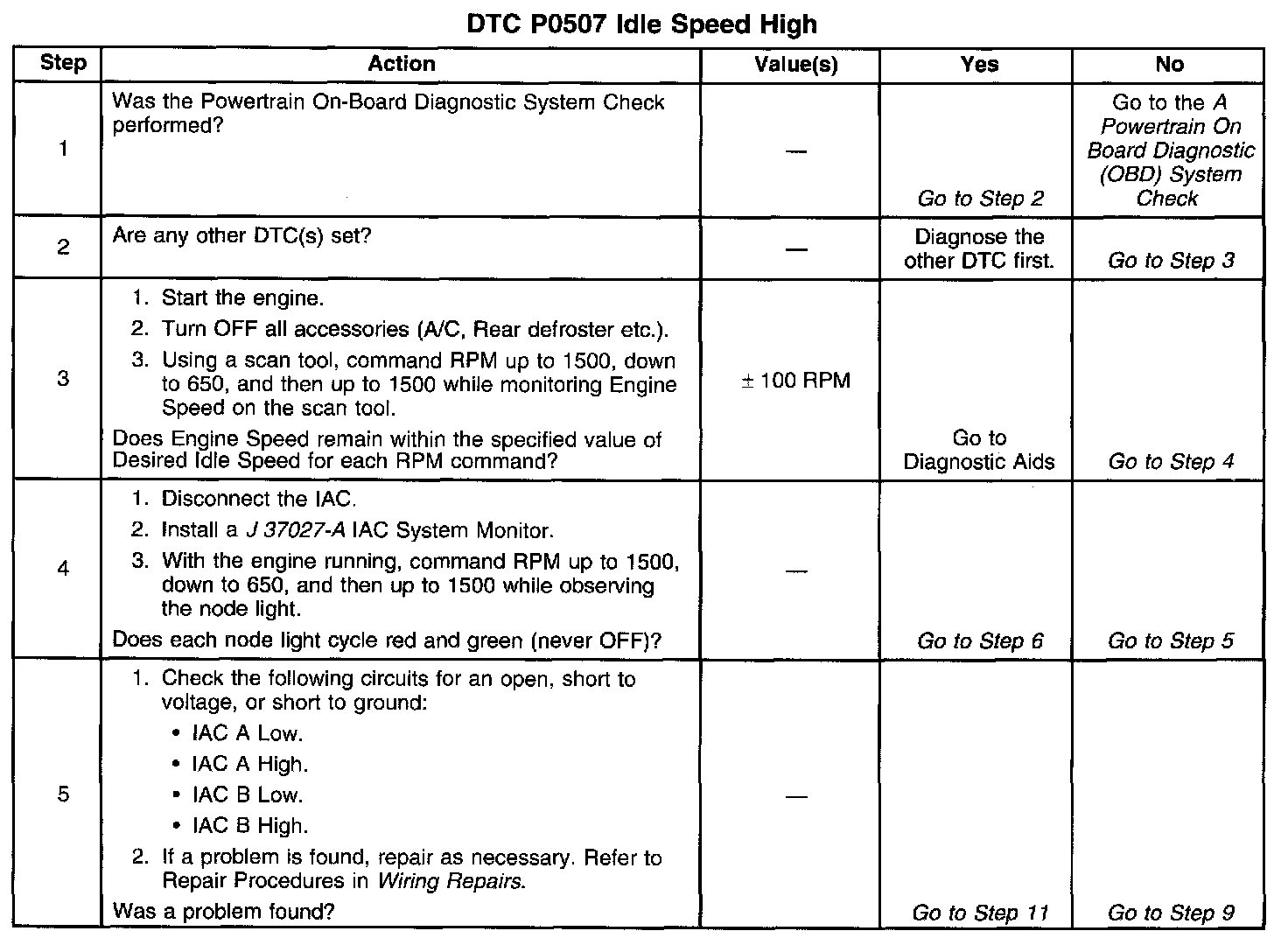

Number(s) below refer to the step number(s) on the Diagnostic Table.
10. This vehicle is equipped with a PCM which utilizes an Electrically Erasable Programmable Read Only Memory (EEPROM). When the PCM is being replaced, the new PCM must be programmed.
