C1293

CIRCUIT DESCRIPTION
DTC C1292 is the second portion of DTC C1291 for DTC C1293. If DTC 1291 or DTC 1292 failed during the last ignition cycle, DTC C1293 becomes a current failure during the next ignition cycle. DTC C1293 failure keeps ABS/ETS disabled until identifying a brake switch on state. When identifying a change during an ignition cycle in which DTC C1293 is a current malfunction, DTC C1291 or DTC 1292 will clear itself at the end of the current ignition cycle. ABS/ETS will then enable itself at the start of the next ignition cycle. DTC C1293 alone indicates DTC C1291 or DTC C1292 failed previously, but is intermittent, or has been corrected.

DIAGNOSTIC AIDS
If the malfunction is not current, use wiggle test on the wiring harness to pinpoint an intermittent malfunction in the motor circuitry or connections. Thoroughly inspect any circuitry that may be causing the intermittent complaint for the following conditions:
- Backed out terminals
- Improper mating
- Improperly formed or damaged terminals
- Poor terminal-to-wiring connections
- Physical damage to the wiring harness
- Rubbed-through wire insulation
- A broken wire inside the insulation

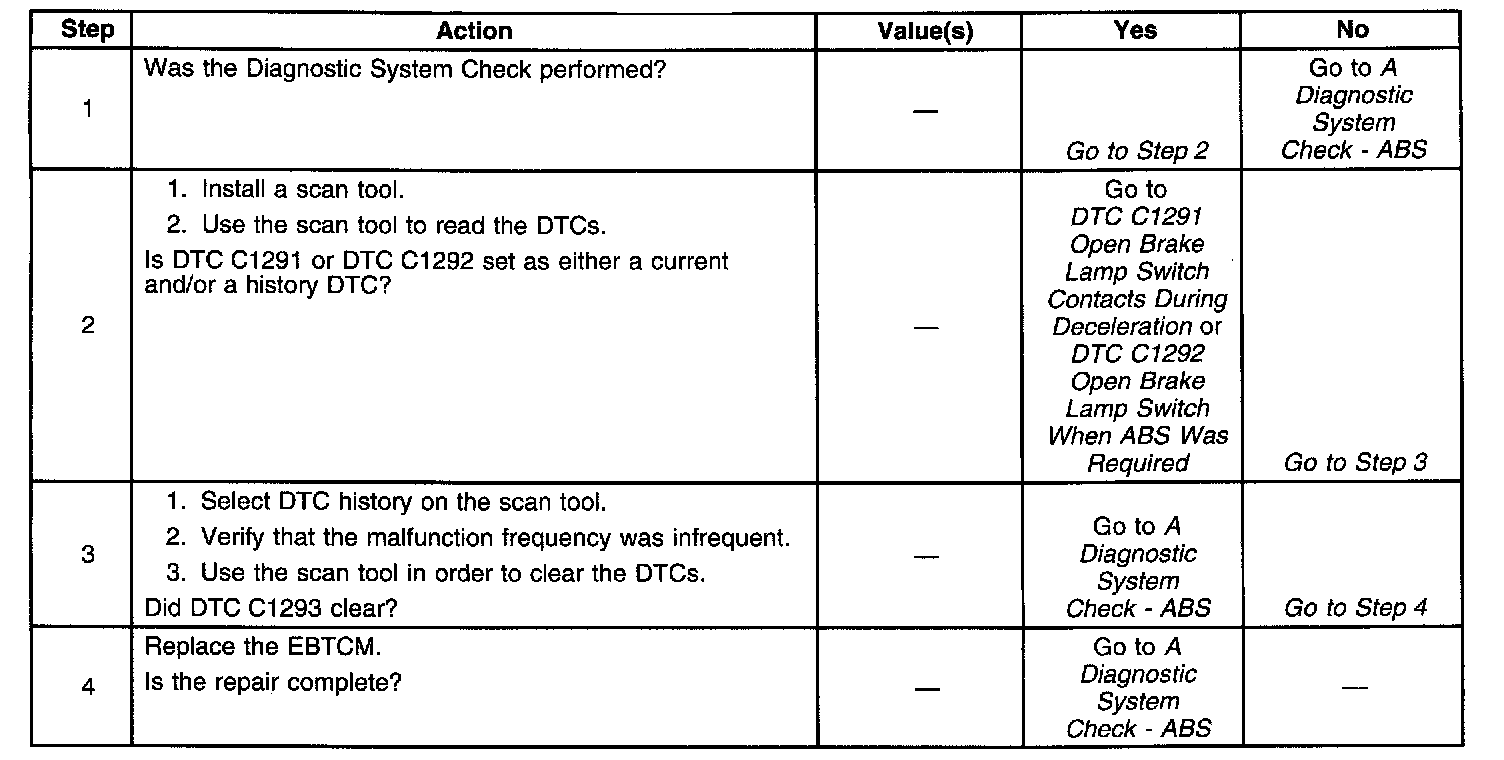

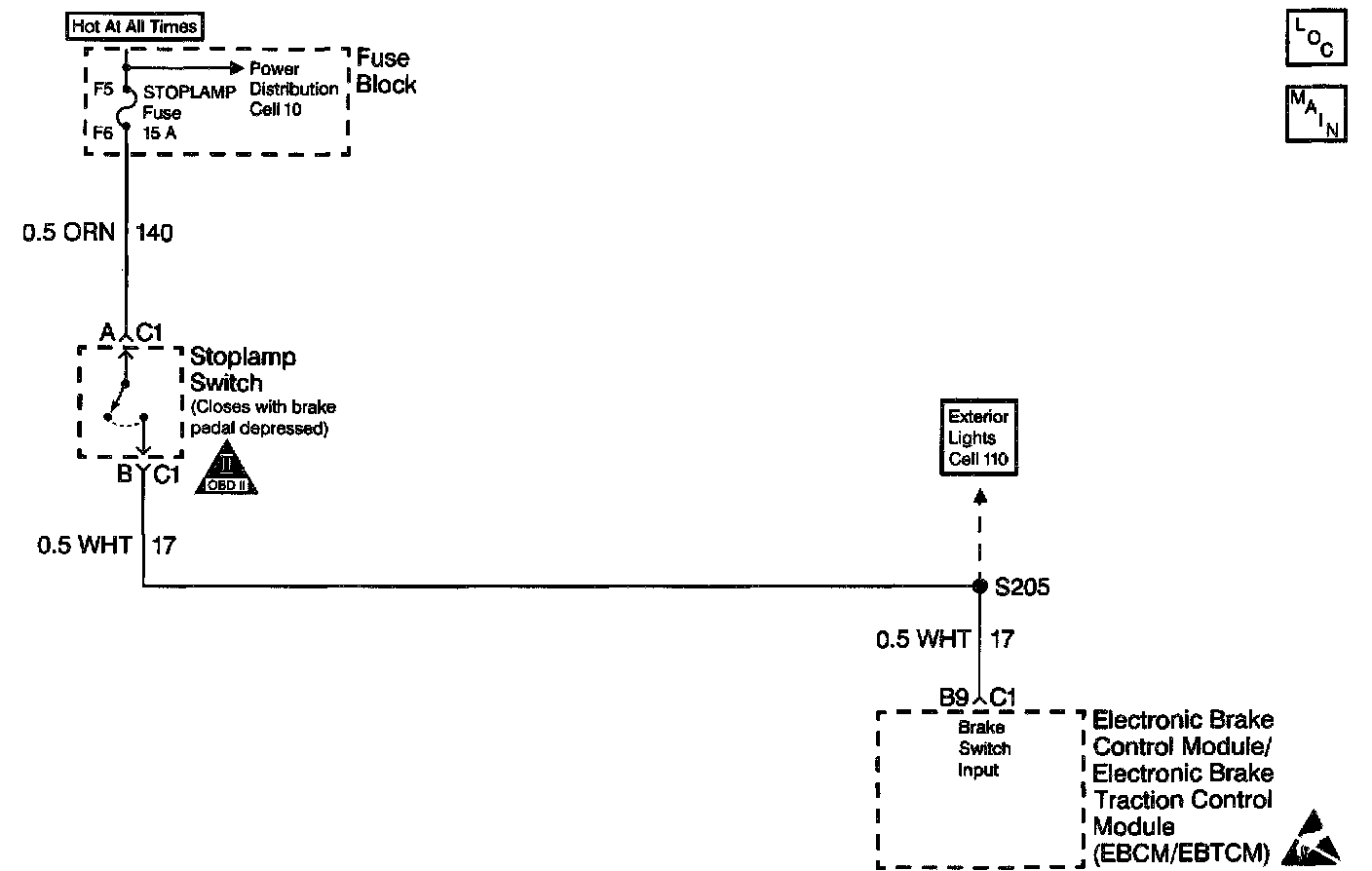

Use the Data List of the Scan Tool verify proper brake switch operation. The Data List should display the brake switch as the brake is applied within 25 mm (1.0 inch) of brake pedal travel.
