C1286

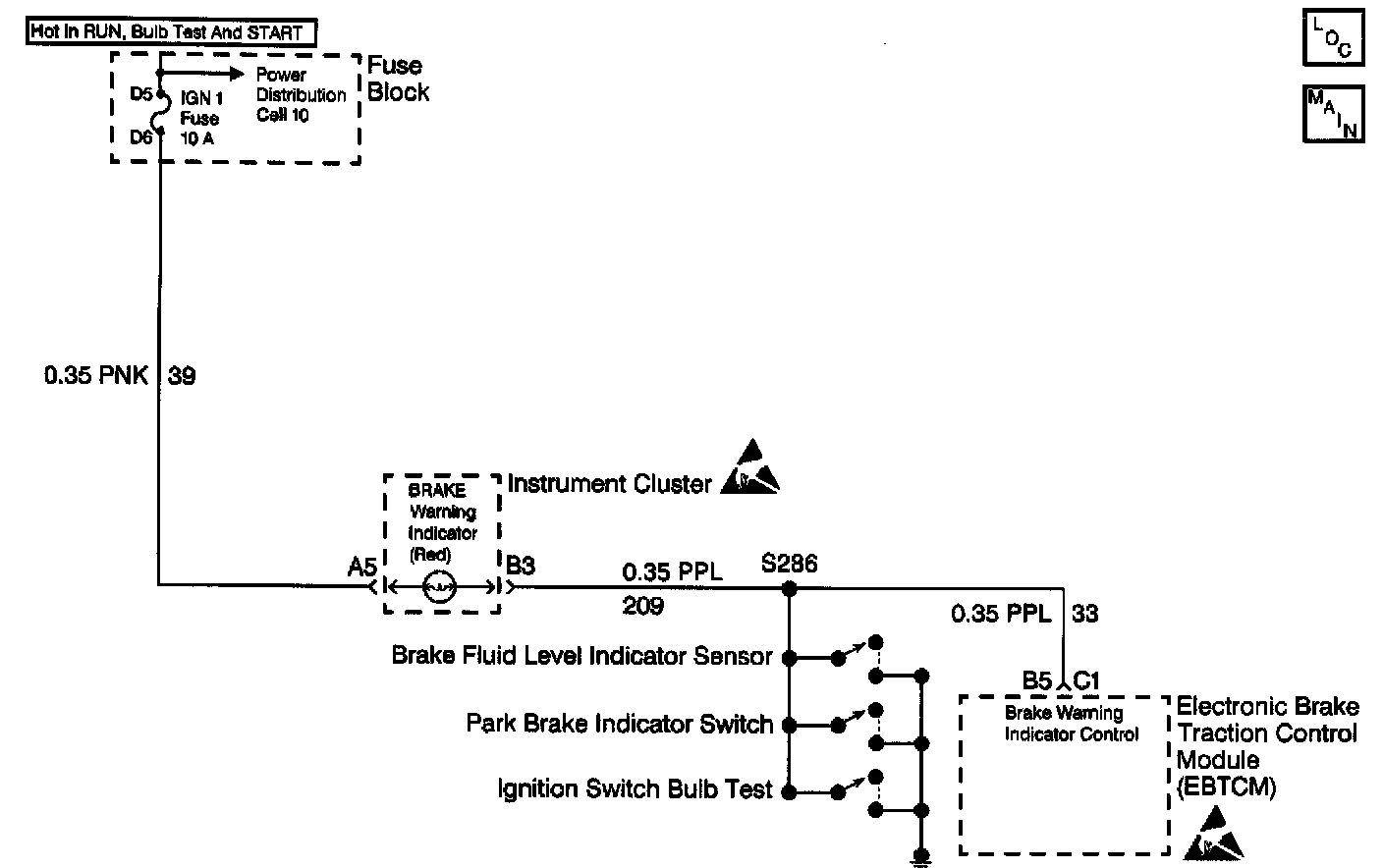

CIRCUIT DESCRIPTION
DTC C1286 is an information only DTC. DTC C1286 reflects the status of the command the EBTCM issues to illuminate the red BRAKE warning indicator. If another DTC issues a command to illuminate the red BRAKE warning indicator, EEPROM will store DTC C1286 as a history DTC at the conclusion of the ignition cycle.

DIAGNOSTIC AIDS
The following ABS mechanical DTCs command the red BRAKE warning indicator to illuminate. The DTCs will also cause EEPROM to store DTC C1286 during shutdown:
- C1238
- C1241
- C1242
- C1246
- C1251

If the motors are not in their home position, the following electrical DTCs will also command the red BRAKE warning indicator on:
- C1214
- C1216
- C1218
- C1255
- C1256
- C1257
- C1258
- C1261
- C1262
- C1263
- C1264
- C1265
- C1266

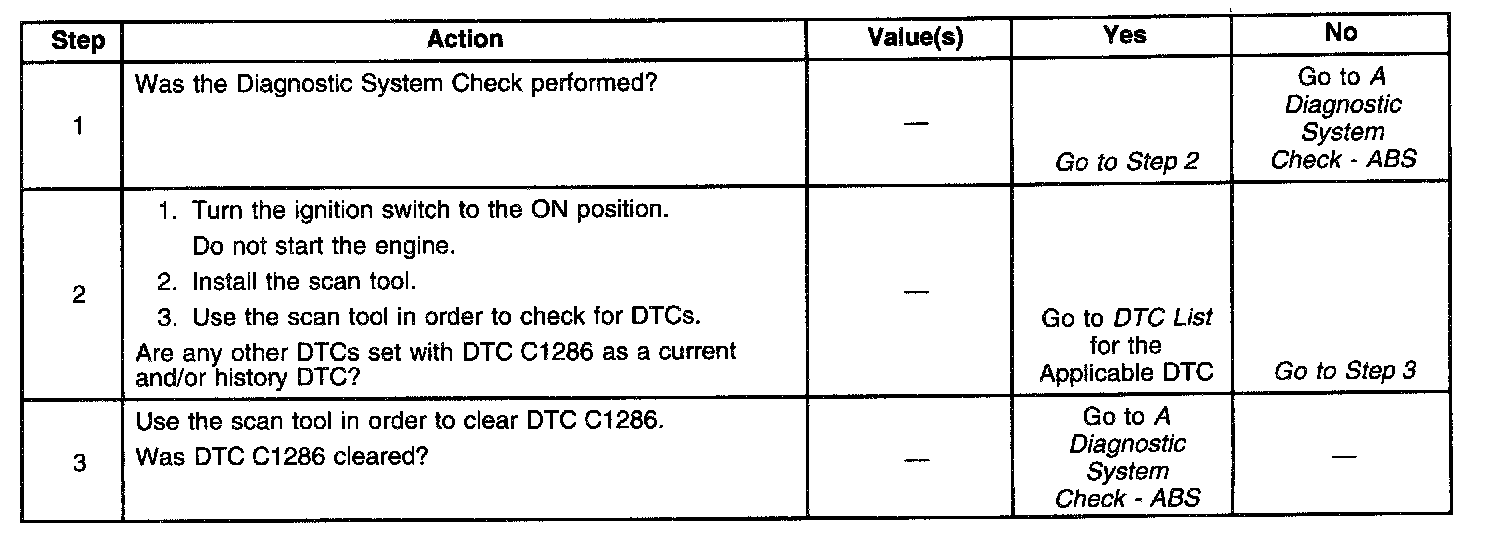

If any of the electrical DTCs are indicated along with DTC C1286, correct the electrical DTCs prior to addressing a DTC C1286 malfunction. Refer to DTC List
