C1275

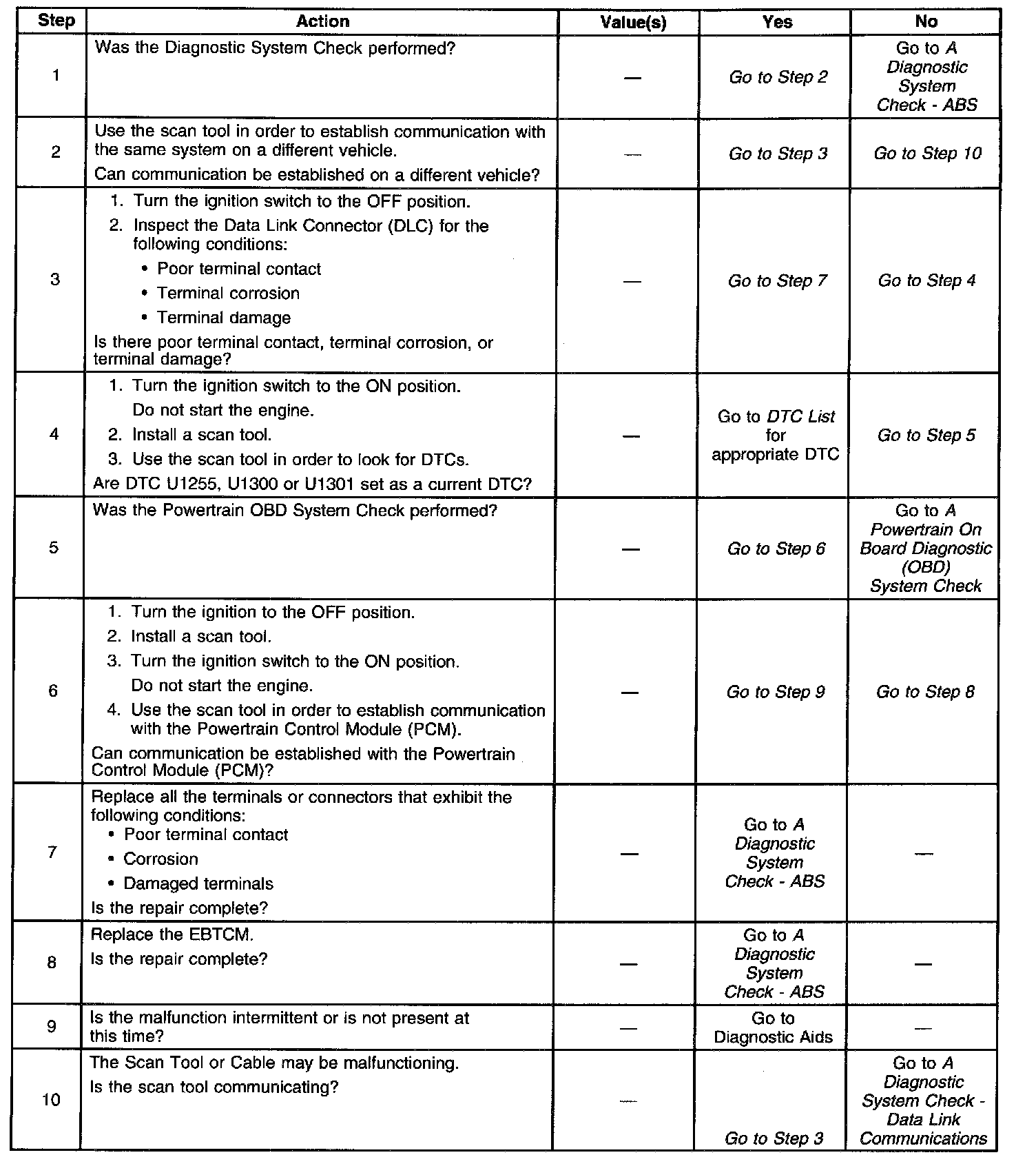

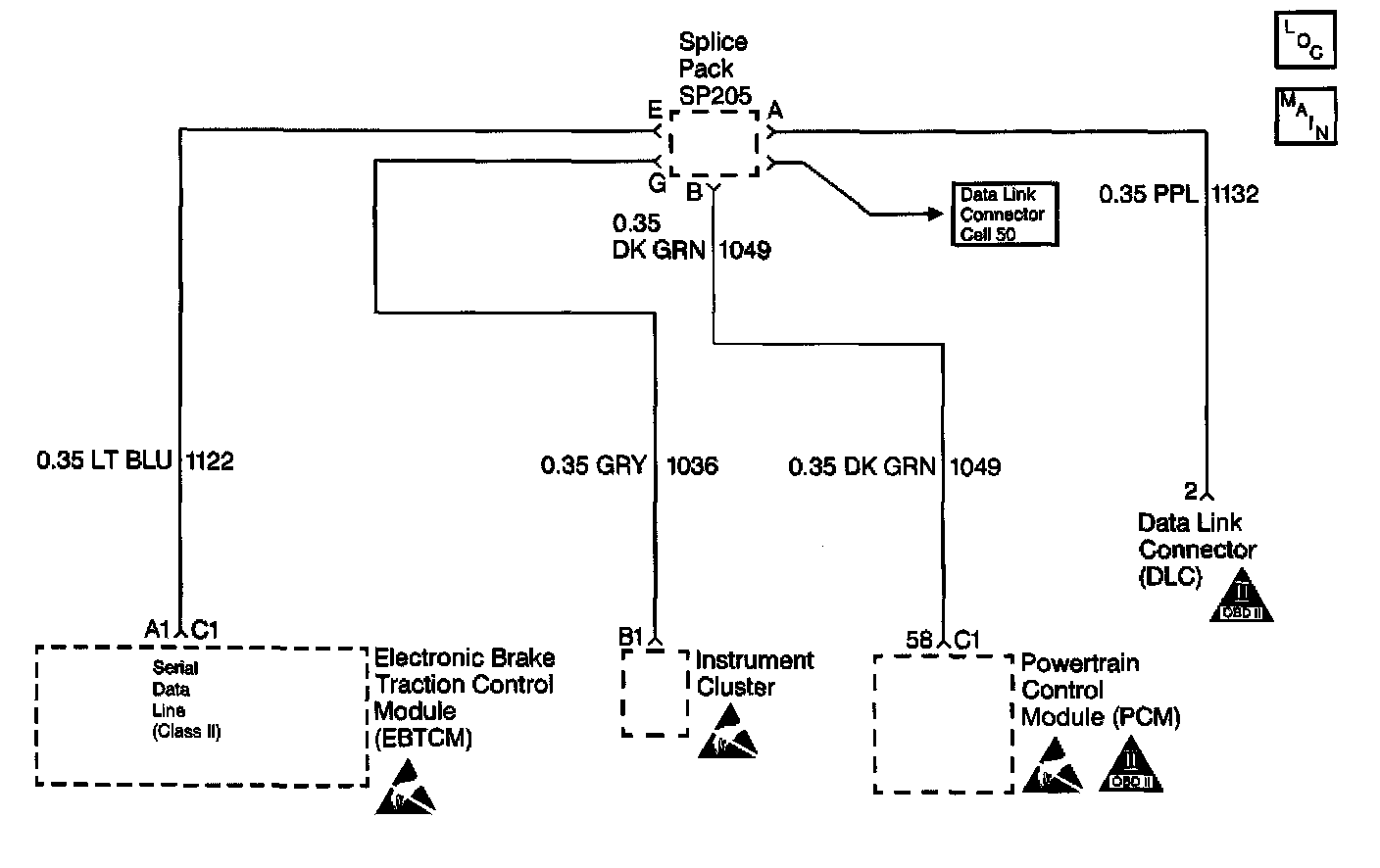

CIRCUIT DESCRIPTION
The serial data communication circuit (CKT 1122, CKT 1132 and CKT 1049) transmits messages from one electronic control module to another when interface between systems is necessary. The ABS/ETS systems depend on information to and from the PCM for proper operation.

CONDITIONS FOR SETTING THE DTC
DTC C1275 will set if either of the following conditions occurs:
- The vehicle speed is greater than 5 km/h (3 mph) and a malfunction exists on the serial data circuit.
- The PCM has not broadcasted a serial message for at least 10 seconds.

ACTION TAKEN WHEN THE DTC SETS
- A malfunction DTC stores.
- The ETS disables.
- The amber ETS warning indicator turns on.
- The ABS remains functional.
- No action towards the Electronic Brake Control
Relay and ABS warning indicator is taken.

CONDITIONS FOR CLEARING THE DTC
- The condition responsible for setting the DTC no longer exists and the Scan Tool Clear DTCs function is used.
- 100 drive cycles pass with no DTC detected.

DIAGNOSTIC AIDS
When DTC 1275 is current (malfunction in CKT 1122, CKT 1132 or CKT 1049), no communication can be established with the scan tool. When the malfunction is removed, DTC C1275 will be stored in system memory.
If the malfunction is not current, use wiggle test on the wiring harness to pinpoint an intermittent malfunction in the motor circuitry or connections. Thoroughly inspect any circuitry that may be causing the intermittent complaint for the following conditions:
- Backed out terminals
- Improper mating
- Improperly formed or damaged terminals
- Poor terminal-to-wiring connections
- Physical damage to the wiring harness
- Rubbed-through wire insulation
- A broken wire inside the insulation
