C1274

Part 1 Of 2:

Part 2 Of 2:

CIRCUIT DESCRIPTION

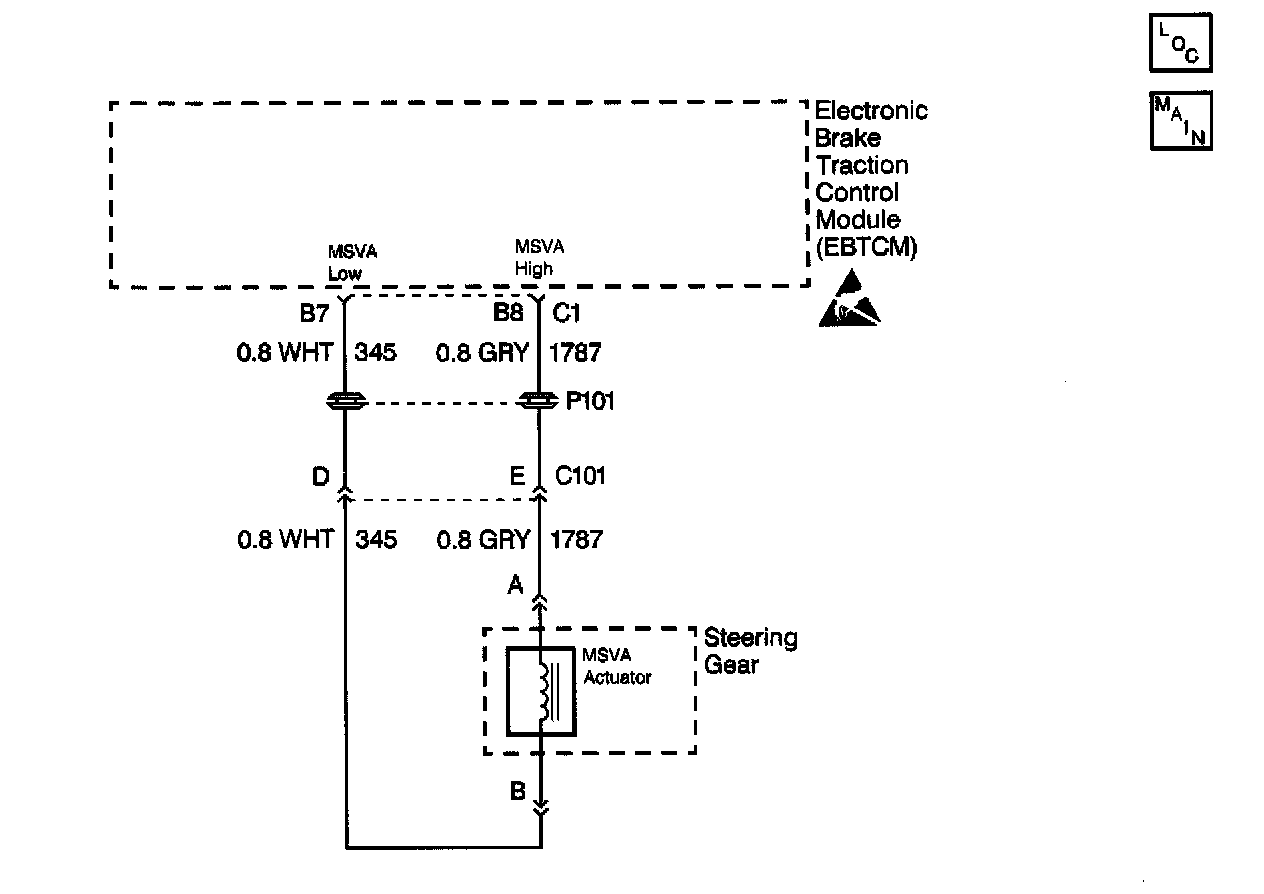

When the Electronic Brake Traction Control Module (EBTCM) commands the electronic brake control relay ON, B+ is supplied through the EBTCM connector C1 terminal Be to the MAGNASTEER actuator connector terminal A. Ground/control for the MAGNASTEER actuator is provided through the EBTCM connector C1 terminal B7 to MAGNASTEER actuator connector terminal B. The EBTCM controls the amount of current supplied to the MAGNASTEER actuator based on the input from the wheel speed sensors.

CONDITIONS FOR SETTING THE DTC
- DTC C1274 can be set once the electronic brake control relay is commanded ON.
- Voltage drop is greater than 2.5V across the MAGNASTEER actuator driver.

ACTION TAKEN WHEN THE DTC SETS
- The EBTCM stores DTC C1274 in memory.
- The Antilock Brake System (ABS) is not disabled.
- The amber ABS warning indicator lamp does not turn on.
- The power steering returns to full assist.

CONDITIONS FOR CLEARING THE DTC
DTC C1274 setting conditions no longer exist when the ignition switch is turned off.

DIAGNOSTIC AIDS

The following conditions may cause this malfunction to occur:
- A short to B+ in circuit 345 or 1787.
- Circuit 345 and 1787 shorted together.
- Faulty MSVA actuator.
- Rubbed-through wire insulation.
- Improperly formed or damaged terminals.
- Physical damage to the wiring harness.
Ensure that all the ABS DTCs are diagnosed and corrected prior to cleaning VES DTCs. Cleaning the VES DTCs will automatically clear the ABS DTCs resulting in a loss of DTC history data. Refer to Diagnostic System Check - ABS in Antilock Brake System for more information.
Use the enhanced diagnostic function of the scan tool in order to measure the frequency of the malfunction. Refer to Enhanced Diagnostics for more information.

IMPORTANT: Zero the J 39200 (DMM) test leads prior to making any resistance measurements. Refer to J 39200 user's manual.

Clear the DTCs after completing the diagnosis. Test drive the vehicle for three drive cycles in order to verify that the DTC does not reset. Use the following procedure in order to complete one drive cycle:
1. Start the vehicle.
2. Drive the vehicle over 16 km/h (10 mph).
3. Stop the vehicle.
4. Turn the ignition switch off.

TEST DESCRIPTION

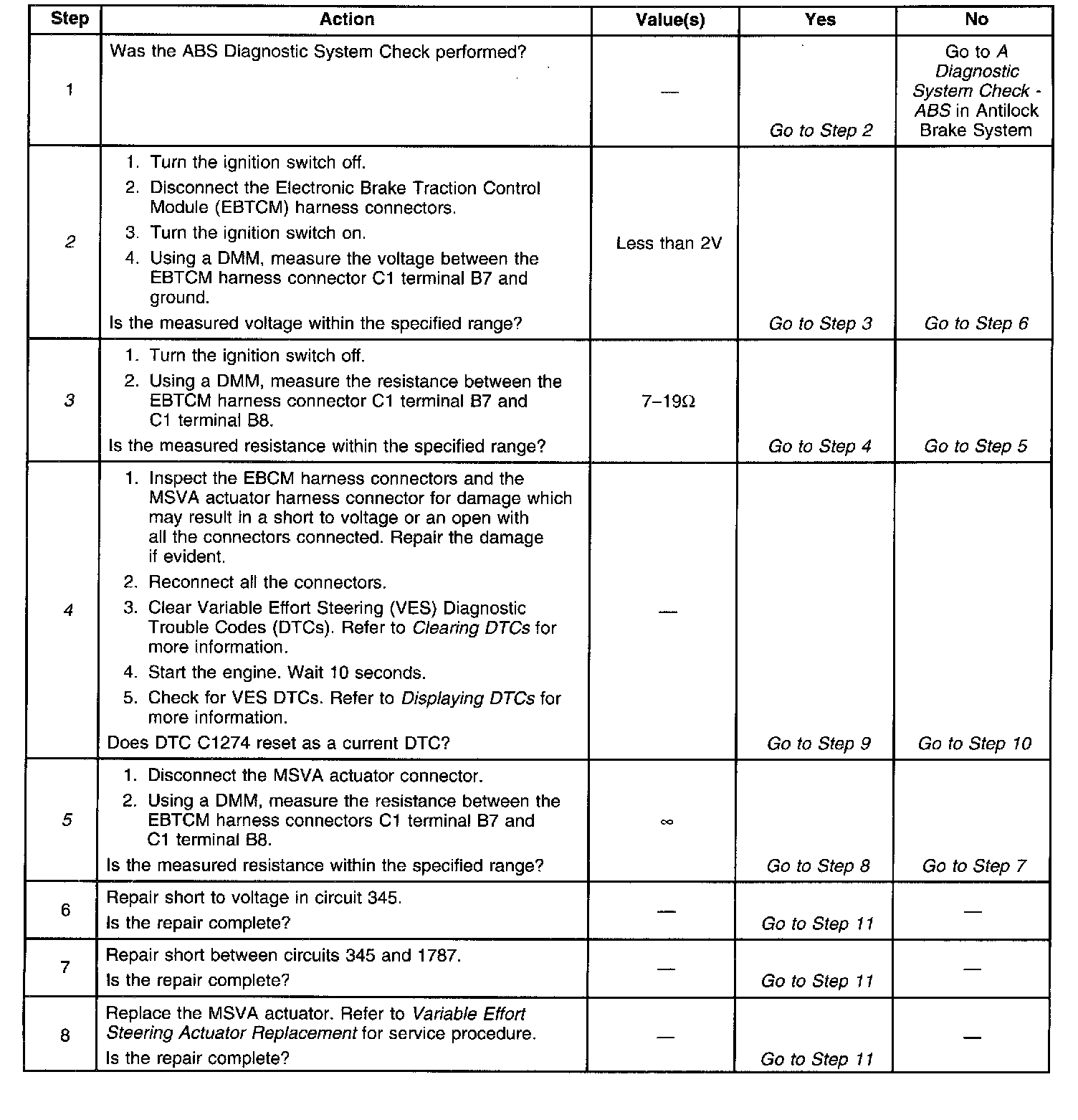

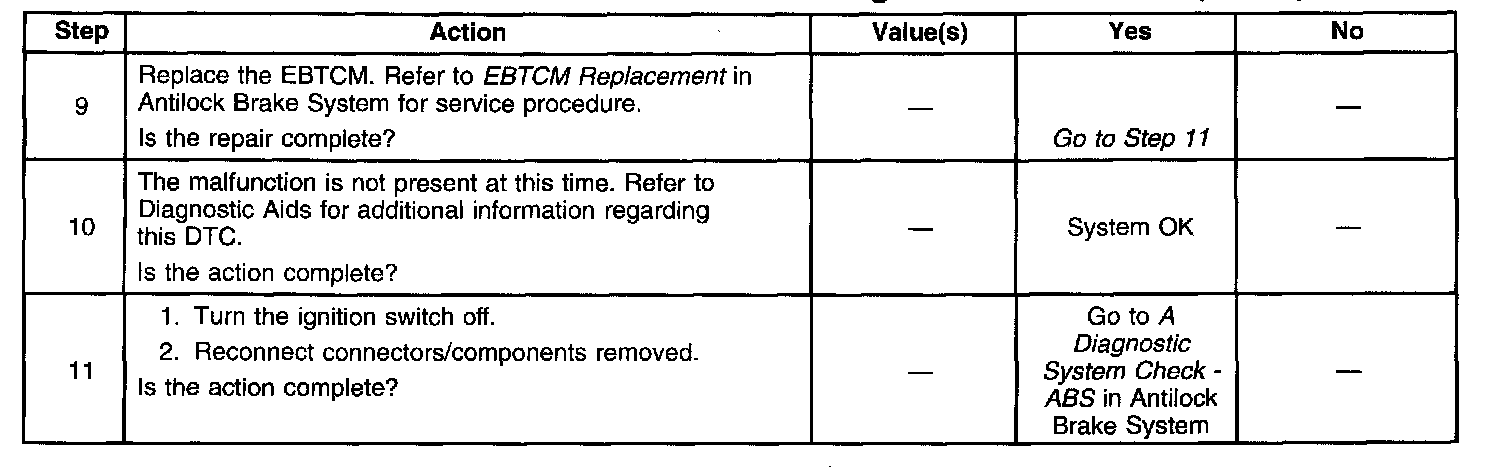

The number(s) below refer to the step number(s) on the diagnostic table.
2. This step checks for a short to B+ in circuit 345.
3. This step checks for proper resistance value of the MSVA actuator.
4. This step determines whether the EBTCM is faulty or the malfunction is intermittent.
5. This step determines whether the MSVA actuator is faulty or circuits 345 and 1787 are shorted to-tether.
