C1254

Part 1 Of 2:

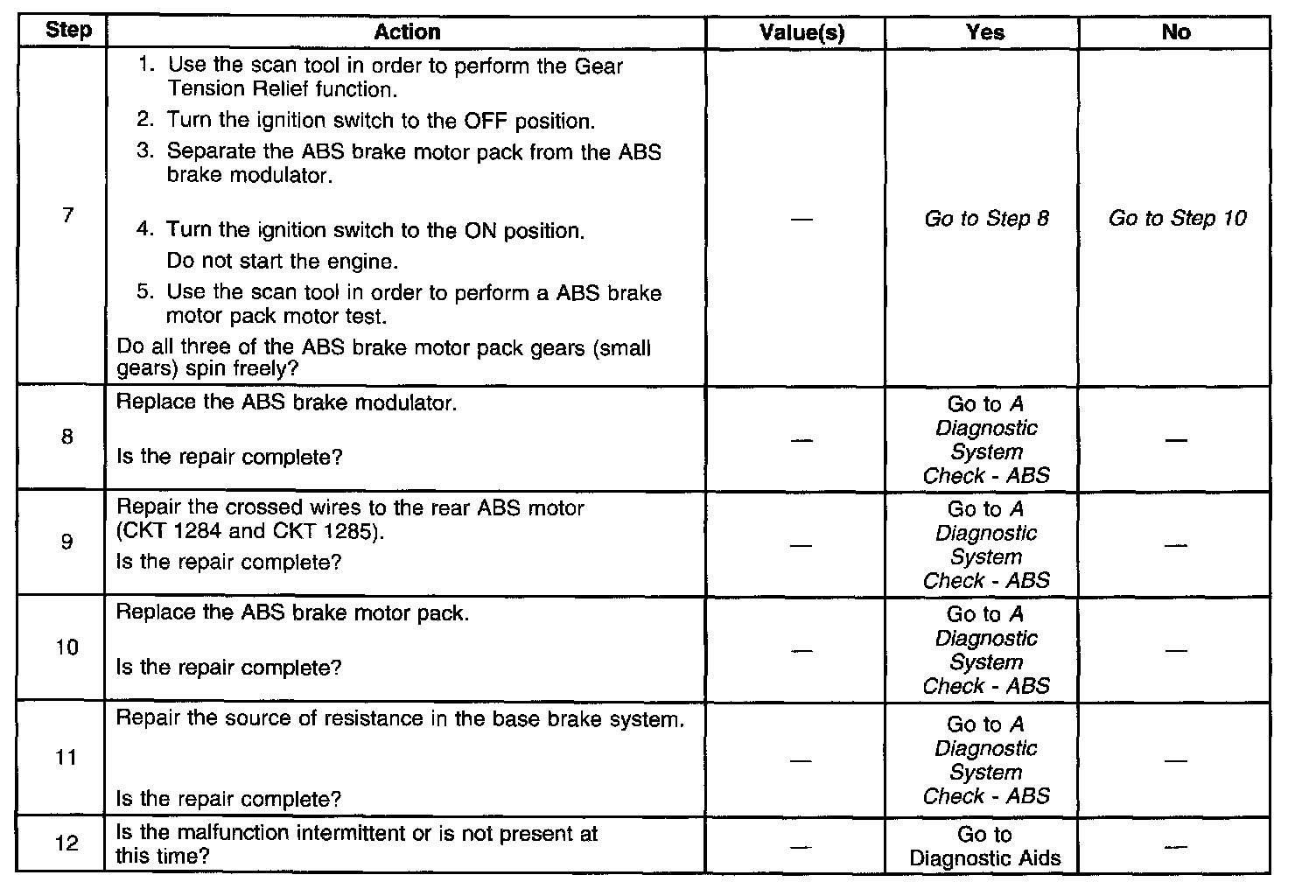

Part 2 Of 2:

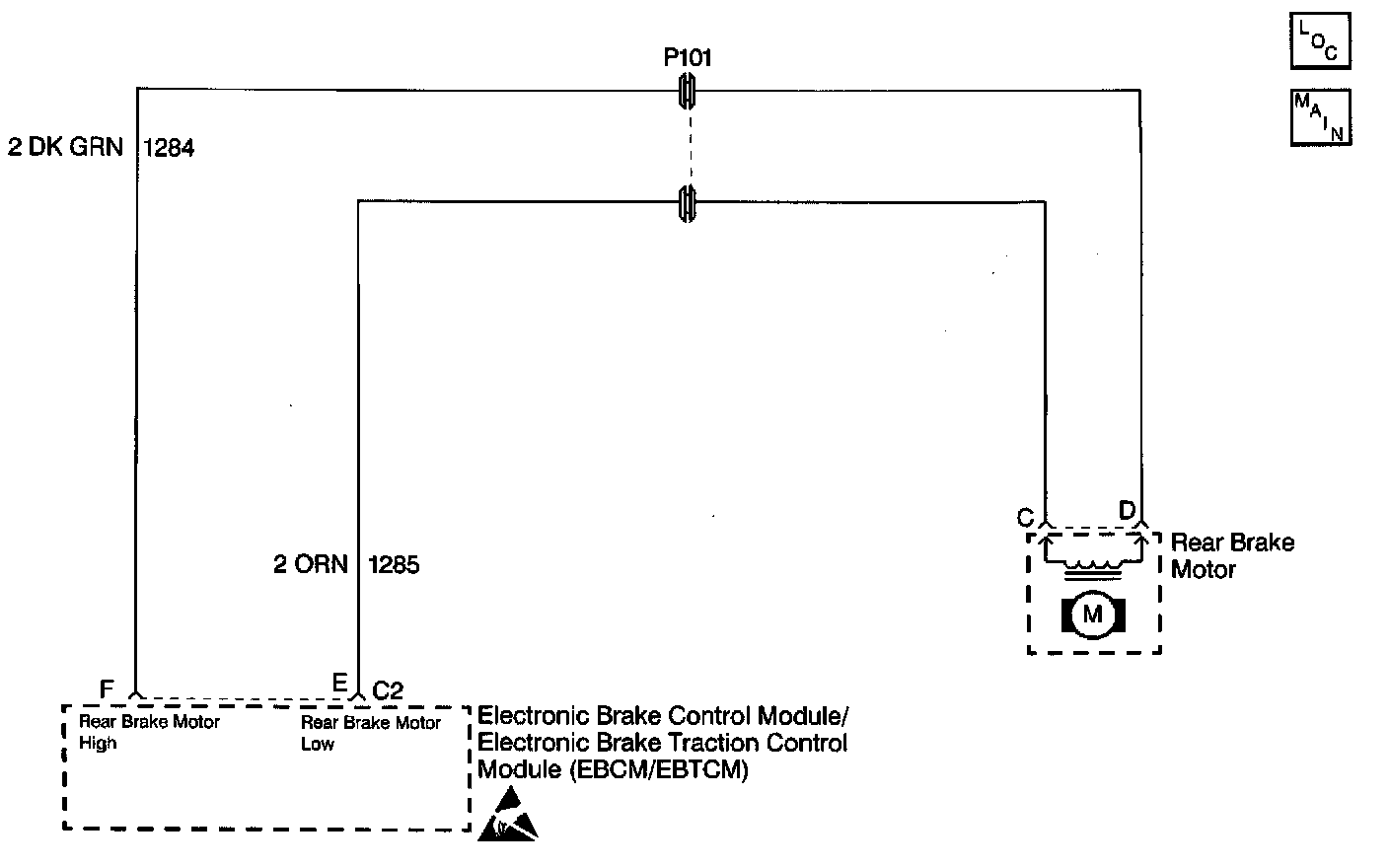

CIRCUIT DESCRIPTION
DTC C1254 diagnoses an ABS motor that energizes longer than expected. The following conditions may cause the longer period of being energized:
- A wheel speed sensor malfunctions.
- The ABS motor does not turn.
- The ABS brake motor wires cross.

CONDITIONS FOR SETTING THE DTC
DTC C1254 can only set during an ABS stop. A malfunction exists if the following conditions occur:
- The EBTCM commands the rear channel in release for greater than three seconds.
- A difference of greater than 11 km/h (7 mph) exists between the vehicle reference speed and the maximum rear axle wheel speed.

A malfunction exists if the following conditions occur:
- The EBTCM commands the rear channel in release for greater than four seconds.
- A difference of less than 11 km/h (7 mph) exists between the vehicle reference speed and the maximum rear axle wheel speed.

ACTION TAKEN WHEN THE DTC SETS
- A malfunction DTC stores.
- The ABS/ETS disables.
- The amber ABS/ETS warning indicators turn on.

CONDITIONS FOR CLEARING THE DTC
- The condition responsible for setting the DTC no longer exists and the Scan Tool Clear DTCs function is used.
- 100 drive cycles pass with no DTCs detected.

DIAGNOSTIC AIDS
The following conditions may cause an intermittent malfunction if the conditions exist in a mechanical portion of the system:
- Sticking
- Binding

Inspect for and correct the following conditions in the base brake or suspension system before proceeding with the DTC diagnosis:
- Excessive drag
- High resistance

Use the Scan Tool hydraulic test in order to ensure the total brake system is functional. Thoroughly inspect any circuitry that may be causing the intermittent complaint for the following conditions:
- Backed out terminals
- Improper mating
- Broken locks
- Improperly formed or damaged terminals
- Poor terminal-to-wiring connections
- Physical damage to the wiring harness

Clear the DTCs after completing the diagnosis. Test drive the vehicle for three drive cycles in order to verify that the DTC does not reset. Use the following procedure in order to complete one drive cycle:
1. Start the vehicle.
2. Drive the vehicle over 16 km/h (110 mph).
3. Stop the vehicle.
4. Turn the ignition to the OFF position.
