C1226

Part 1 Of 2:

Part 2 Of 2:

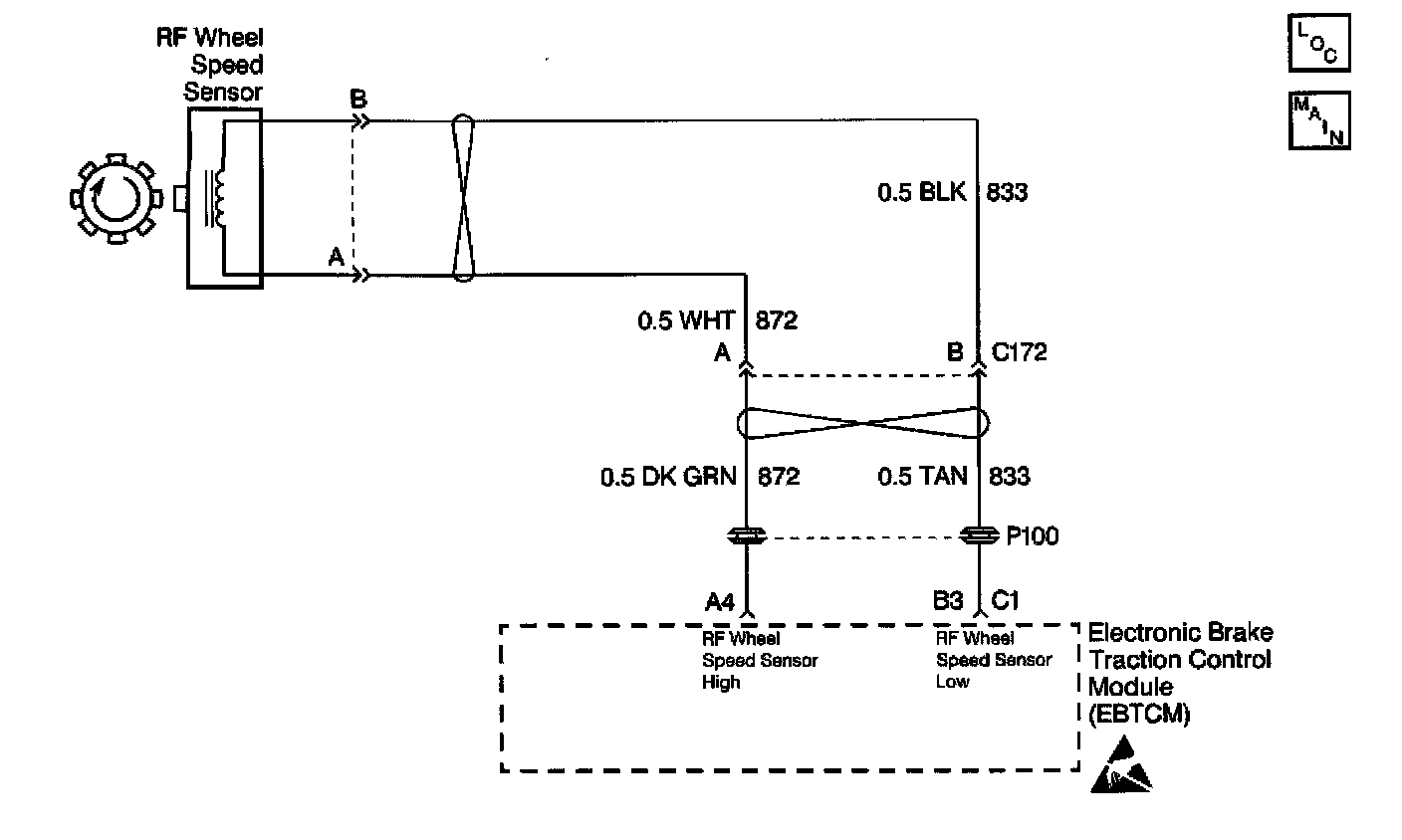

CIRCUIT DESCRIPTION
As a toothed ring passes by the wheel speed sensor, changes in the electromagnetic field cause the wheel speed sensor to produce a AC voltage signal. The frequency of the sinusoidal (AC) voltage signal is proportional to the wheel speed. The amplitude of the AC voltage signal is directly related to wheel speed and the proximity of the wheel speed sensor to the toothed ring. The proximity of the wheel speed sensor to the toothed ring is also referred to as the air gap.

CONDITIONS FOR SETTING THE DTC
DTC C1226 can set when the brake is off.
DTC C1226 detects a situation in which the right front wheel acceleration or deceleration is beyond specified limits.

ACTION TAKEN WHEN THE DTC SETS
- A malfunction DTC stores.
- The ABS/ETS disables.
- The amber ABS/ETS warning indicator turn on.

CONDITIONS FOR CLEARING THE DTC
- The condition responsible for setting the DTC no longer exists and the Scan Tool Clear DTCs function is used.
- 100 drive cycles pass with no DTCs detected.

DIAGNOSTIC AIDS
Many conditions may cause an intermittent malfunction. Proper use of the scan tool enhanced diagnostic function can be used in order to measure the frequency of the fault. Thoroughly inspect any circuitry that may be causing the intermittent complaint for the following conditions:
- Backed out terminals
- Improper mating
- Improperly formed or damaged terminals
- Poor terminal-to-wiring connections
- Rubbed-through wire insulation
- A broken wire inside the insulation

If the customer's comments reflect that the amber ABS warning indicator is on only during moist environmental changes (rain, snow, vehicle wash), inspect all the wheel speed sensor circuitry for signs of water intrusion.
If the DTC is not current, clear all DTCs and simulate the effects of water intrusion by using the following procedure:
1. Spray the suspected area with a five percent saltwater solution.
Add two teaspoons of salt to twelve ounces of water to make a five percent saltwater solution.
2. Test drive the vehicle over various road surfaces (bumps, turns, etc.) above 24 km/h (15 mph) for at least 30 seconds.
3. If the DTC returns, replace the suspected harness.

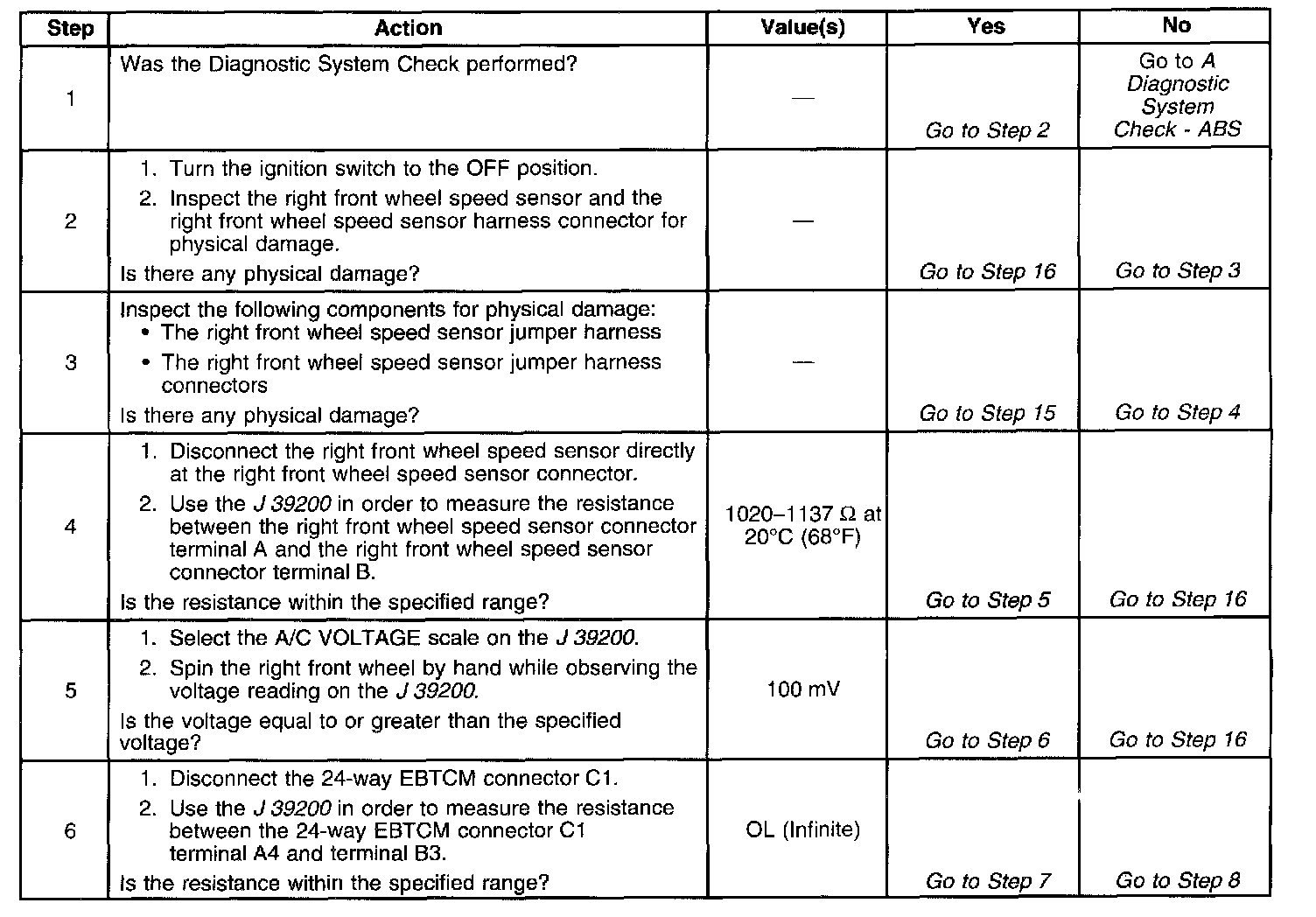

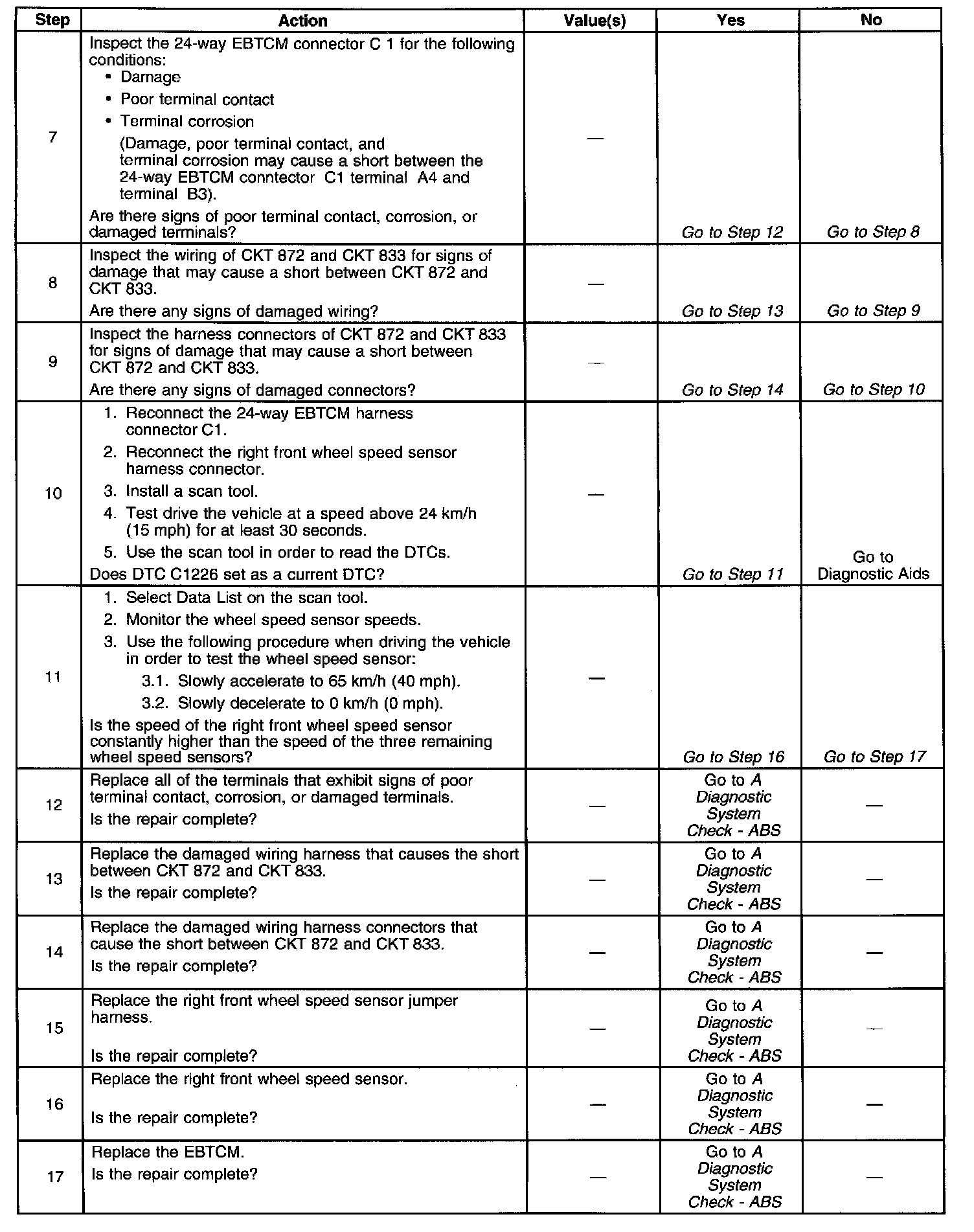

Difficulty may occur when trying to locate intermittent malfunctions in the wheel speed sensor. Do not disturb any of the electrical connections. Change electrical connections only when instructed to do so by a step in the diagnostic table. Changing the electrical connections at the correct time will ensure that an intermittent concern is found.

FRONT WHEEL SPEED SENSOR RESISTANCE
Resistance of the wheel speed sensor will increase with an increase in sensor temperature.

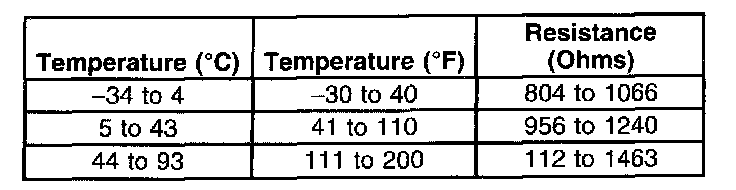

The following table contains resistance values for the front wheel speed sensors at varying temperatures for use in diagnosis. The values are approximate and should be used as a guideline for diagnosis.
