C1215

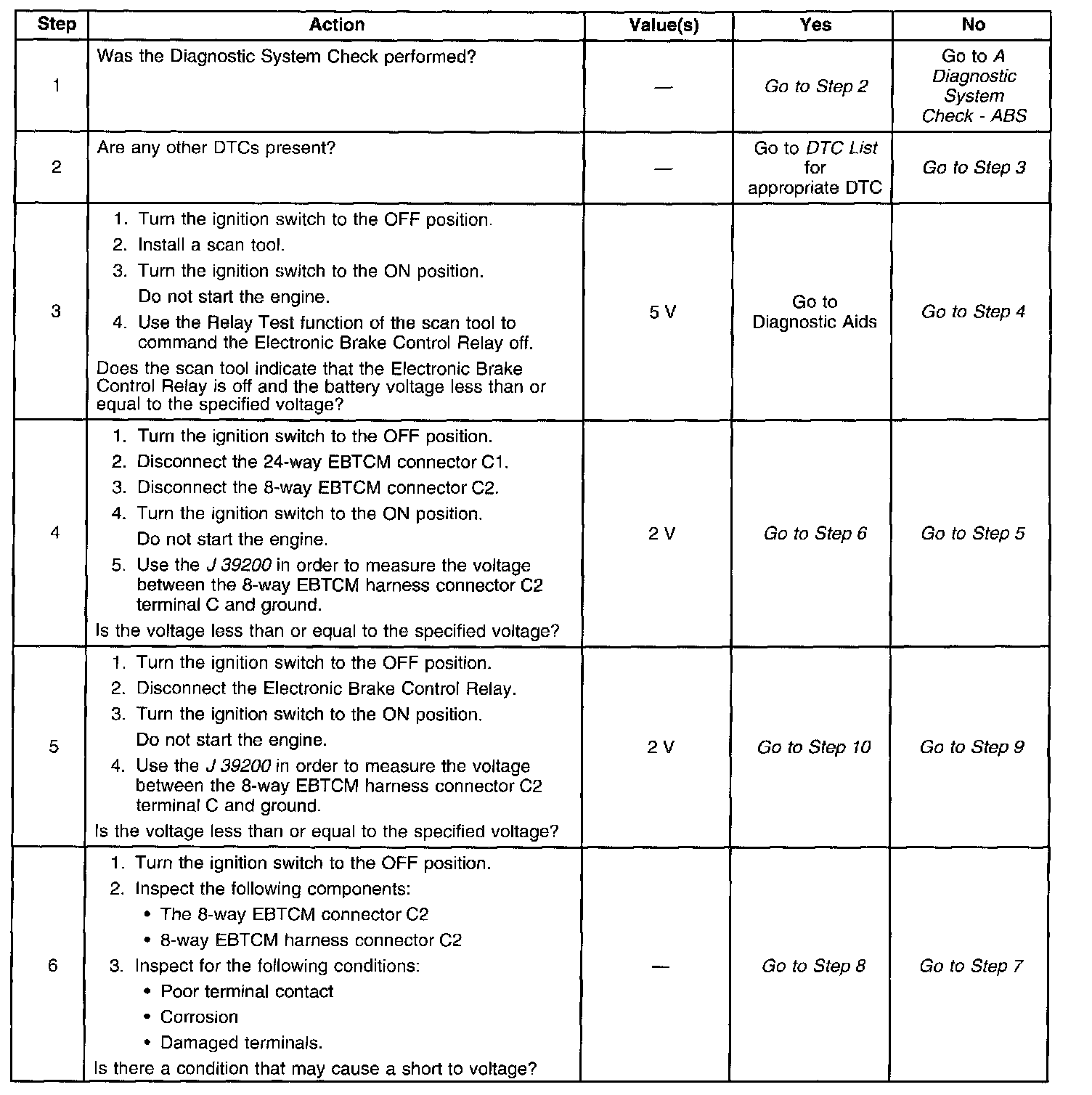

Part 1 Of 2:

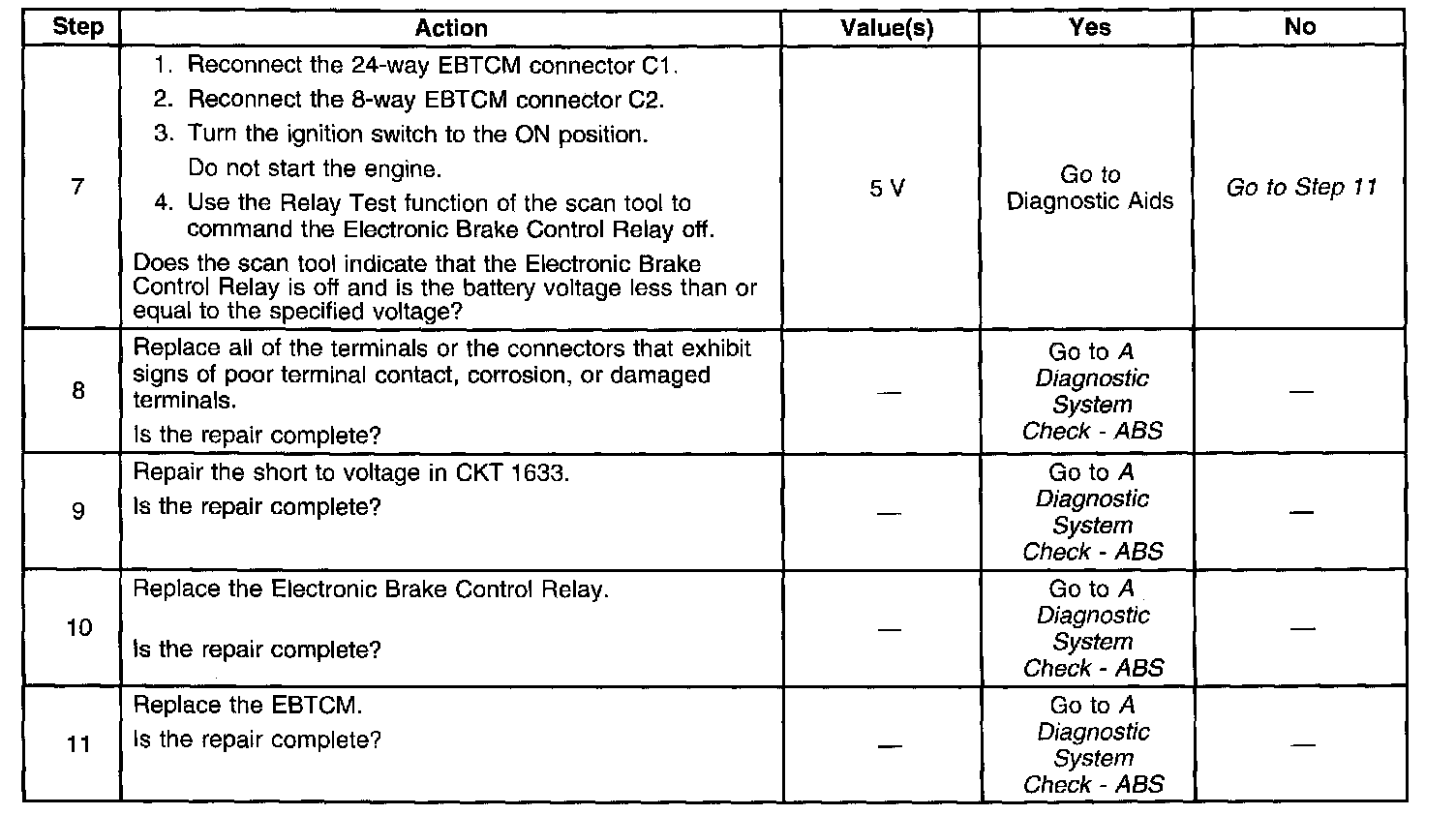

Part 2 Of 2:

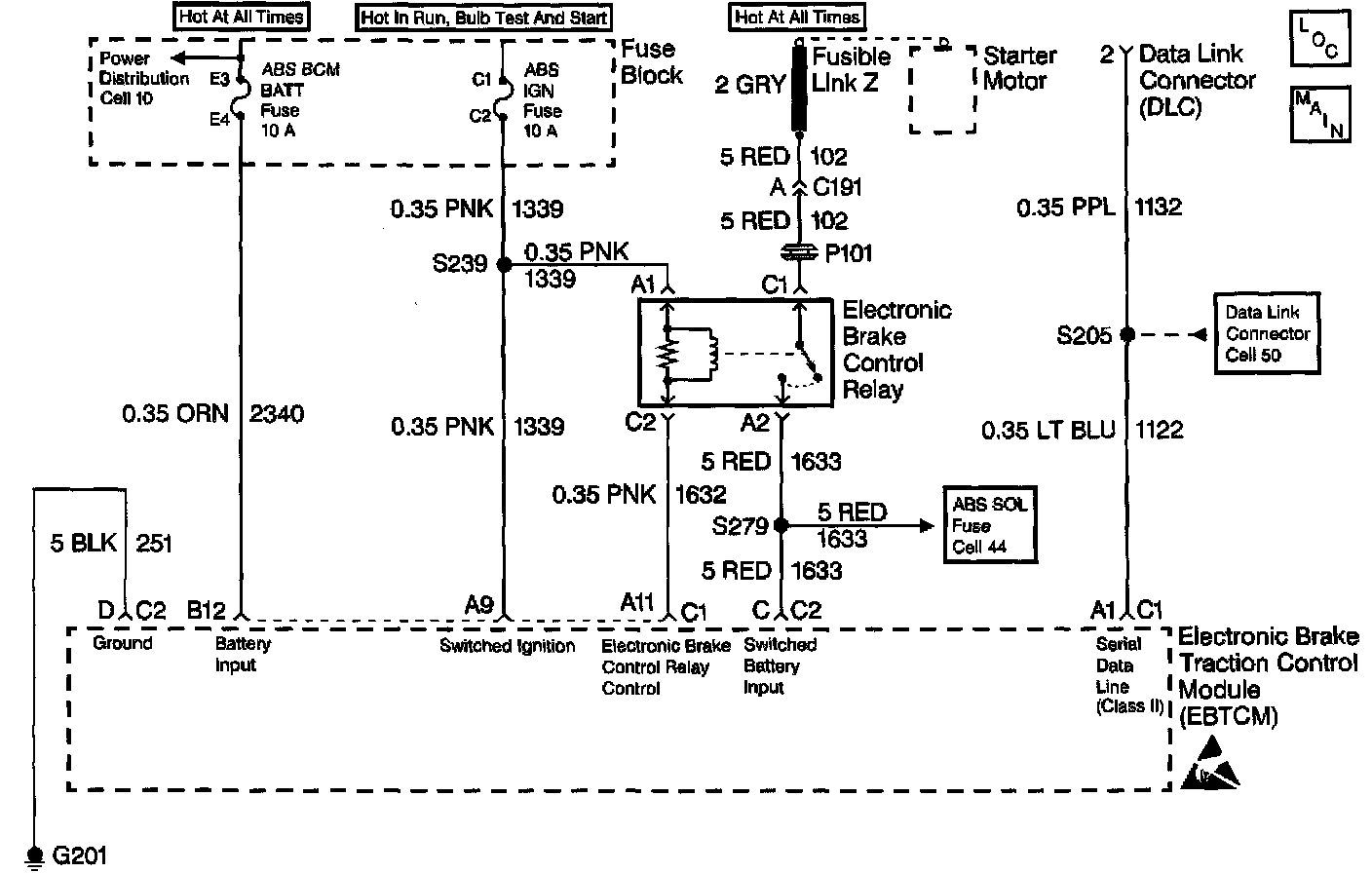

CIRCUIT DESCRIPTION
Ignition voltage is supplied through terminal A1 of the Electronic Brake Control Relay. The above condition enables the EBTCM to energize the pull-in coil by completing the ground circuit at connector C1 terminal A11 of the EBTCM. The magnetic field created closes the Electronic Brake Control Relay contacts. The magnetic field also allows battery voltage and current through the Electronic Brake Control Relay terminal C1 to be supplied to the EBTCM through connector C2 terminal C and to the brake solenoid valves through S279.

CONDITIONS FOR SETTING THE DTC
DTC C1215 can set only before the EBTCM commands the Electronic Brake Control Relay on.
DTC C1215 determines it the Electronic Brake Control Relay energizes when the Electronic Brake Control Relay should not energize. The above malfunction will not allow the Electronic Brake Control Relay to remove power to the ABS/ETS system.
If a second malfunction occurs, that requires the Electronic Brake Control Relay to turn off, the second malfunction cannot be removed if the Electronic Brake Control Relay cannot be controlled. The DTC sets if the malfunction is present for three consecutive drive cycles.

ACTION TAKEN WHEN THE DTC SETS
- A malfunction DTC is stored.
- The ABS/ETS does not disable.

CONDITIONS FOR CLEARING THE DTC:
- The condition responsible for setting the DTC no longer exists and the Scan Tool Clear DTCs function is used.
- 100 drive cycles pass with no DTCs detected.

DIAGNOSTIC AIDS
Many conditions may cause an intermittent malfunction. Proper use of the scan tool enhanced diagnostic function can be used in order to measure the frequency of the fault. Thoroughly inspect any circuitry that may be causing the intermittent complaint for the following conditions:
- Backed out terminals
- Improper mating
- Improperly formed or damaged terminals
- Poor terminal-to-wiring connections
- Rubbed-through wire insulation
- A broken wire inside the insulation

Clear all of the DTCs after completing the diagnosis. Test drive the vehicle for three drive cycles in order to verify that the DTC does not reset. Use the following procedure in order to complete one drive cycle:
1. Start the vehicle.
2. Drive the vehicle over 16 km/h (10 mph).
3. Stop the vehicle.
4. Turn the ignition to the OFF position.
