C1214

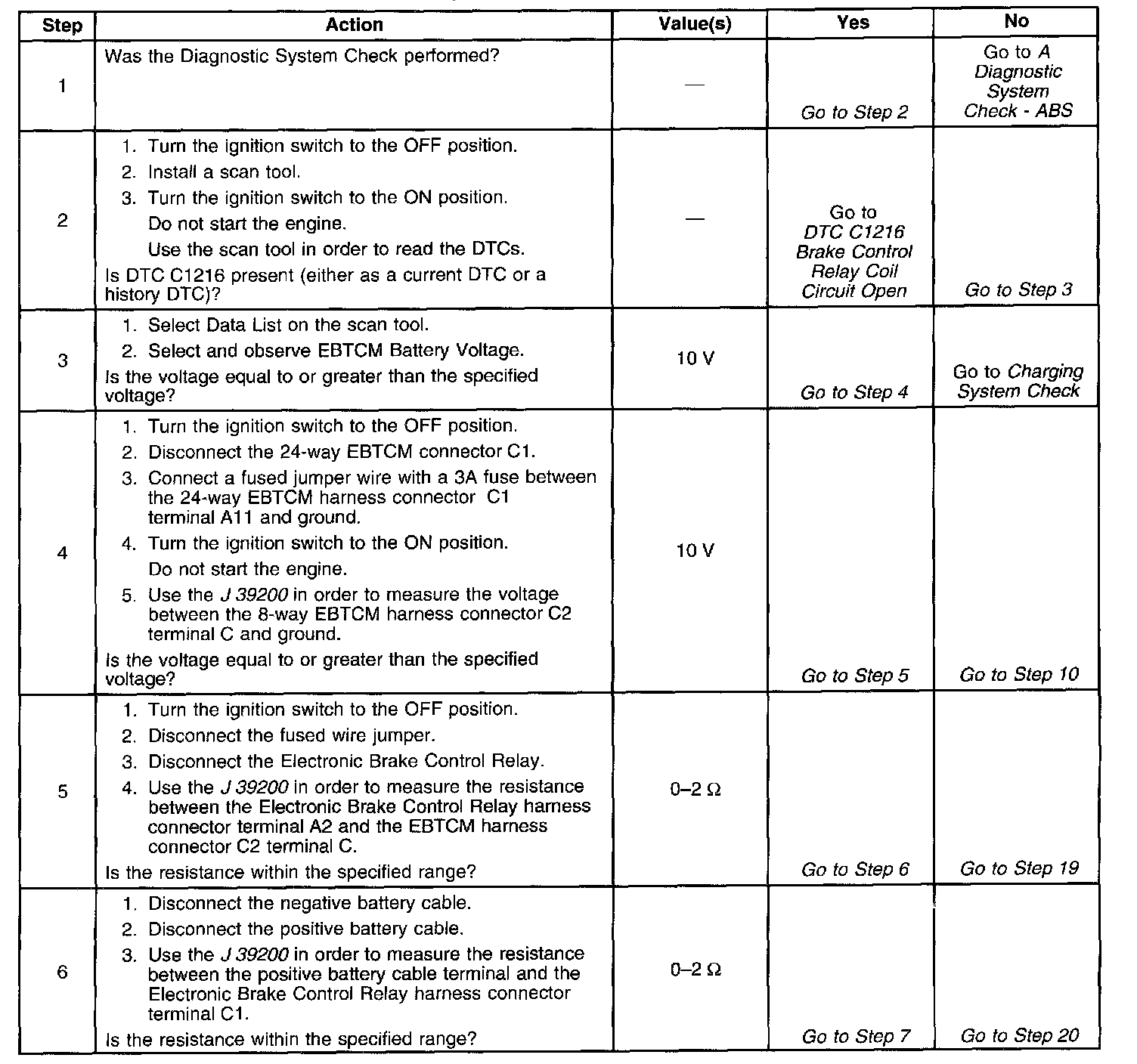

Part 1 Of 3:

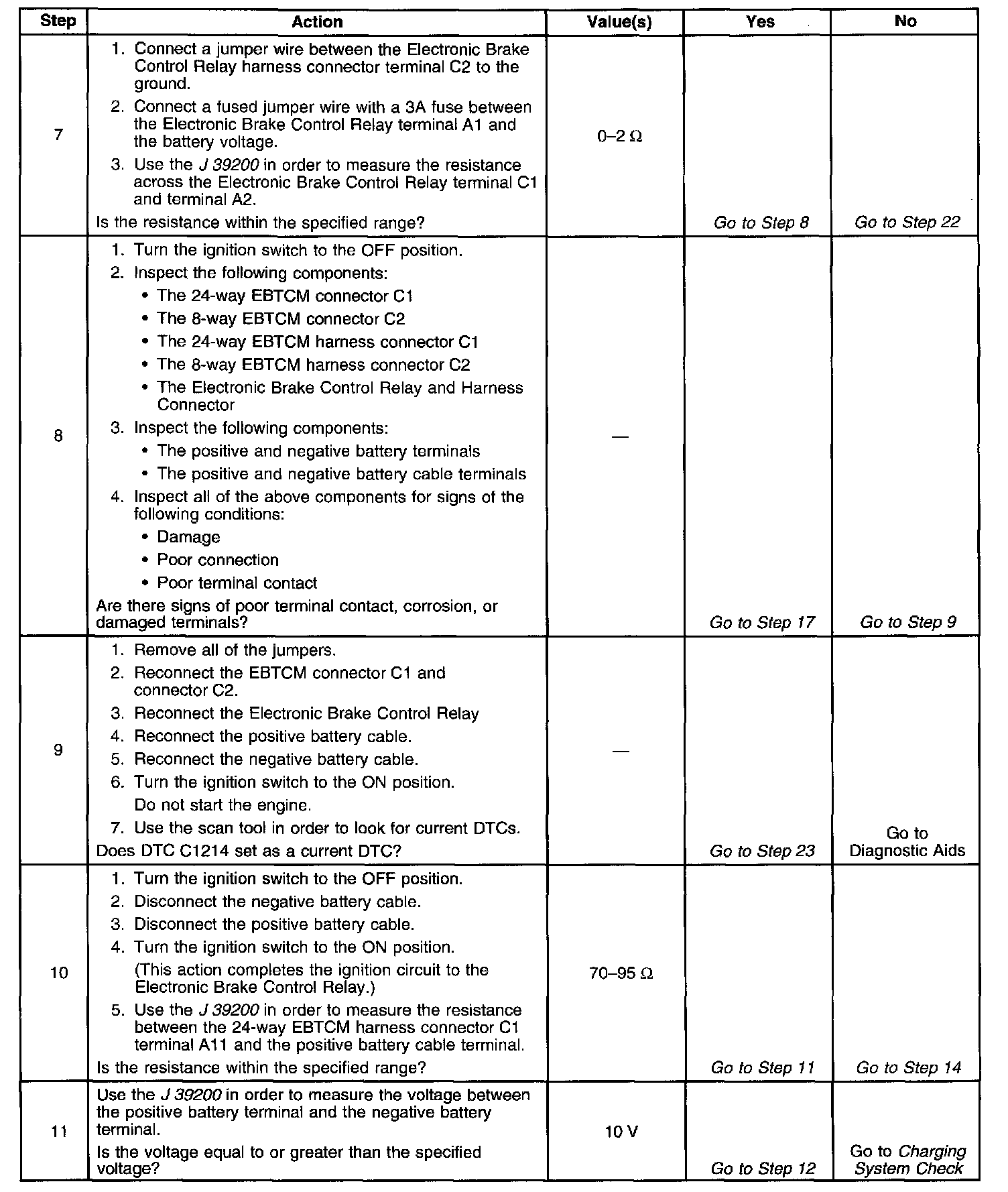

Part 2 Of 3:

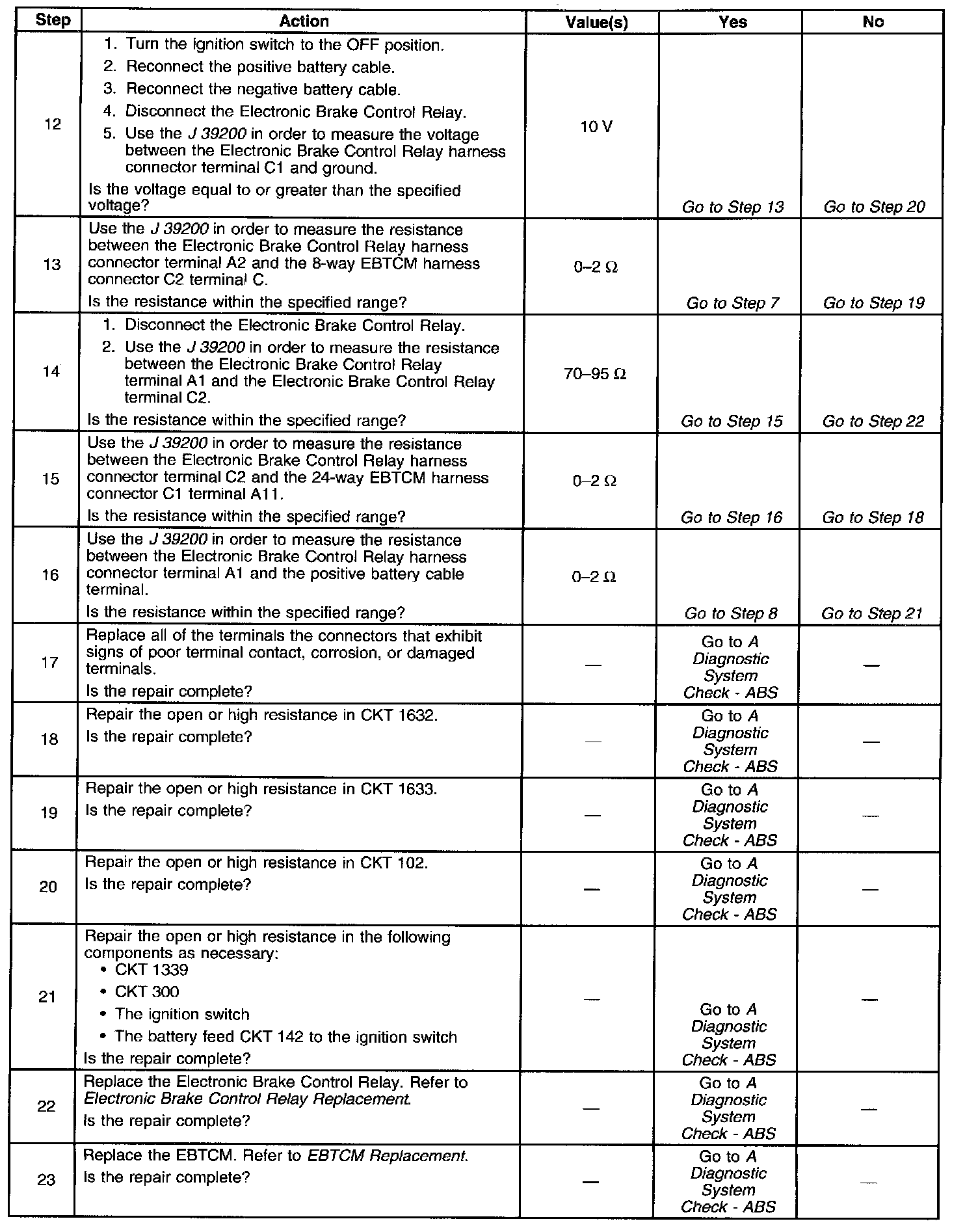

Part 3 Of 3:

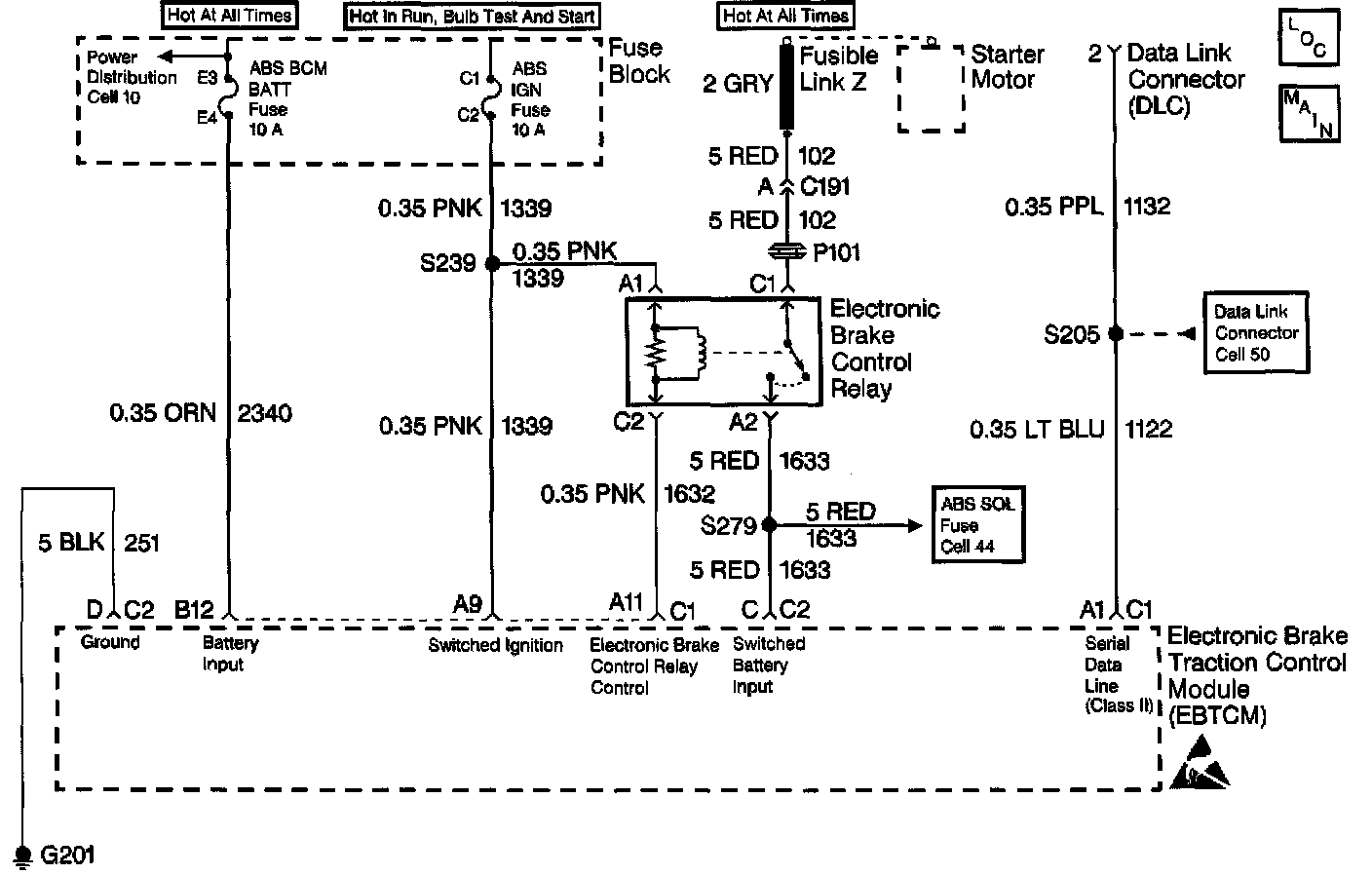

CIRCUIT DESCRIPTION
Ignition voltage is supplied through terminal A11 of the Electronic Brake Control Relay. The above condition enables the EBTCM to energize the pull-in coil by completing the ground circuit at connector C1 terminal A11 of the EBTCM. The magnetic field created closes the Electronic Brake Control Relay contacts. The magnetic field also allows battery voltage and current through the Electronic Brake Control Relay terminal C1 to be supplied to the EBTCM through connector C2 terminal C and to the brake solenoid valves through S279.

CONDITIONS FOR SETTING THE DTC
DTC C1214 can set anytime after the EBTCM commands the Electronic Brake Control Relay on. The command occurs during the three second bulb check.
DTC C1214 monitors the availability of current/voltage to the motors and solenoids.
The above malfunction indicates voltage is not available. The malfunction will not allow ABS/ETS operation.

ACTION TAKEN WHEN THE DTC SETS
- A malfunction DTC stores.
- The ABS/ETS disables.
- The amber ABS/ETS warning indicators turn on.
- The red BRAKE warning indicator turns on if the rear piston in the ABS brake motor pack is not in the home position.

CONDITIONS FOR CLEARING THE DTC
- The condition responsible for setting the DTC no longer exists and the Scan Tool Clear DTCs function is used.
- 100 drive cycles pass with no DTCs detected.

DIAGNOSTIC AIDS
Many conditions may cause an intermittent malfunction. Proper use of the scan tool enhanced diagnostic function can be used in order to measure the frequency of the fault. Thoroughly inspect any circuitry that may be causing the intermittent complaint for the following conditions:
- Backed out terminals
- Improper mating
- Improperly formed or damaged terminals
- Poor terminal-to-wiring connections
- Rubbed-through wire insulation
- A broken wire inside the insulation


VIBRATION AND TEMPERATURE EFFECTS
- Use the following procedure in order to inspect for vibration effects by performing the Relay Test function of the Scan Tool:
1. With the Relay Test commanded on, lightly tap the top and sides of the Electronic Brake Control Relay while monitoring the Electronic Brake Control Relay voltage.
2. If the Electronic Brake Control Relay voltage changes significantly, replace the Electronic Brake Control Relay.
- If DTC C1214 only sets when the vehicle is initially started in cold ambient conditions (temperature less than O°C (32°F)), replace the Electronic Brake Control Relay.
