C0240

CIRCUIT DESCRIPTION
The PCM monitors various parameters and will not allow traction control operation if any parameter falls below a specified value.

CONDITIONS FOR SETTING THE DTC
The PCM detects a malfunction and then causes TCS shut down until the malfunction has been corrected

ACTION TAKEN WHEN THE DTC SETS
- A DTC C0240 is stored
- The TCS is disabled
- The TRAC OFF indicator is turned on
- If the TCS is again allowed to function, the indicator will be turned off but the DTC will be stored

CONDITIONS FOR CLEARING THE DTC
- The condition for the DTC is no longer present and the scan tool clear DTC function is used
- 100 ignition cycles have passed with no DTCs detected

DIAGNOSTIC AIDS
This code is primarily for information only. As an aid to the technician, this code indicates that there are no problems in the ABS/TCS system, if it is a history code. If it is a current code, the PCM has detected a malfunction within the engine control system that would not allow traction control to function, or there may be a suspect PCM. Refer to Powertrain Control Module Diagnosis in Powertrain Management 3.5 for information on PCM diagnosis.

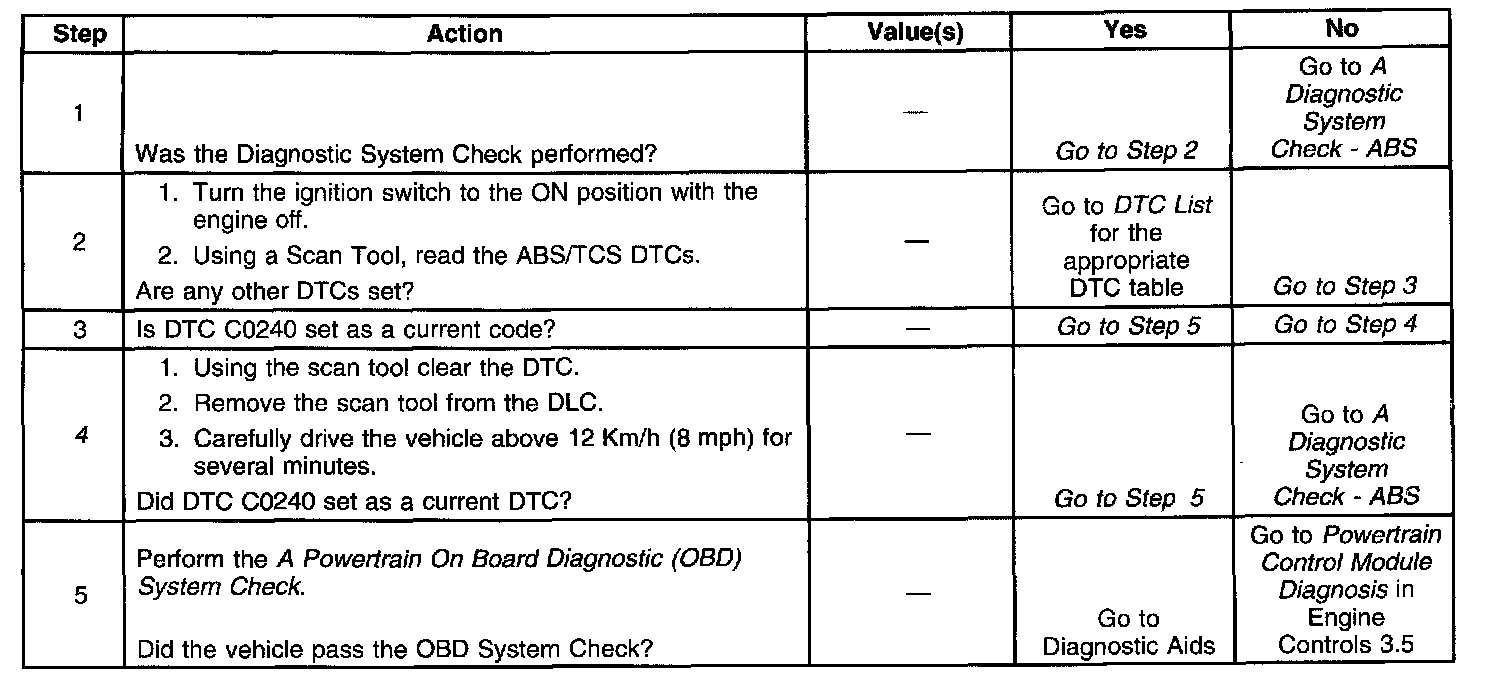

TEST DESCRIPTION
The numbers below refer to the step numbers on the diagnostic table.
4. This step checks if DTC C0240 resets.
