C0035

Part 1 Of 2:

Part 2 Of 2:

CIRCUIT DESCRIPTION

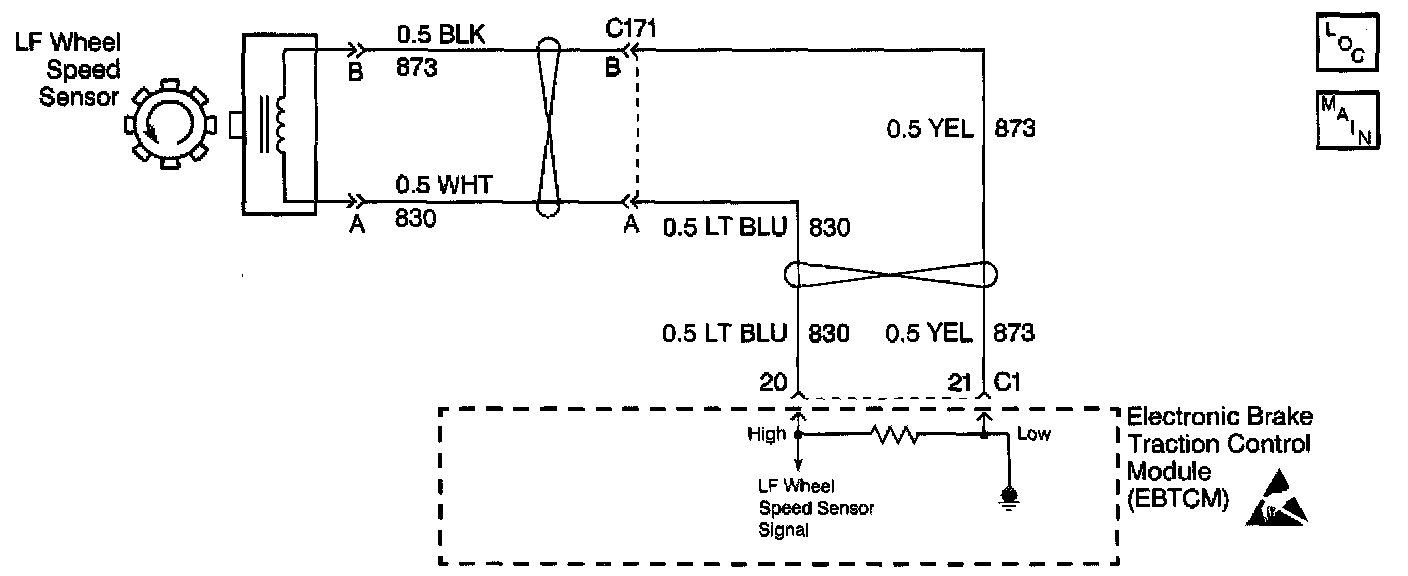

The speed sensor used on this vehicle is a multiple pole magnetic pickup. This sensor produces an AC signal that the EBTCM uses the frequency from to calculate the wheel speed.

CONDITIONS FOR SETTING THE DTC
The DTC can be set any time the ignition is in the ON position and the EBTCM detects an open or a short to voltage.

ACTION TAKEN WHEN THE DTC SETS
- A malfunction DTC stores.
- The ABS/TCS disables.
- The amber ABS/TCS indicator(s) turn on.

CONDITIONS FOR CLEARING THE DTC
- The condition responsible for setting the DTC no longer exists and the scan tool Clear DTCs function is used.
- 100 ignition cycles pass with no DTC(s) detected.

DIAGNOSTIC AIDS
- It is very important that a thorough inspection of the wiring and connectors be performed. Failure to carefully and fully inspect wiring and connectors may result in misdiagnosis, causing part replacement with reappearance of the malfunction.
- Thoroughly inspect any circuitry that may be causing the complaint for the following conditions:
- Backed out terminals
- Improper mating
- Broken locks
- Improperly formed or damaged terminals
- Poor terminal-to-wiring connections
- Physical damage to the wiring harness

- The following conditions may cause an intermittent malfunction:
- A poor connection
- Rubbed-through wire insulation
- A broken wire inside the insulation

- If the customer's comments reflect that the amber ABS/TCS indicator is on only during moist environmental conditions (rain, snow, vehicle wash), inspect all the wheel speed sensor circuitry for signs of water intrusion. If the DTC is not current, clear all DTCs and simulate the effects of water intrusion by using the following procedure:
1. Spray the suspected area with a five percent saltwater solution.
Add two teaspoons of salt to twelve ounces of water to make a five percent saltwater solution.
2. Test drive the vehicle over various road surfaces (bumps, turns, etc.) above 40 km/h (25 mph) for at least 30 seconds.
3. If the DTC returns, replace the suspected harness.

- If an intermittent malfunction exists refer to General Electrical Diagnosis Procedures in Diagnostic Aids for further diagnosis.

FRONT WHEEL SPEED SENSOR RESISTANCE

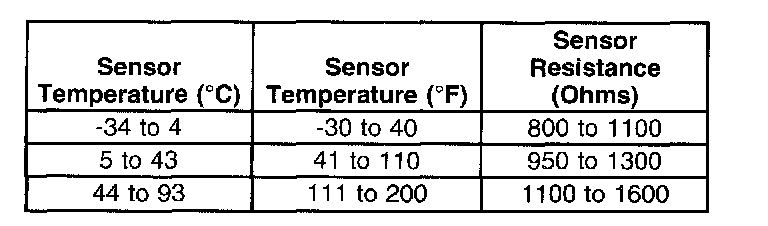

The following table contains resistance values for the front wheel speed sensors at varying sensor temperatures for use in diagnosis. The values are approximate and should be used as a guideline for diagnosis.

TEST DESCRIPTION

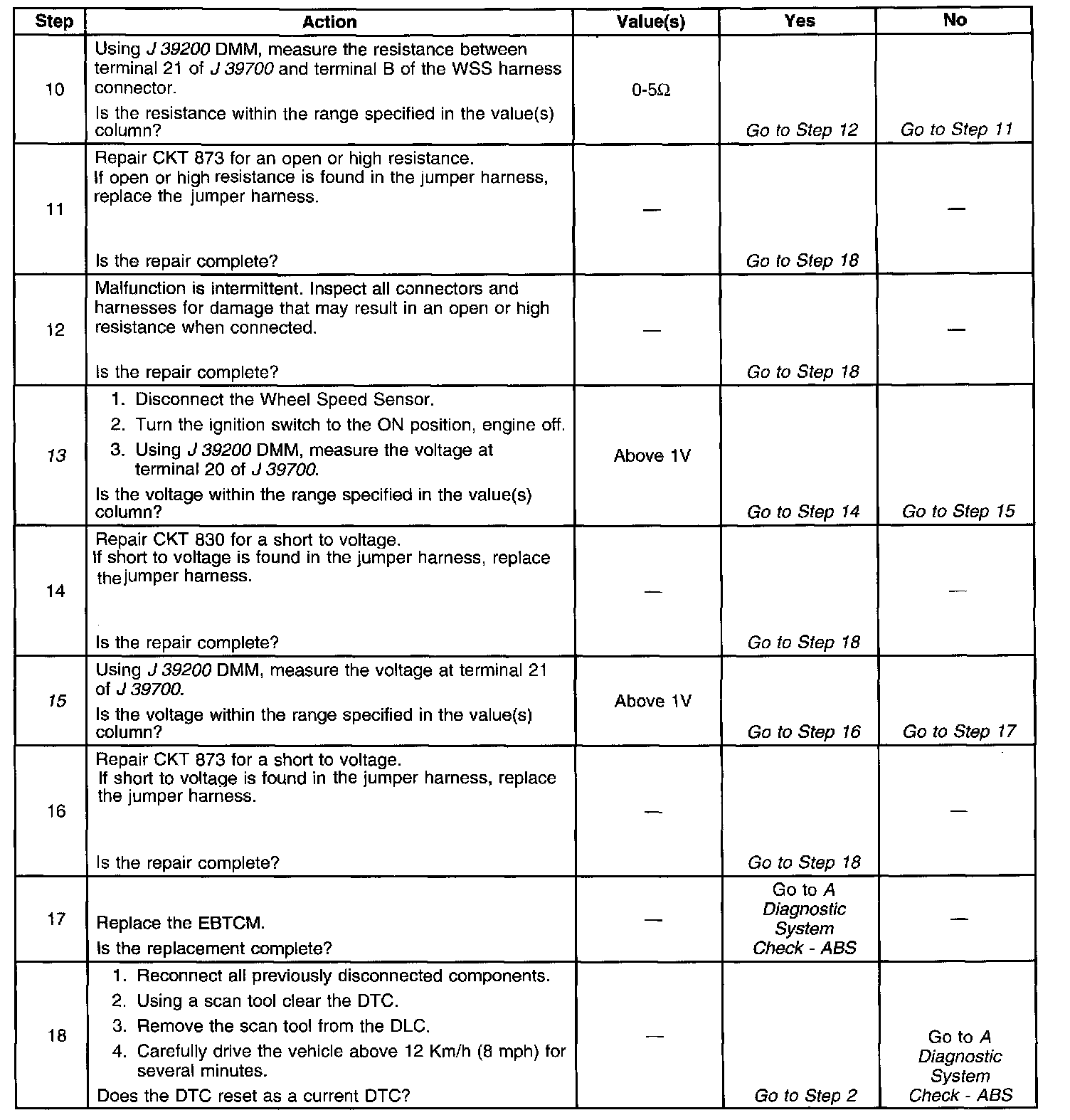

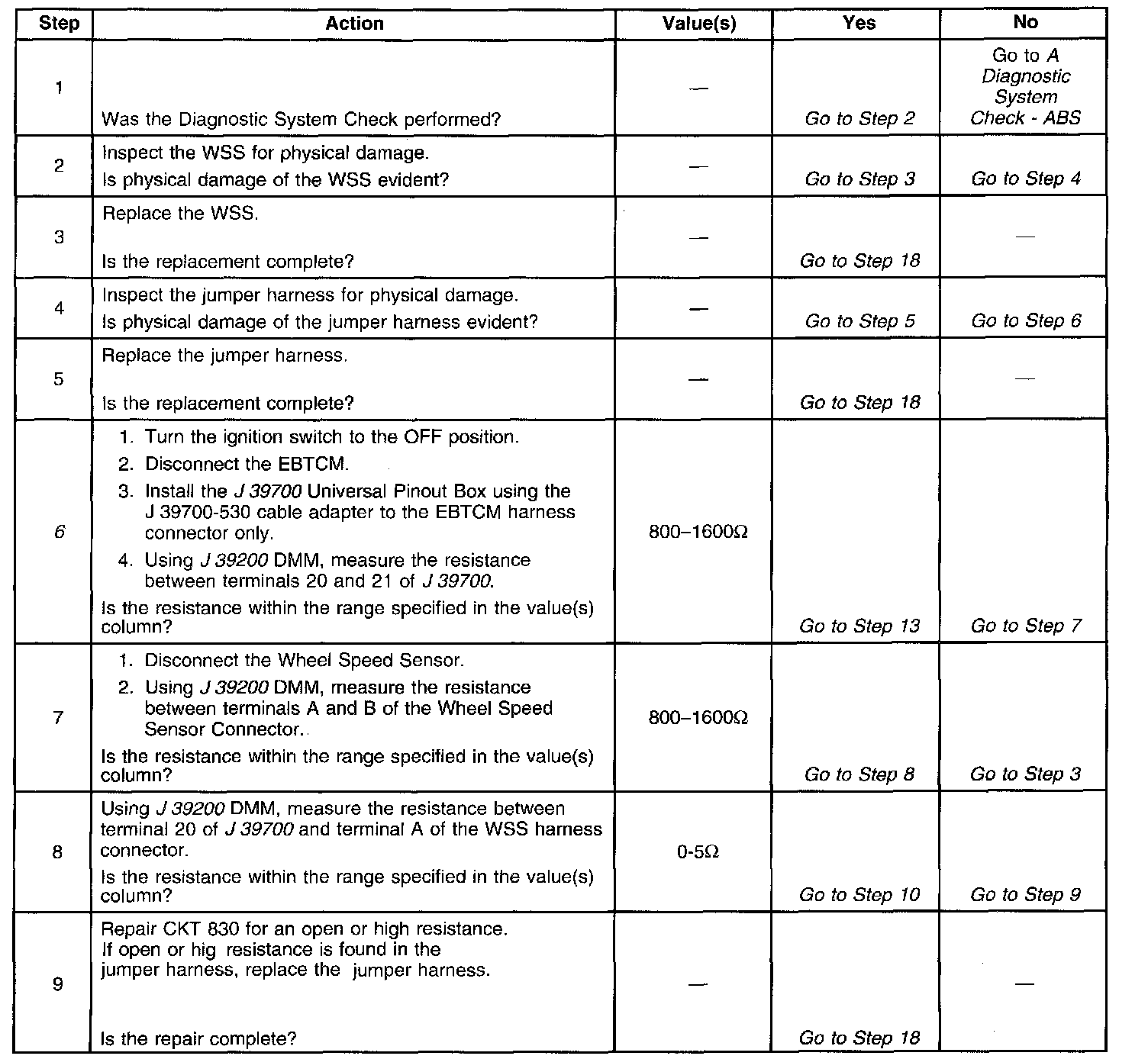

The numbers below refer to step numbers on the diagnostic table.
6. This step checks for an open in the WSS or WSS CKT.
13. Checks for a short to voltage in the WSS CKT.
15. Checks for a short to voltage in the WSS CKT.
