B2958

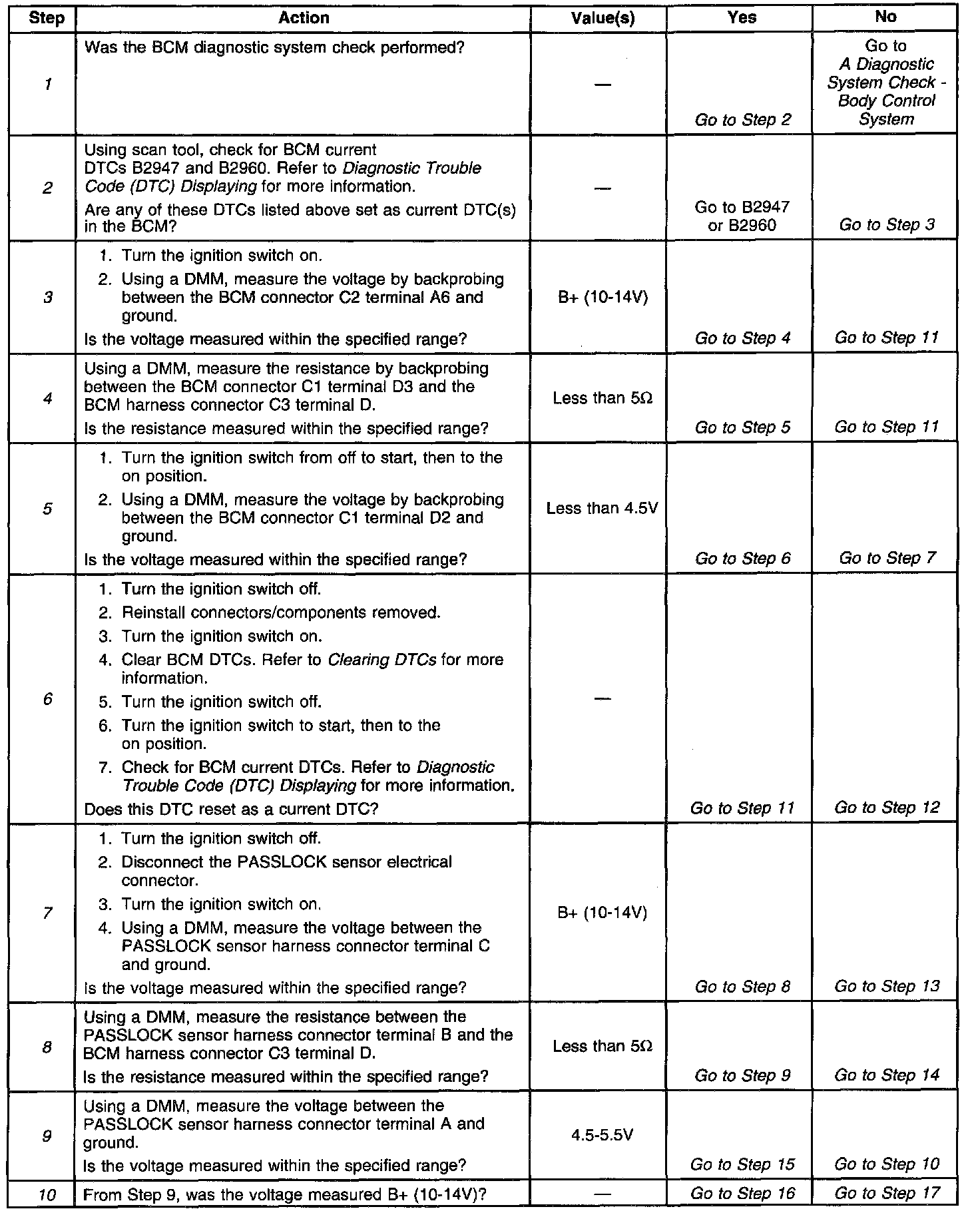

Diagnostic Trouble Code (DTC) Chart (Part 1 Of 2):

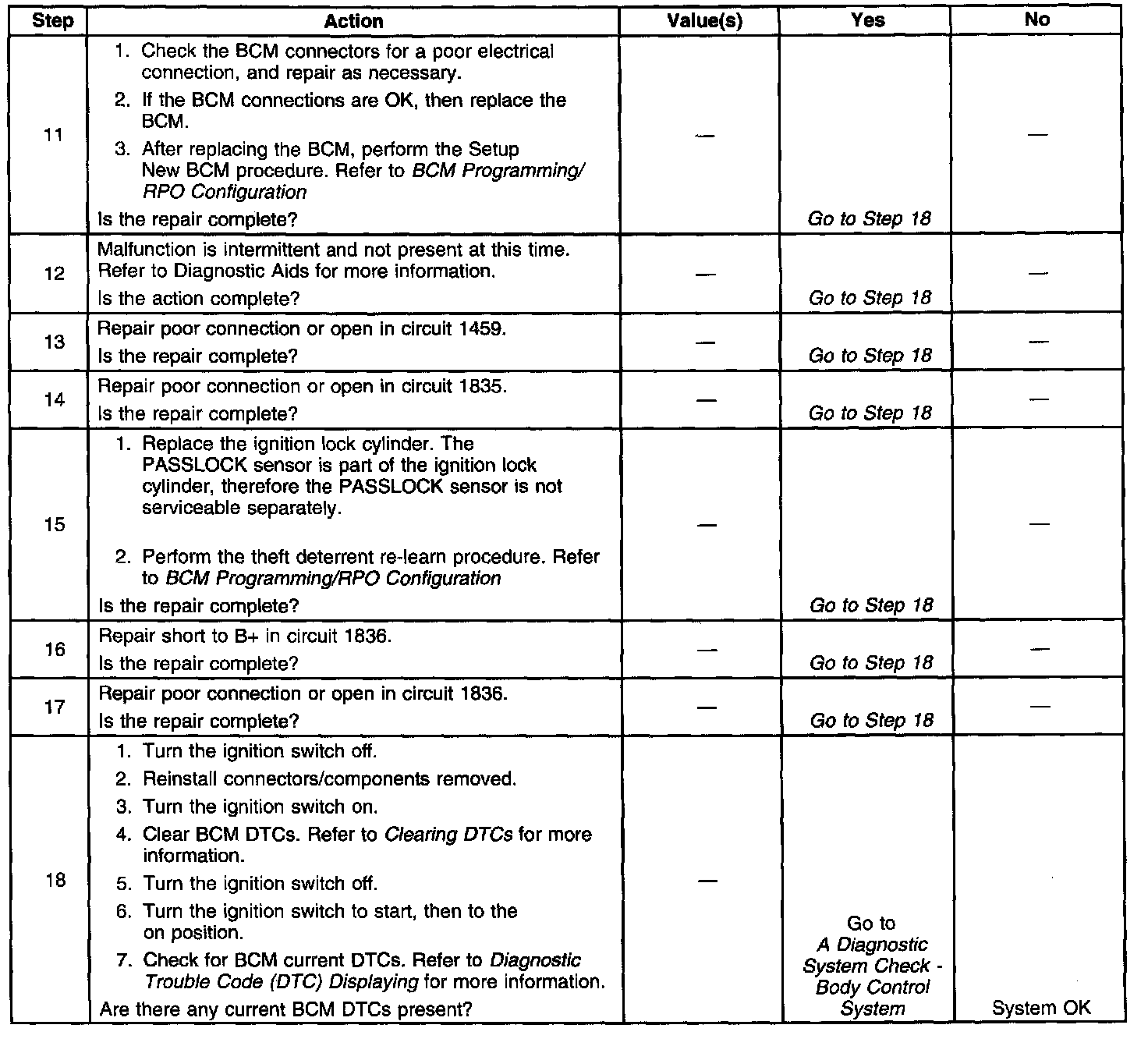

Diagnostic Trouble Code (DTC) Chart (Part 2 Of 2):

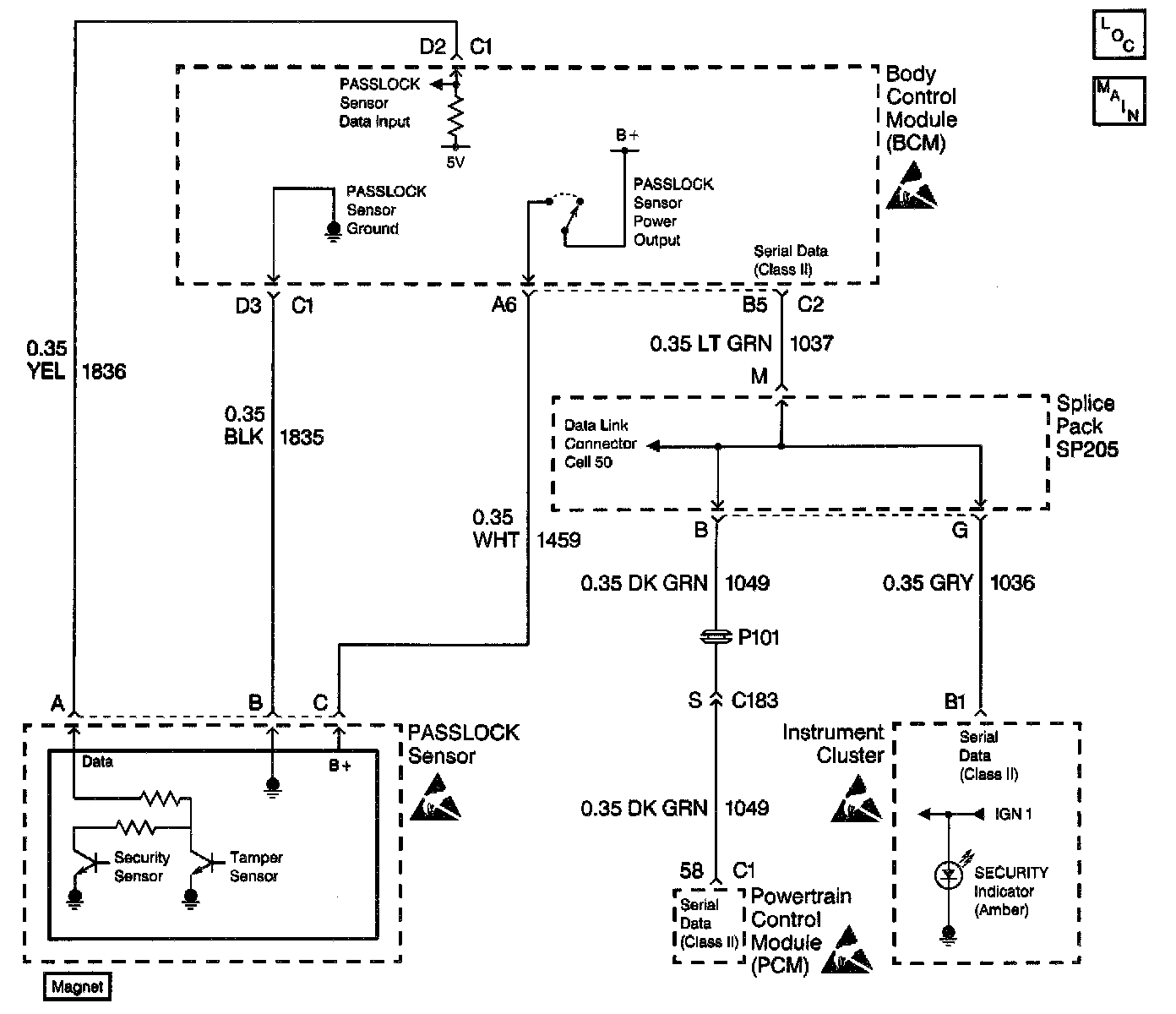

Wiring Schematic:

CIRCUIT DESCRIPTION
The Passlock theft deterrent system contains a Passlock sensor. The Passlock sensor is part of the ignition lock cylinder assembly. The Body Control Module (BCM) provides voltage (B+) to the Passlock sensor through circuit 145g when the ignition switch is in the accessory, on, or start. The BCM also provides ground to the Passlock sensor through circuit 1835. The Passlock sensor interfaces with the BCM through the Passlock detection circuit 1836.

When turning the ignition switch to the start position with the proper key, the Passlock sensor generates an analog voltage signal. This signal is sent through the Passlock detecting circuit. This analog voltage signal is of a specific value to the vehicle, and varies from vehicle to vehicle. When attempting to start the engine, the BCM compares a preset stored analog voltage value with the signal coming from the sensor. Because both values match, the BCM sends a fuel enable password via the Class II serial data link to the Powertrain Control Module (PCM). As a result, the PCM enables the crank relay, and allows fuel delivery to the engine.

When attempting to start the engine by means other than using the proper key in the ignition switch, the Passlock sensor sends an analog voltage signal of a different value. The BCM compares the preset stored analog voltage value with the signal coming from the sensor. Because both values do not match, the BCM sends a fuel disable password via the Class II serial data link to the Powertrain Control Module (PCM). As a result, the PCM disables the crank relay, and stops fuel delivery to the engine.

CONDITIONS FOR SETTING THE DTC
^ The BCM detects an open or a short to B+ in circuit 1836.
^ Condition must be present for 1 second anytime after the engine has started.

ACTIONS TAKEN WHEN THE DTC SETS
^ The BCM stores DTC B2958 in the BCM memory.
^ The BCM sends a message to the instrument cluster) to turn ON the SECURITY indicator.
^ The BCM enters fail-enable mode. Upon subsequent engine start attempts, the BCM will send a message to the PCM via Class II serial data link to enable the crank relay, and to deliver fuel to the engine. The engine will start.

CONDITIONS FOR CLEARING THE DTC
^ A current DTC B2958 clears when the BCM detects a valid Passlock sensor analog voltage signal on the Passlock detection circuit 1836.
^ A history DTC will clear after 100 consecutive ignition cycles if the condition for the malfunction is no longer present.
^ Using a scan tool. Refer to Clearing DTCs for more information. Testing and Inspection

DIAGNOSTIC AIDS
^ The following conditions may cause an intermittent malfunction to occur:
- An intermittent open or short to B+ in circuit 1836.
- An intermittent open in circuit 1835 or 1459.
- Poor connections at the BCM or the Passlock sensor electrical connector.
- A faulty Passlock sensor.
^ Check for poor connections at both the BCM and the ignition lock cylinder assembly, these could cause an open, incorrect Passlock sensor voltage signal, or intermittent malfunction. If the DTC is a history DTC, the problem may be intermittent. Try performing the tests shown while moving wiring, connectors, and the key, this can often cause the malfunction to appear.
^ DTC P1626 will set in the Powertrain Control Module (PCM) when the ignition switch is on with the Body Control Module (BCM) disconnected. When BCM diagnostics and repairs are completed, refer to A Powertrain On Board Diagnostic (OBD) System Check for additional information on PCM related DTCs in Computers and Control Systems Testing.

^ Perform the diagnostic table for this DTC when the vehicle experiences an engine no crank condition, with the SECURITY indicator ON steadily (after bulb check), and no BCM DTCs stored. This condition may be related due to an open or short to B+ in circuit 1836. The BCM monitors for an open or short to B+ in circuit 1836 causing to set this DTC only AFTER the BCM sampled a valid analog voltage signal from the Passlock sensor.

TEST DESCRIPTION
The number(s) below refer to the step number(s) on the diagnostic table.
1. Always perform the BCM diagnostic system check before attempting to diagnose this DTC.
2. Checks for DTCs indicating a circuit malfunction between the PASSLOCK sensor and the BCM.
3. Checks for a faulty BCM not sending power to the PASSLOCK sensor.
4. Checks for a faulty BCM or connector not grounding the PASSLOCK sensor.
5. Checks for a faulty PASSLOCK sensor.
6. Checks for a faulty BCM.
7. Checks for an open in circuit 1459.
8. Checks for an open in circuit 1835.
9. Determines whether there is an open or short to B+ in circuit 1836, or the PASSLOCK sensor is faulty.
10. Checks for either an open or short to B+ in circuit 1836.
