B2418

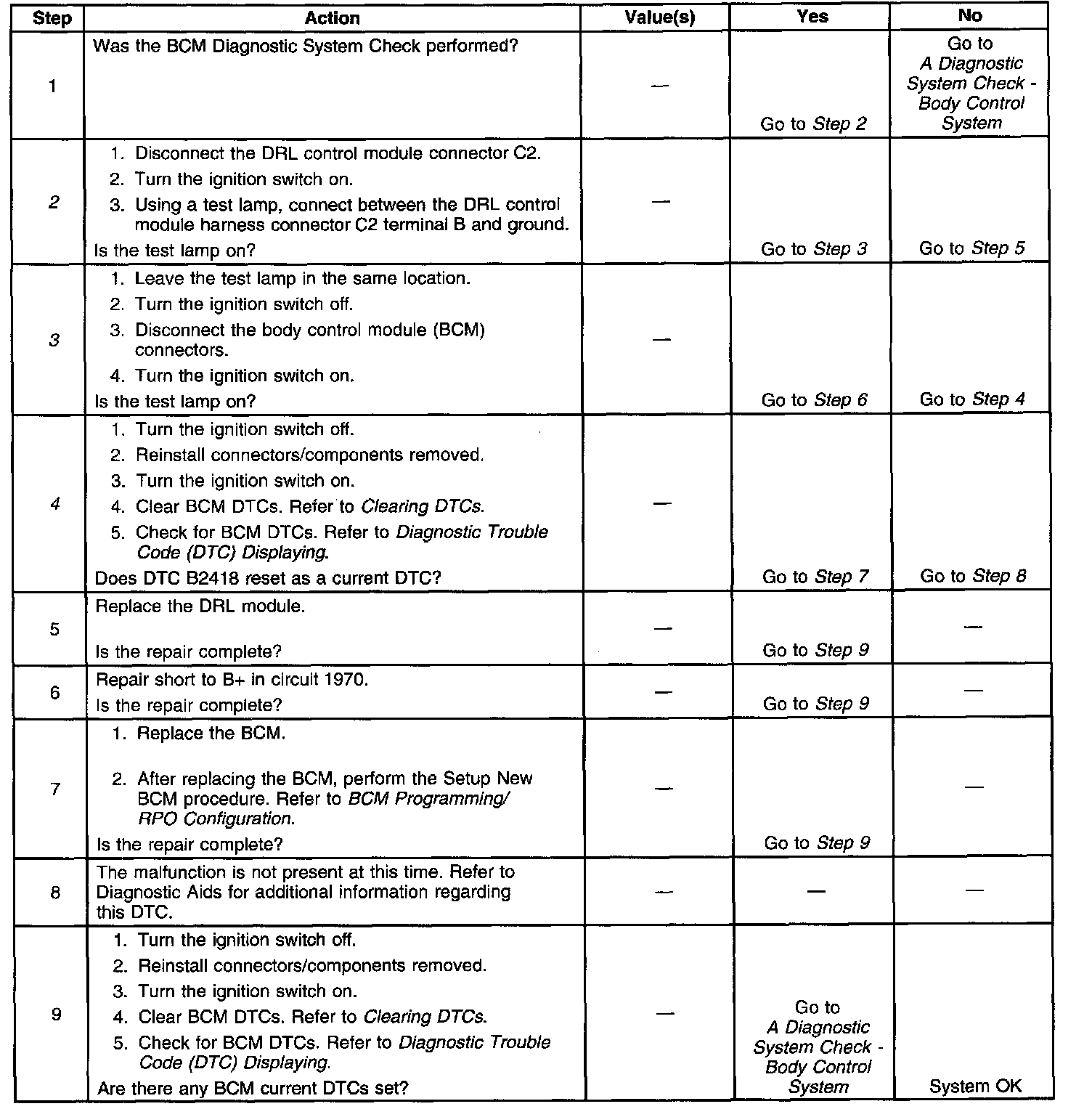

Diagnostic Trouble Code (DTC) Chart:

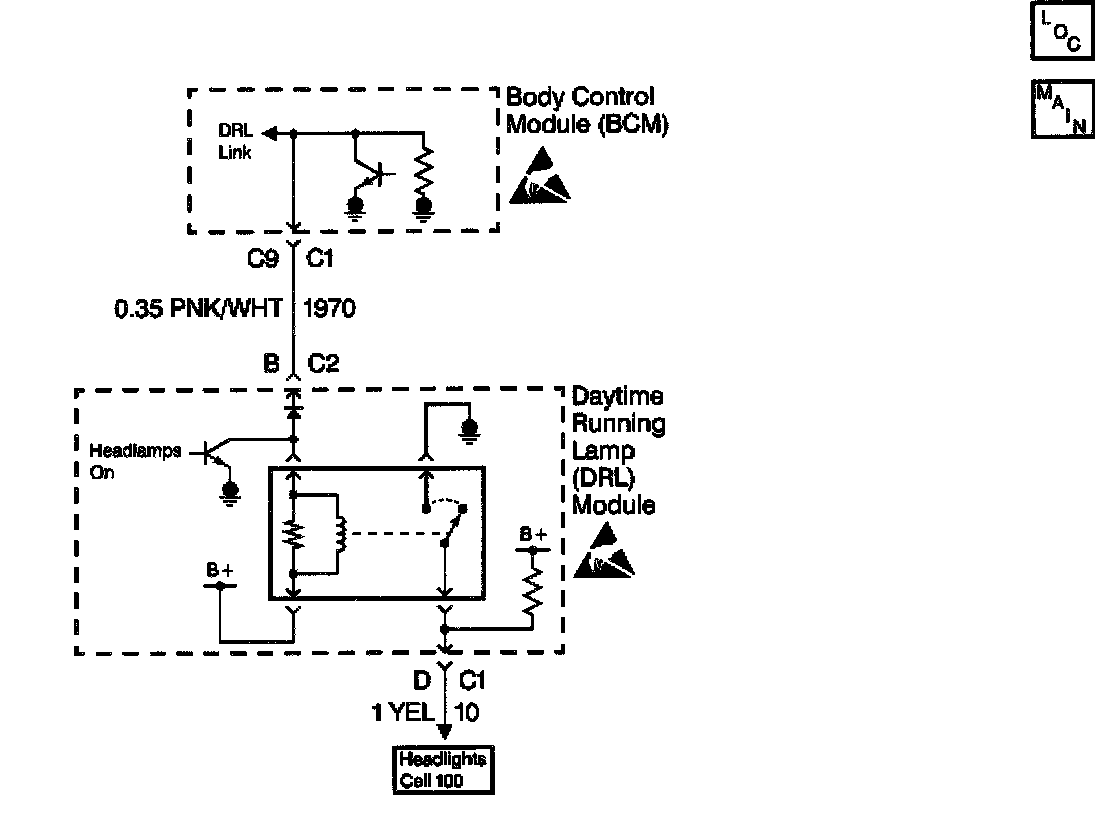

Wiring Schematic:

CIRCUIT DESCRIPTION
The BCM interfaces with the DRL control module through circuit 1970 to determine the ambient light operation mode. The BCM communicates this information to the instrument cluster through the Class II serial data link.

CONDITIONS FOR SETTING THE DTC
The BCM detects a short to B+ in circuit 1970.

ACTIONS TAKEN WHEN THE DTC SETS
^ The BCM stores DTC B2418 in memory.
^ The BCM turns off its output to the DRL module.

CONDITIONS FOR CLEARING THE DTC
^ When the ignition switch is turned from off to on, a current DTC B2418 is always cleared.
^ A history DTC will clear after 100 consecutive ignition cycles if the condition for the fault is no longer present.
^ Using a scan tool.

DIAGNOSTIC AIDS
^ The BCM sets DTC B2418 as a current DTC only if the short to B+ occurs while the BCM is in the twilight sentinel mode.
^ Check fuses for a possible open fuse, indicating that the circuit(s) protected by such fuse is contacting circuit 1970.
^ The following conditions may cause an intermittent malfunction to occur:
- An intermittent short to B+ in circuit 1970.
- The BCM is shorted to B+ internally.
- The DRL module is shorted to B+ internally.
^ If the DTC is a history DTC, the problem may be intermittent. Try performing the tests shown while wiggling wiring and connectors, this can often cause the malfunction to reappear.
^ DTC P1626 will set in the Powertrain Control Module (PCM) when the ignition switch is on with the Body Control Module (BCM) disconnected. When BCM diagnostics and repairs are completed, refer to A Powertrain On Board Diagnostic (OBD) System Check for additional information on PCM related DTCs in Computers and Control Systems Testing.

TEST DESCRIPTION
The numbers below refer to the step numbers on the diagnostic table.
2. This step checks for a short to B+ in circuit 1970.
3. This step checks whether circuit 1970 has a short to B+ or the BCM is faulty.
4. This step determines whether the malfunction is intermittent or the BCM is faulty.
