B0367

DTC B0446 Right Actuator Out Of Range:

DTC B0367 Right Actuator Feedback Open:

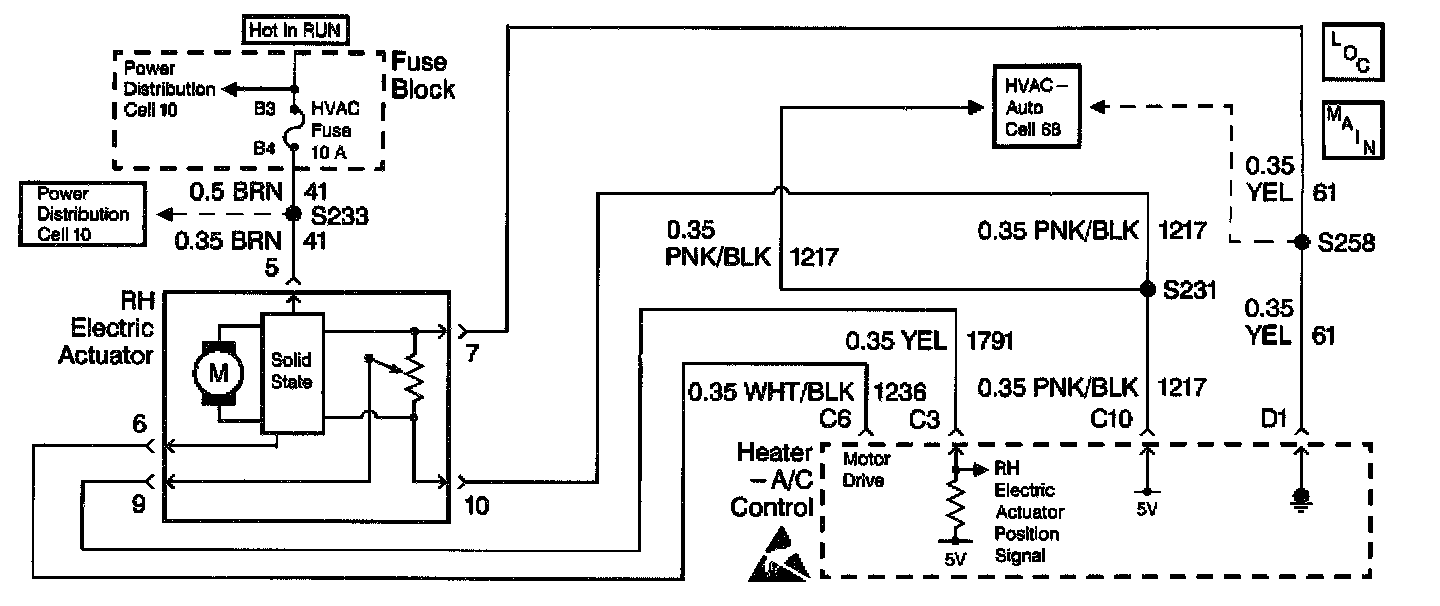

CIRCUIT DESCRIPTION
The heater-A/C control receives a right electric actuator position signal from the right electric actuator. The right electric actuator position sensor is a potentiometer that is tied to a 5 V source through circuit 1217 (PNK/BLK) and to ground through circuit 61 (YEL), both from the heater-A/C control. The variable output from the potentiometer feeds back a position signal through circuit 1791 (YEL) to a pull-up resistor in the heater-A/C control. This signal relates to the position of the right electric actuator. This signal is used in order to determine the necessary drive signal to the right electric actuator motor in order to provide the proper air mix door position.

CONDITIONS FOR SETTING THE DTC
The heater-A/C control performs an internal check on the right electric actuator position and determines that circuit 1791 (YEL) is open.

ACTION TAKEN WHEN THE DTC SETS
The heater-A/C control stores DTC B0367 in memory.

CONDITIONS FOR CLEARING THE DTC
^ An open is no longer present in circuit 1791 (YEL).
^ Under all fault conditions, the ignition switch must be cycled from on to off, back to on before this DTC can change from current to history.
^ A history DTC will clear after 100 drive cycles if the condition for this malfunction is no longer present.
^ Using a scan tool

DIAGNOSTIC AIDS
An open in circuit 1217 (PNK/BLK) or circuit 1791 (YEL) may cause DTC B0367 to set.

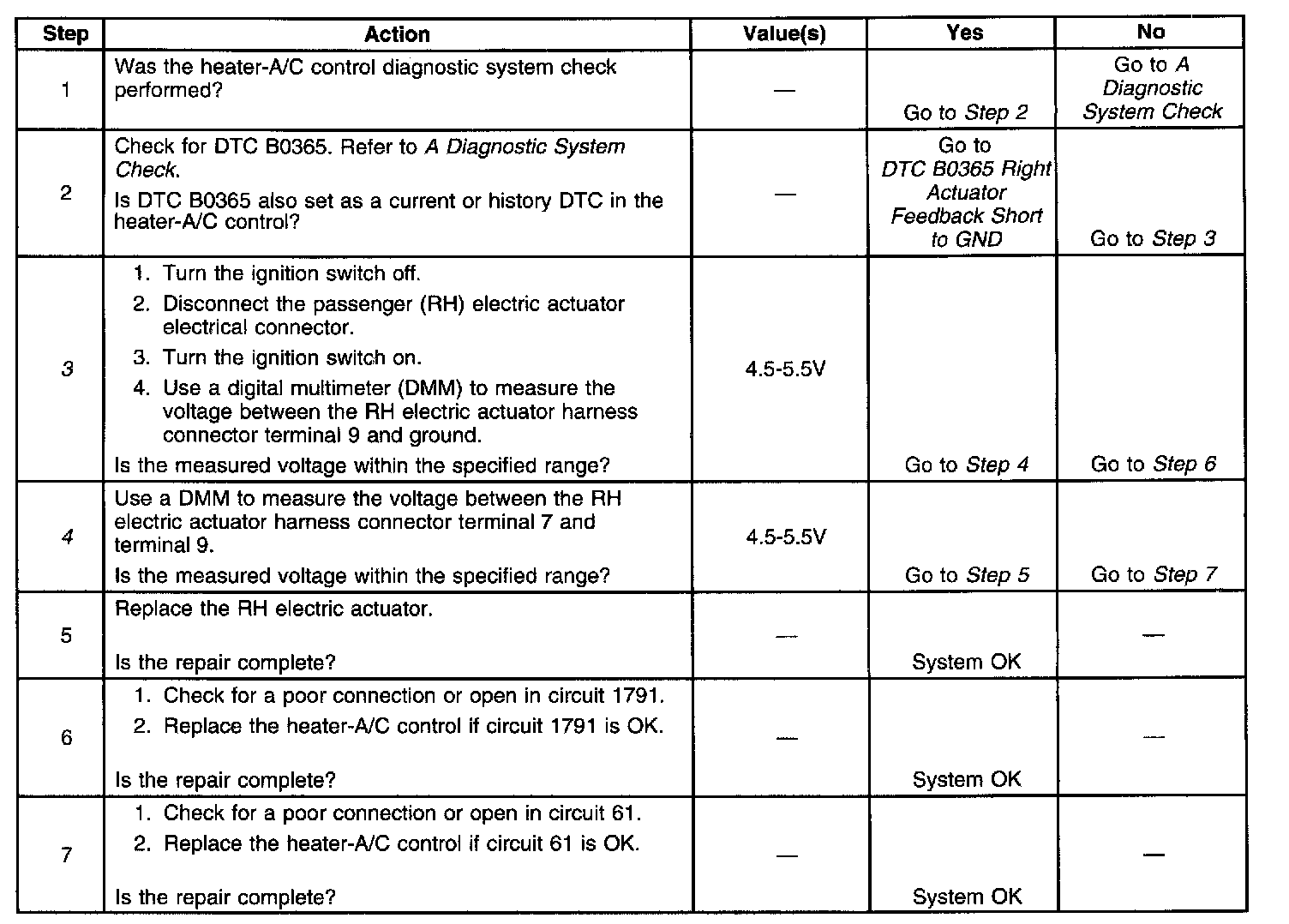

TEST DESCRIPTION
The number(s) below refer to the step number(s) on the diagnostic table.
3. This test checks if the heater-A/C control 5 V supply is getting through circuit 1791 (YEL).
4. This test checks if the heater-A/C control ground is getting through circuit 61 (YEL).
