B0361

DTC B0361 Left Actuator Feedback Short To GND:

CIRCUIT DESCRIPTION
The heater-A/C control receives a left electric actuator position signal from the left electric actuator. The left electric actuator position sensor is a potentiometer that is tied to a 5 V source through circuit 1217 (PNK/BLK) and to ground through circuit 61 (YEL), both from the heater-A/C control The variable output from the potentiometer feeds back a position signal through circuit 1218 (BRN/WHT) to a pull-up resistor in the heater-A/C control. This signal relates to the position of the left electric actuator. This signal is used in order to determine the necessary drive signal to the left electric actuator motor in order to provide the proper air mix door position.

CONDITIONS FOR SETTING THE DTC
The heater-A/C control performs an internal check on the left electric actuator position and determines that circuit 1218 (BRN/WHT) is shorted to B+ or shorted to ground.

ACTION TAKEN WHEN THE DTC SETS
The heater-A/C control stores DTC B0361 in memory.

CONDITIONS FOR CLEARING THE DTC
^ A short to B+ or short to ground is no longer present in circuit 1218 (BRN/WHT).
^ Under all fault conditions, the ignition switch must be cycled from on to off, back to on before this DTC can change from current to history.
^ A history DTC will clear after 100 drive cycles if the condition for this malfunction is no longer present.
^ Using a scan tool

DIAGNOSTIC AIDS
The following conditions may cause DTC B0361 to set:
^ A short to ground in circuit 1217 (PNK/BLK) or circuit 1218 (BRN/WHT).
^ A short to B+ in circuit 61 (YEL), circuit 1217 (PNK/BLK), or circuit 1218 (BRN/WHT)
^ An open in circuit 1217 (PNK/BLK) or circuit 1218 (BRN/WHT)

TEST DESCRIPTION

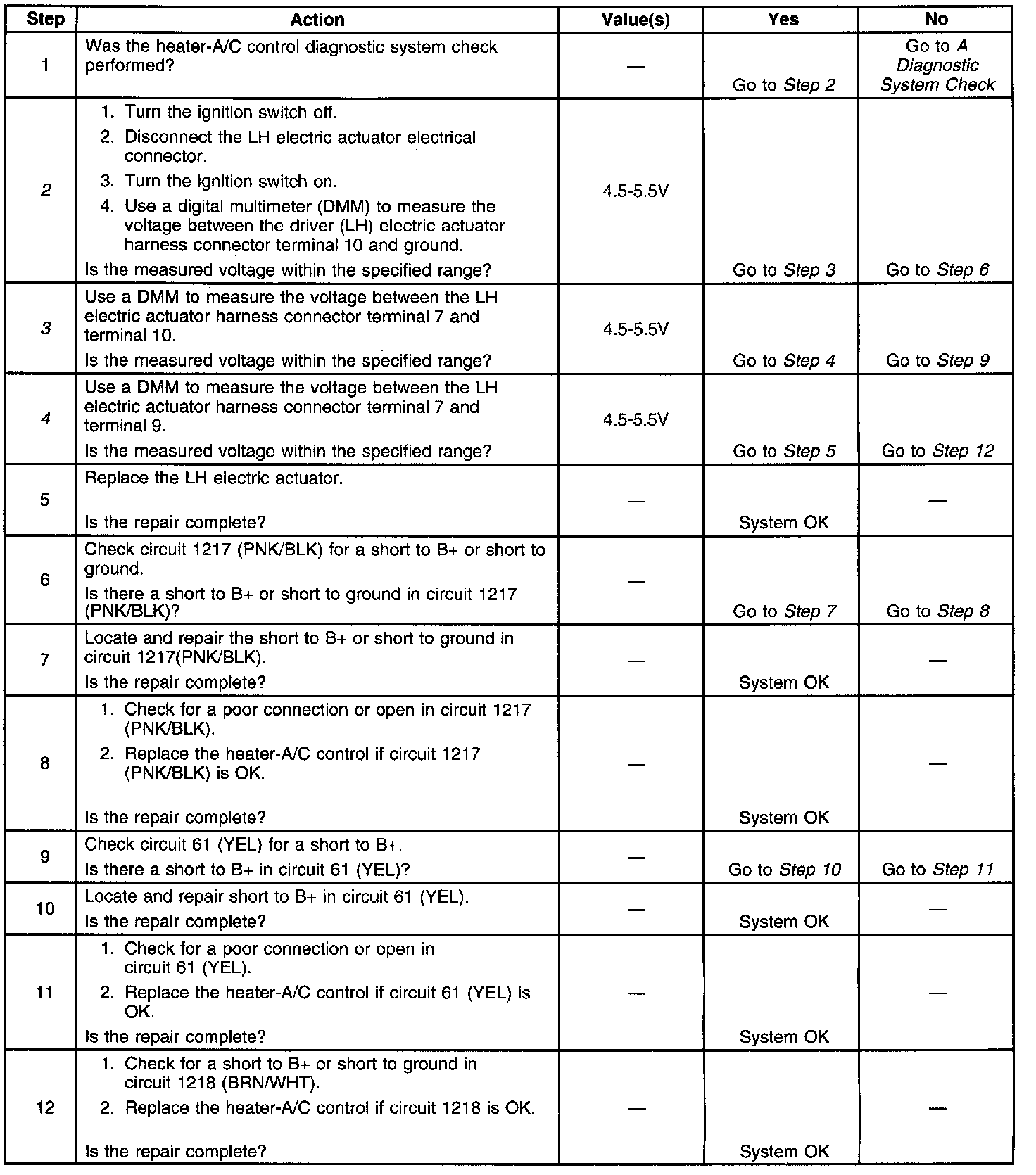

The number(s) below refer to the step number(s) on the diagnostic table.
2. This test checks if the heater-A/C control 5 V supply is getting through circuit 1217 (PNK/BLK).
3. This test checks if the heater-A/C control ground is getting through circuit 61.
4. This test checks if the heater-A/C control 5 V supply is getting through circuit 1218 (BRN/WHT).
