Relay/Fuse Center Replacement

Relay/Fuse Center Replacement




REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Remove the end cap from the instrument panel.

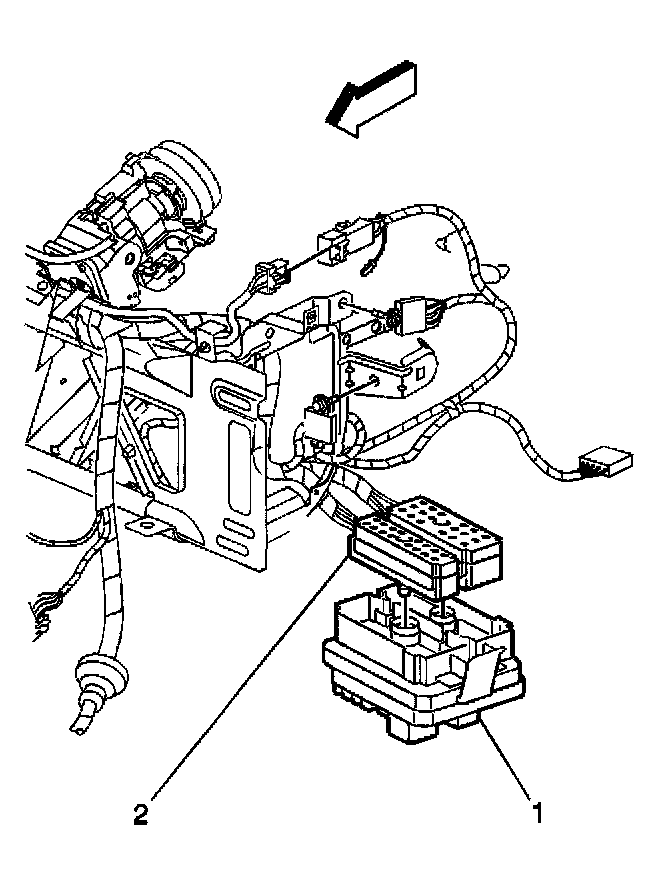

3. Unsnap the underhood junction block (1) from the bracket.
4. Disconnect the harness (2) from the underhood junction block (1).

INSTALLATION PROCEDURE
1. Connect the harness (2) to the underhood junction block (1).
2. Snap the underhood junction block (1) to the bracket.
3. Install the end cap to the instrument panel.
4. Connect the negative battery cable.
