Home >> Oldsmobile >> 1999 >> Cutlass V6-3.1L VIN J >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Motor >> Power Window Switch C2, Left Front

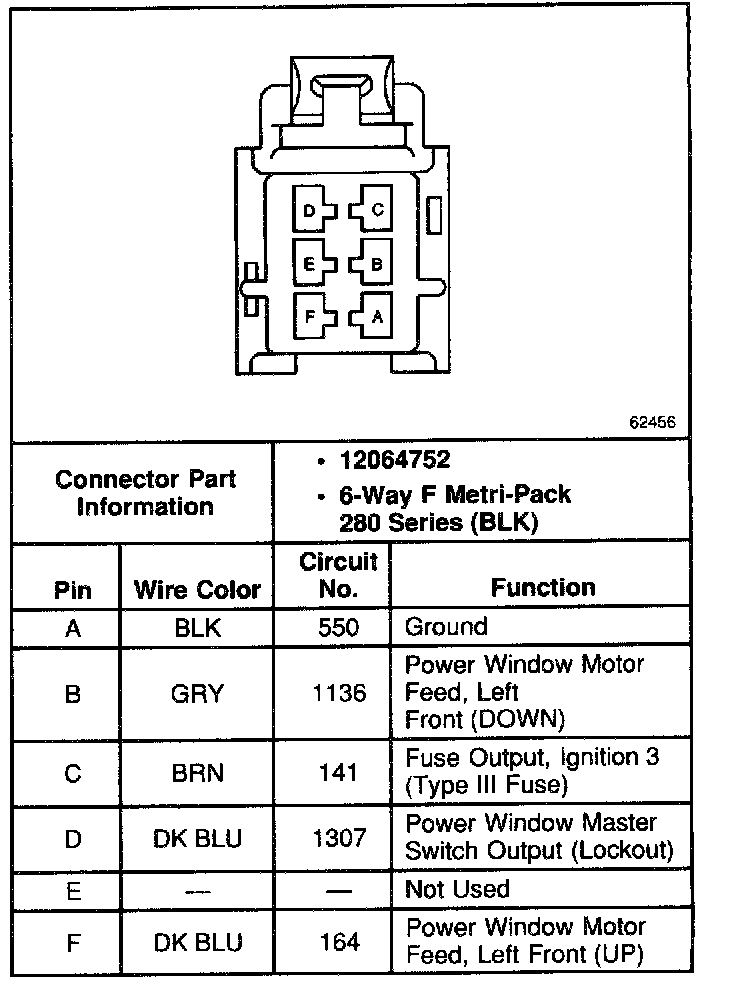

Power Window Switch C2, Left Front

Power Window Switch C2, Left Front:
