Heater A/C Control Assembly C1
Heater A/C Control Assembly C1

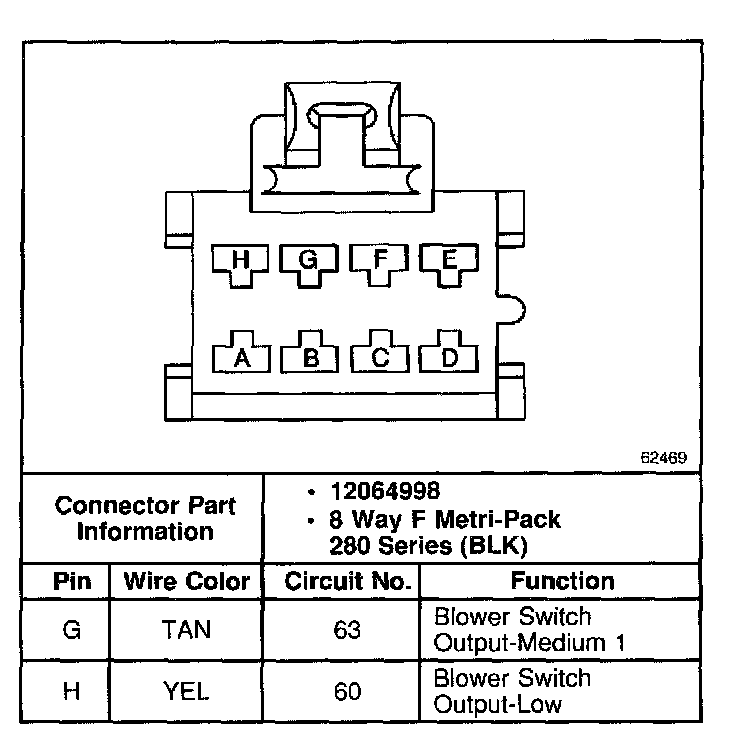

Heater A/C Control Assembly C1 (Part 1 Of 2):

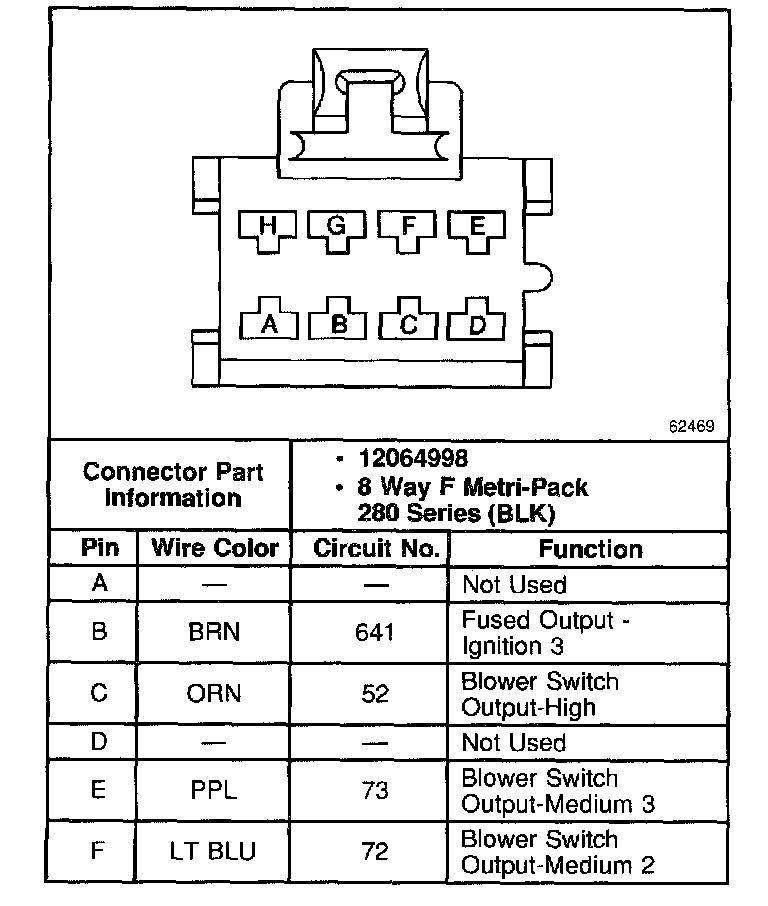

Heater A/C Control Assembly C1 (Part 2 Of 2):
