IP Junction Block, Right

Locations Views:

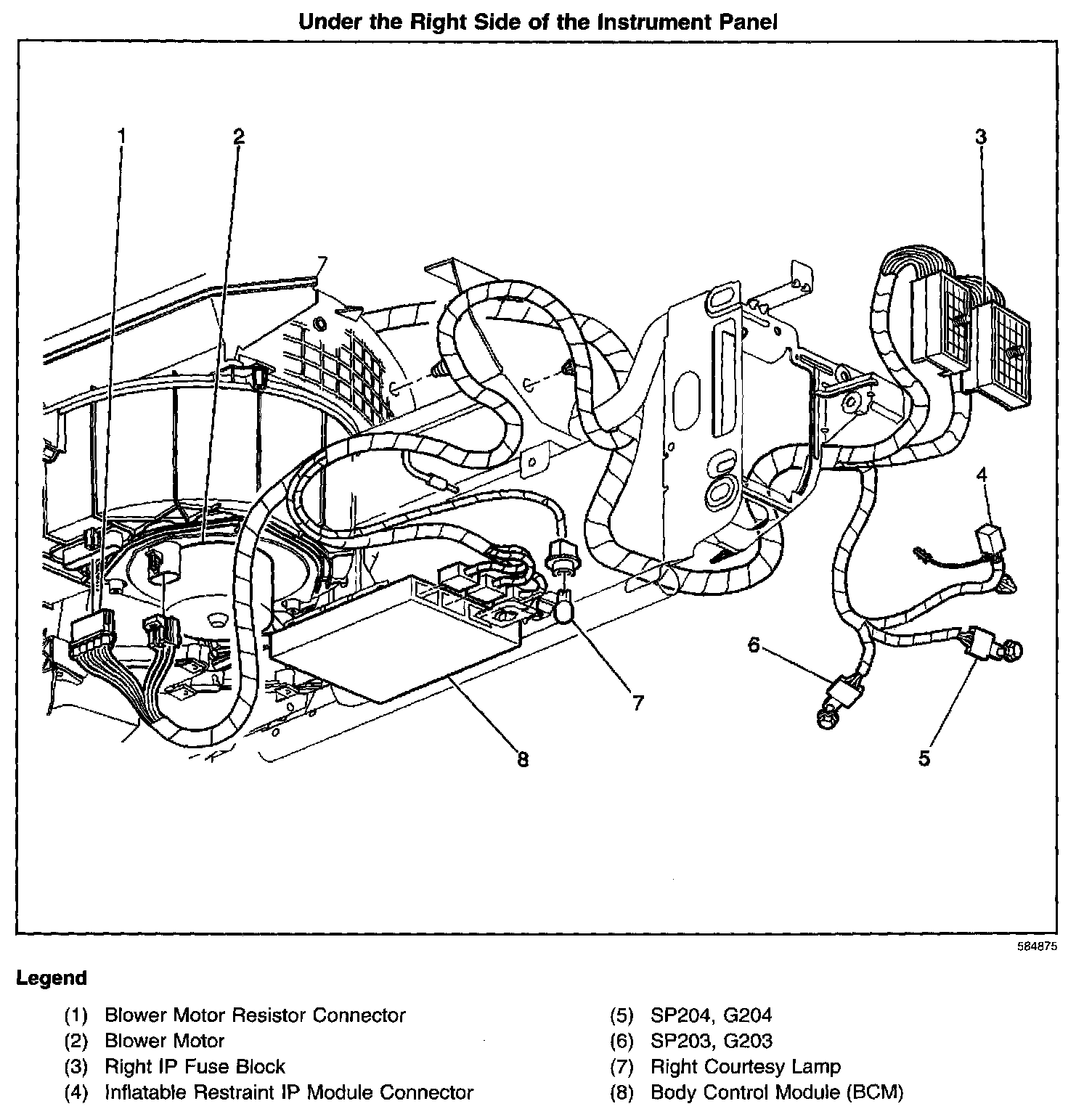

Locations View:





In the right side of the passenger compartment

On the right side of the IP
