Front Door Window Glass Weatherstrip: Service and Repair

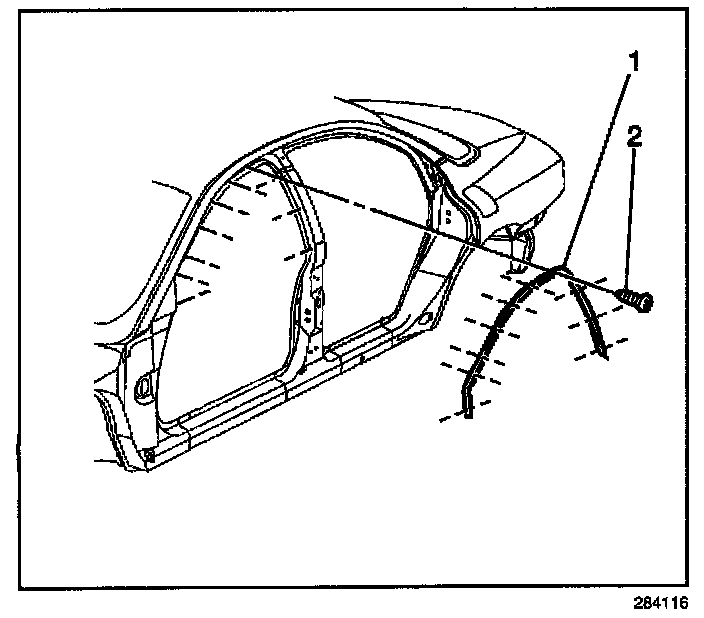

REMOVAL PROCEDURE




1. Remove the weatherstrip from the retainer (1).
2. Remove the screws (2) from the retainer (1).
3. Remove the retainer (1).

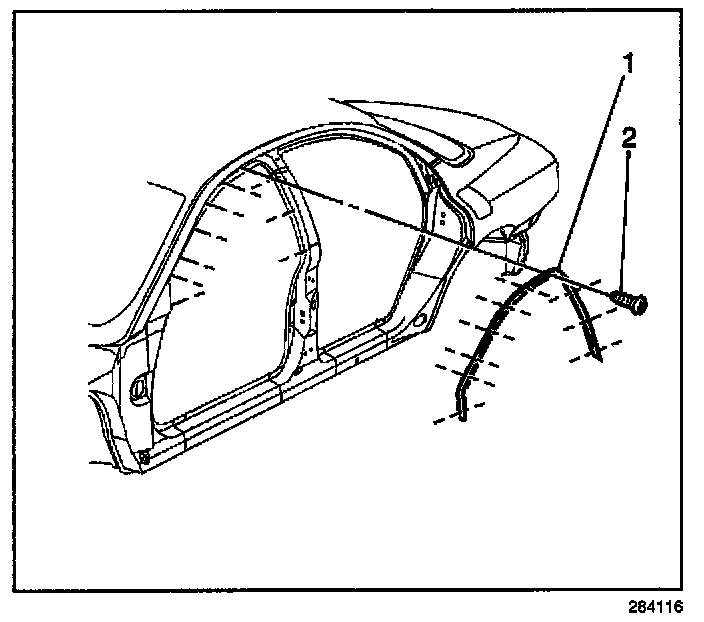

INSTALLATION PROCEDURE




1. Install the retainer (1).
2. Install the screws (2).
3. Install the weatherstrip.
