Glass Fore/AFT Adjustment

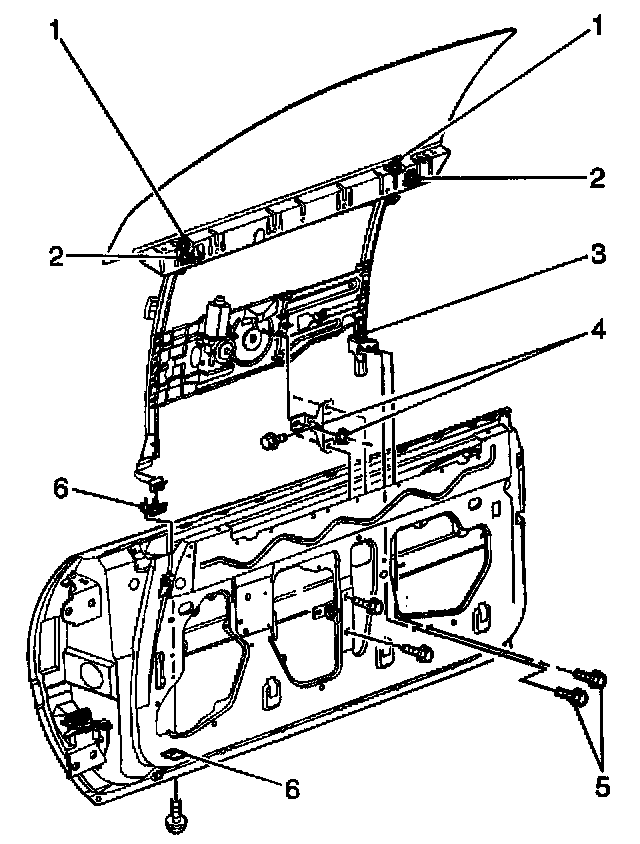

1. Mark the following adjustments:
^ The top fore/aft adjustments (1)
^ The bottom fore/aft adjustments (5)
2. Loosen the following components:
^ The top fore/aft adjustments (1)
^ The bottom fore/aft adjustments (5)
^ The stabilizer bracket fore/aft adjustment (4) nut
3. Holding the glass, push the glass forward or rearward as necessary in order to move the guidance system as a single assembly.
4. Tighten the top fore/aft adjustments (s).
5. Close the door.
6. Inspect the adjustments for movement.





IMPORTANT:

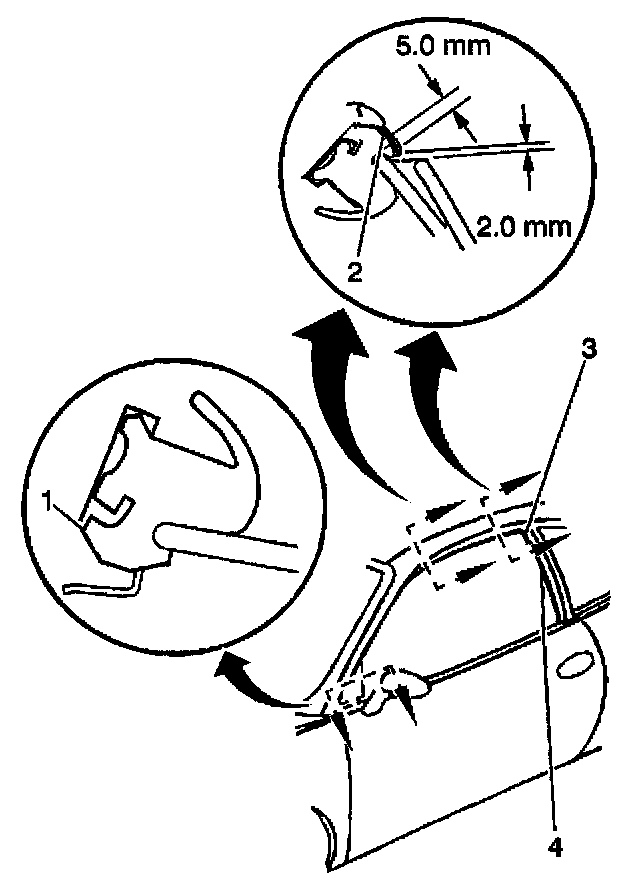

^ When moving the glass forward, ensure the door glass does not fold the seal lip (1) under the glass. This indicates the glass is too far forward.
^ When moving the glass rearward, ensure that the door glass top corner (3) does not come close to the rear pillar or the B pillar.
^ If the glass rubs the windshield pillar molding, the glass adjustment is too far forward.
7. Tighten all of the adjustments.

IMPORTANT: Do not slam the door. Air resistance may cause the glass to stand up slightly. This may result in a reduced clearance condition between the glass and the roof rail molding.

8. Close the door.
9. Inspect the door window for contact between the glass and the roof rail molding.
