Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Windows and Glass >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Diagrams >> Connector Views >> Power Window Switch, LH Rear

Power Window Switch, LH Rear

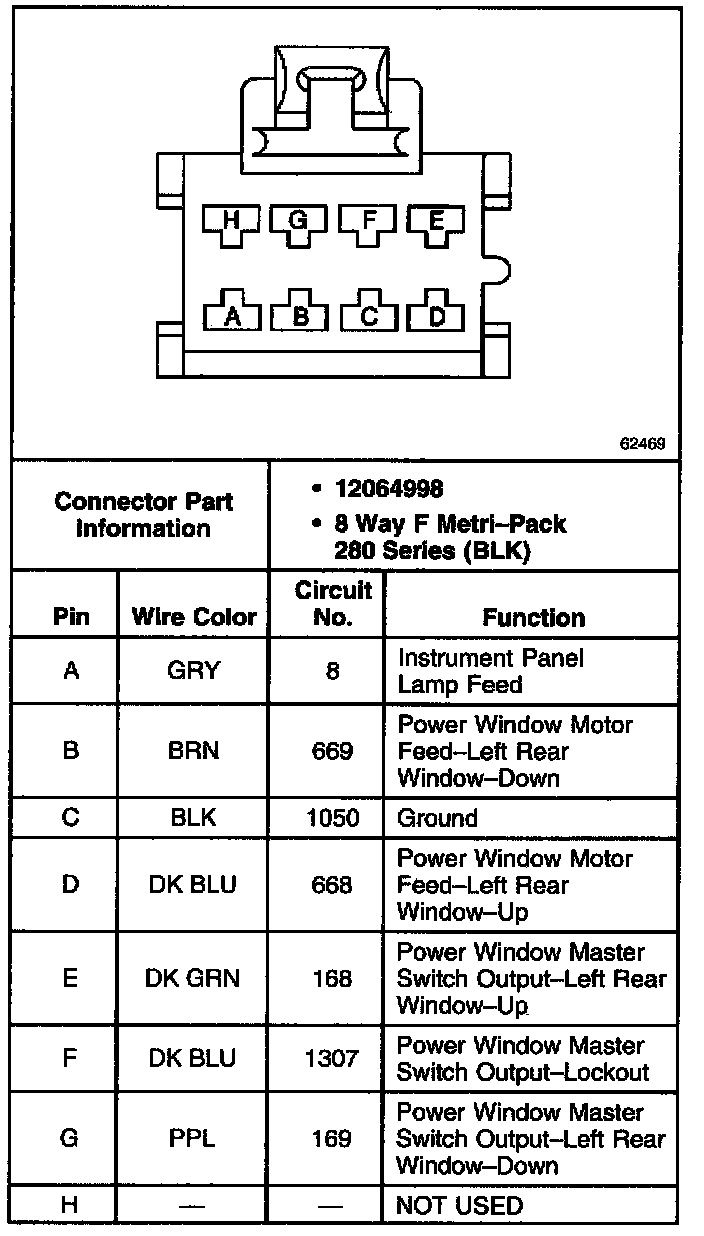

LH Rear Power Window Switch:
