Torque Converter Cover: Service and Repair

Removal Procedure
1. Raise the vehicle. Support the vehicle. Refer to Vehicle Lifting.

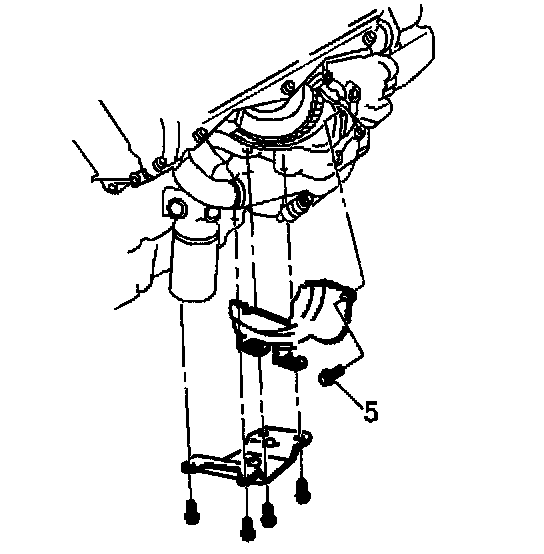

2. Remove the attaching bolts (5) and the engine-to-transmission brace.
3. Remove the torque converter cover.

Installation Procedure





1. Install the torque converter cover.

Notice: Refer to Fastener Notice in Service Precautions.

^ Tighten the cover bolt to 12 Nm (106 inch lbs.).

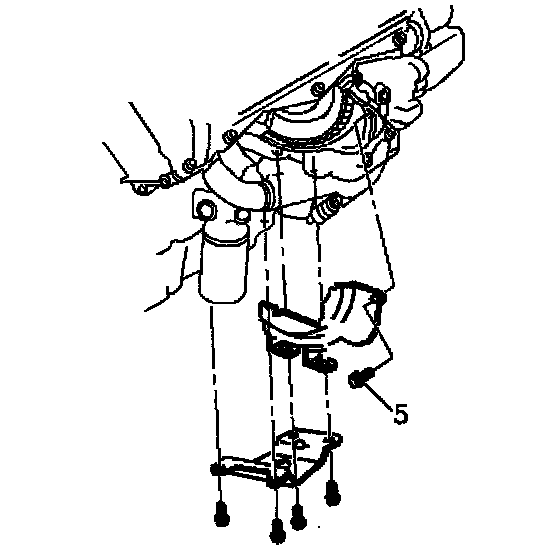

2. Install the engine-to-transmission brace and attaching bolts (5).
^ Tighten the bolts to 47 Nm (35 ft. lbs.).
3. Remove the safety stands.
4. Lower the vehicle.
