Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Component Tests and General Diagnostics >> TFP Manual Valve Position Switch Resistance Check

TFP Manual Valve Position Switch Resistance Check

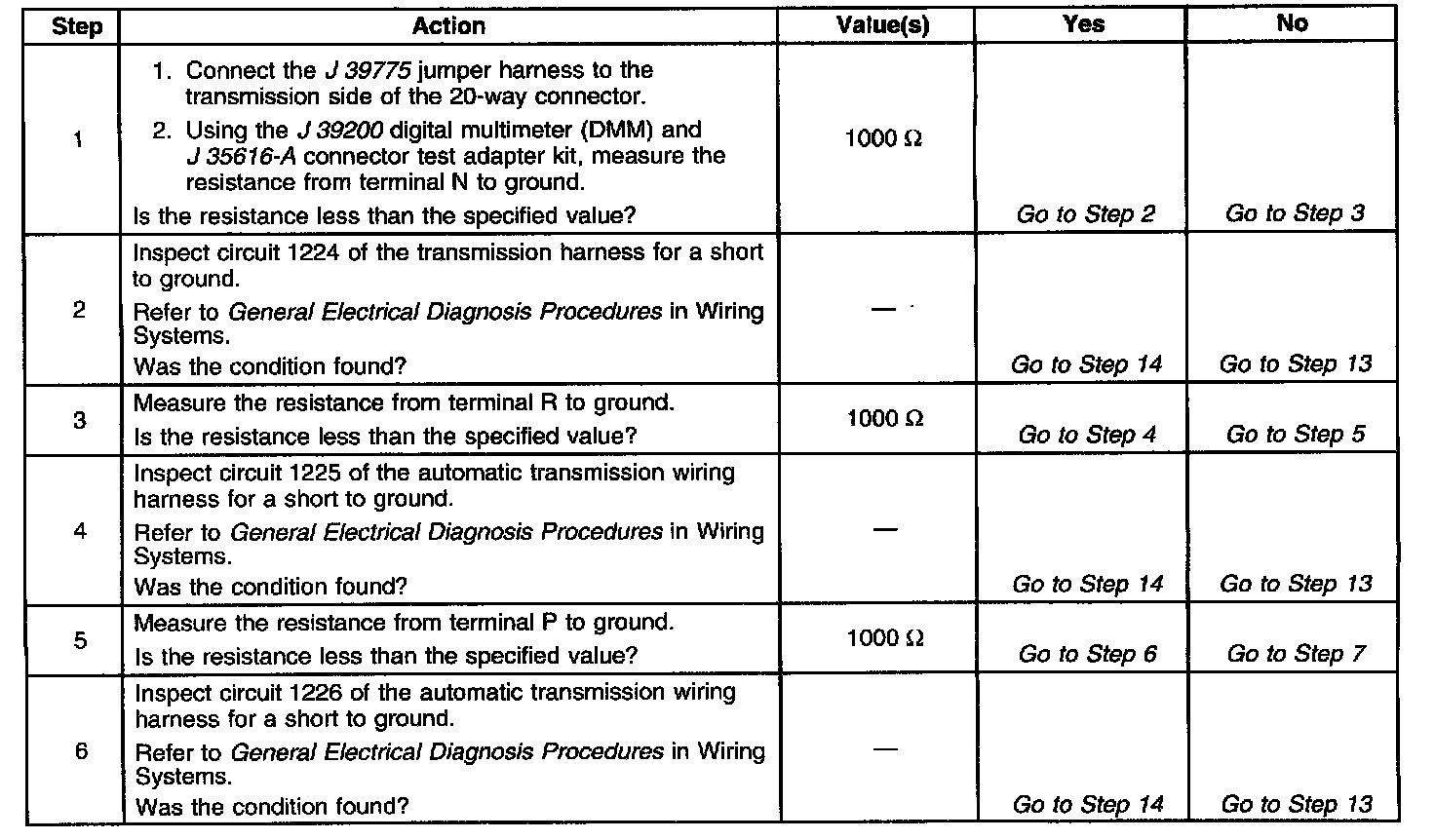

Part 1 Of 2:

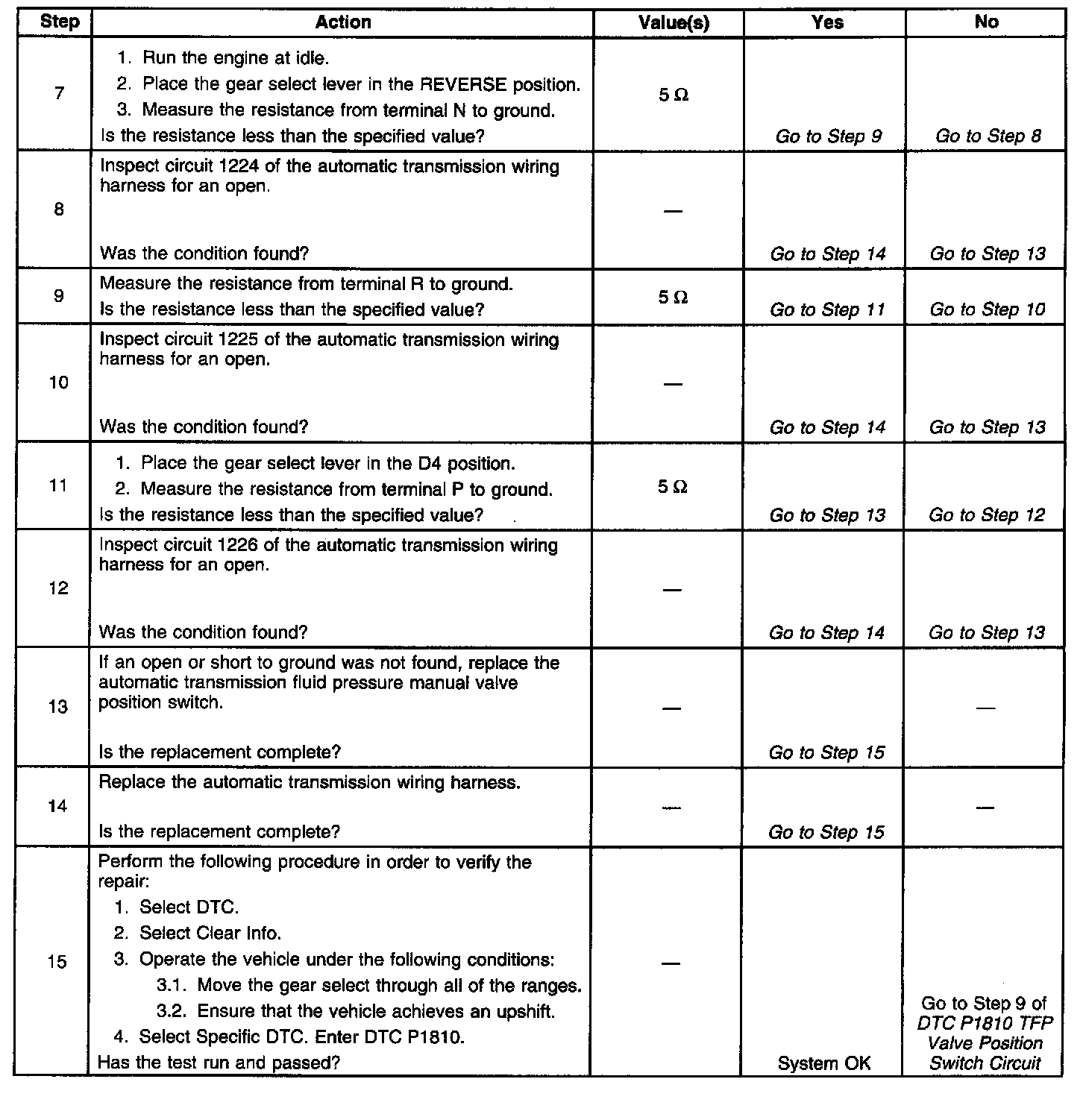

Part 2 Of 2:





TFP Manual Valve Position Switch Resistance Check
